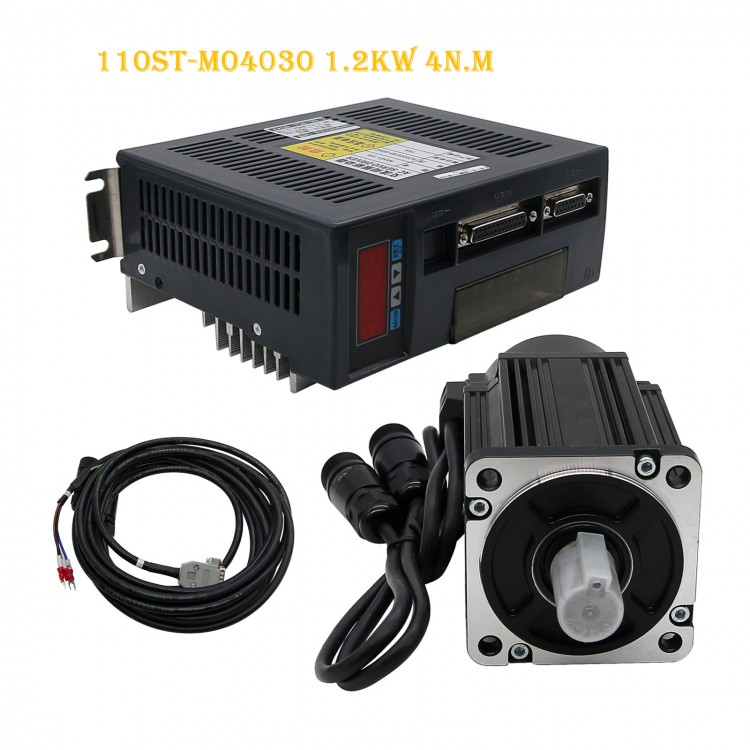

110ST-M04030 AC Servo Motor Kit 1.2KW 4N.M 220V + Driver + Cables Servo Motor Kit
Package Included:
- 1 x 220V 110ST-M04030 Servo Motor
- 1 x Match Servo Driver
- 1 x 3Meter Motor Cable
- 1 x 3Meter Encoder Cable
- 1 x 25-core Parallel Connector
- 1 x User Manual
Main Specifications:
- Model Number: 110ST-M04030
- Rated power: 1.2KW
- Rated voltage: 220V
- Rated current: 5.0A
- Rated speed: 3000RPM
- Rated Torque: 4N.M
- Peak Torque: 12 N.m.
- Voltage Constant: 54V/1000r/min
- Torque Coefficient: 0.8 N.m/A
- Torque Inertia: 0.54*10-3 Kg.m2
- Winding Resistance: 1.09 Ω
- Winding Inductance: 3.3mH
- Electrical Time Constant: 3.0ms
- Encoder Line Number: 2500
- Motor insulation class: Class B (130°C)
- Protection class: IP65
- Operating environment:
Ambient temperature: -20°C to 50°C
Relative humidity: <90 %( no condensation conditions)
Applications:
- CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.
Note:
Please contact us, if you need:
- Motor with Brake
- MODBUS communication function for RS-232 and RS-485
