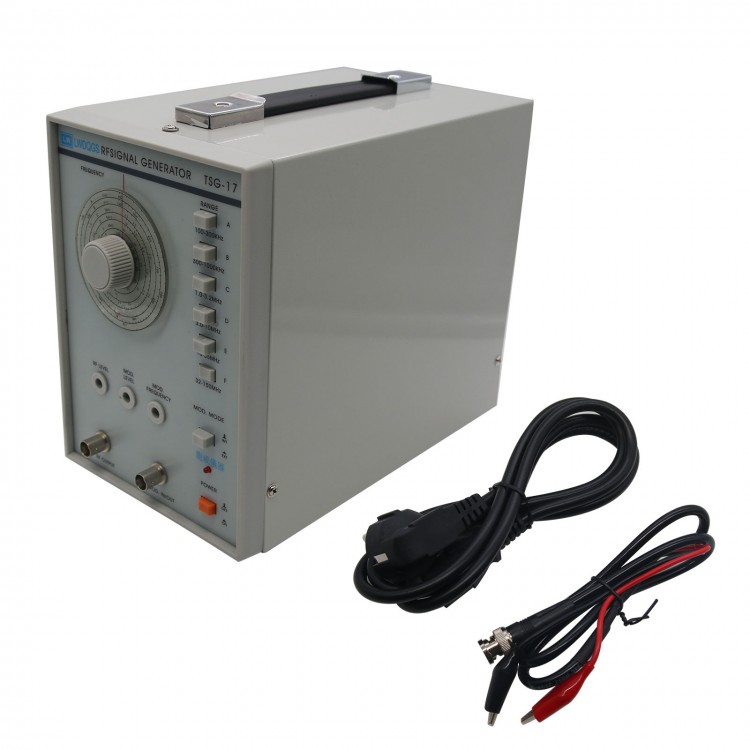

110V High Frequency Signal Generator RF Radio Frequency 100KHz-150MHz
Features:
- Assembled with imported components to ensure minimum accuracy deviation
- Signal Frequency: 100 kHz to 150MHz, third harmonic up to 450MHz
- Output Wave Form: sine and amplitude modulation wave
- Internal modulated signals can reach up to 80% or 100% in terms of over modulation within 1KHz
- RF/AM output, maximum signal intensity ≥10VP-P
- External modulated signal can be set between 50Hz to 20 KHz
Specifications:
- Frequency Ranges:
A: 100 KHz to 300 KHz;
B: 300 KHz to 1MHz;
C: 1MHz to 3.2MHz;
D: 3MHz to 10MHz;
E: 10MHz to 35MHz;
F: 32MHz to 150MHz
- Frequency Range: 100 KHz to 150MHz
- Frequency Accuracy: ±5%
- Output Waveform: RF/AM signal waveform
- Output Impedance: 600Ω
- 0utput Radio Frequency: ＞100Mvrms (when frequency≤35MHz)
- Level Control: 1mV to100mV
- External Modulation: 150Hz to 1.5 KHz. Adjustable amplitude from 0 to 30%
- Operation Environment: 50Hz to 20KHz
- Temperature/Humidity: 10 ℃ to 35℃/ 85%RH
- Power Supply: 110V±10%, 60Hz
- Dimension: 239 x 140 x 200mm
- Weight: 2.5kg
Package Included:
- 1 x High Frequency Signal Generator
- 1 x Power Cable
- 1 x Clip Cable
- 1 x User Manual
