110V Linear Power Supply Regulated Power Supply 50W Imported Transformer for 12V Hard Disk Enclosure

110V Linear Power Supply Regulated Power Supply 50W Imported Transformer for 12V Hard Disk Enclosure

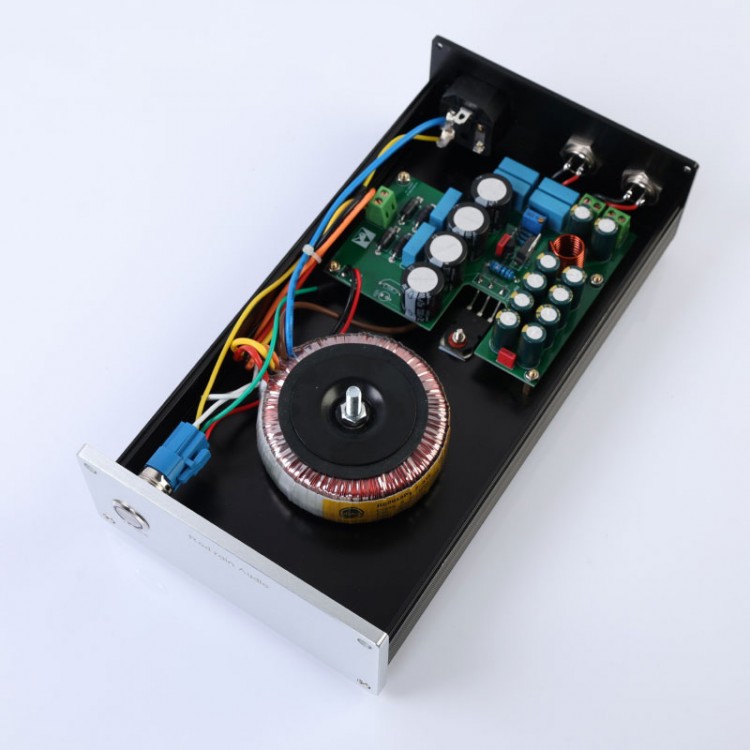

Power Supply with a 50W Imported Transformer:
- Using a 50W imported transformer.
- Optional input voltage is 110V or 220V.
- Output voltage is 12V by default. The product is designed with a dual DC output and the output is a single power supply because the internal interfaces are parallel for output.

Features:
- Product size: 130 x 250 x 60mm/5.1 x 9.8 x 2.4" (WxDxH).
- All aluminum alloy shell and metal switch with light.
- Default output voltage is 12V. Other output voltages (5V, 7V, 9V, 15V and 24V) can be customized. If they are needed, please contact us before purchasing. The maximum current can be 8A. Due to large current and large load power, there will be a certain temperature, which is normal.
- The linear power supply is of high precision and low noise.
- The core of the power supply adopts LM317 and TL431 as the benchmark, and original transistors 2AS1943 (for Toshiba) are used. Thus, it has higher accuracy and better thermal stability than general regulated power supplies. It boasts lower noise and lower ripple.
- Relatively cost-effective. It uses good capacitors, high-speed tubes, adjustable resistors (for BI), and chemical capacitors for filtering. The output has a 1-stage LC filter to further eliminate high-frequency noise.
- Optimized circuit design and premium components.
- Double-layer insulation makes it safer to use. QZ-2 double-layer insulated and enamelled copper wire. Primary inter-stage double-layer polyester film isolation. A++ grade high flux core.

Package Included:
- 1 x Linear Power Supply
- 1 x Power Cable
- 1 x DC Output Cable (5.5-2.1 cable or 5525 interface by default)

Attention:
- It is a linear power supply, not a switching power supply. There will be a certain temperature when it outputs 4-5A, which is normal and it is safe to use.
