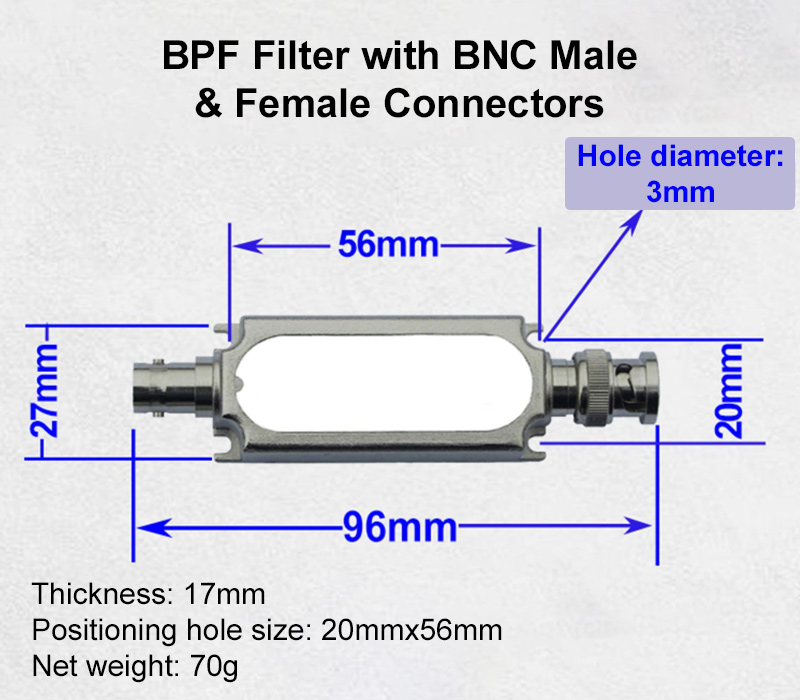

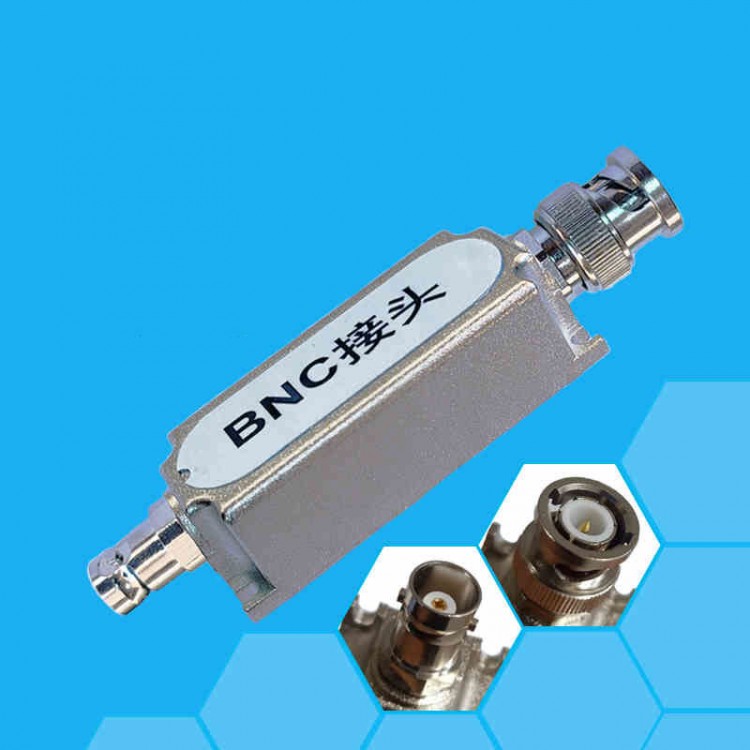

118-136MHz LC Passive Bandpass Filter (BNC Male & Female Connectors) for Aviation Frequency Bands
Description:
It is an LC type passive filter. The maximum withstand power is 100mW (20dBm). The signal voltage range is ±3V, the maximum withstand voltage is 50V, and the port impedance is 50Ω.
Features:
* 118-136MHz bandpass filter
* Port impedance is 50Ω by default
* The maximum input power of the filter is 100mW (20dBm) when our instrument's test power is 1mW (0dBm)
Package Included:
* 1 x Bandpass filter
Attention:

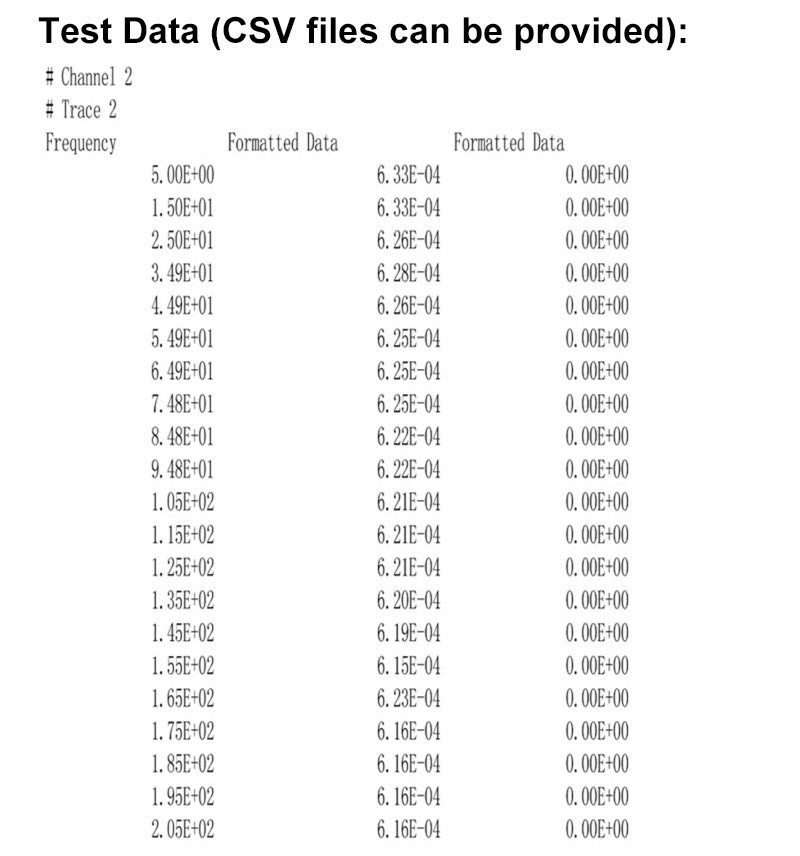

* E506IB network analyzer is used as the test equipment, and the default impedance is 50 ohms.
* The maximum input power is 100mW when the test power is 0dBM.
* The indicators of the product are slightly different. Please make sure that you don't mind before purchasing. Thank you!
* Use this filter with caution if your signal source is using PWM wave, square wave, triangle wave, or pulse wave. Be sure to contact customer service to confirm the cutoff frequency before ordering!
Packaging Details:
* Weight: 0.22kg
