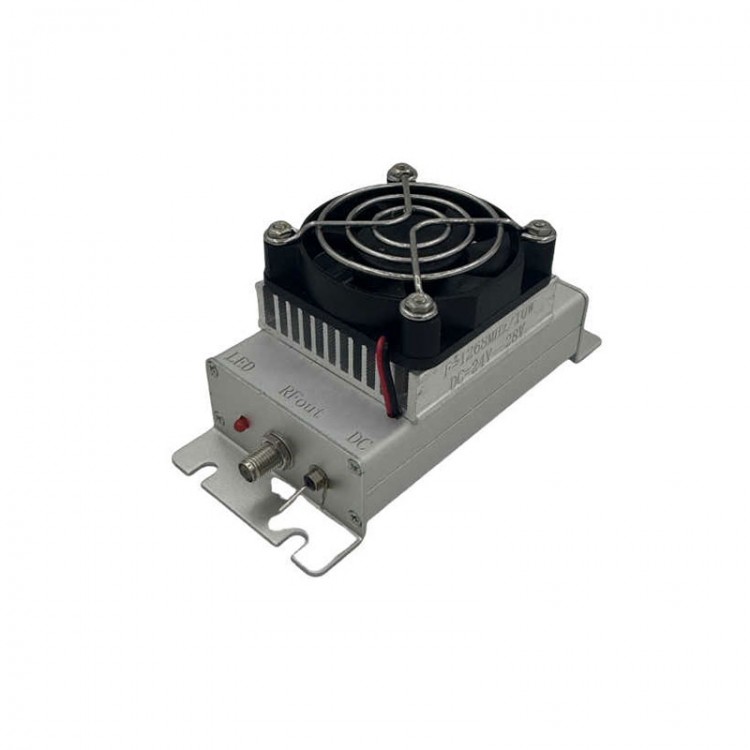

1180MHz-1300MHz/10W RF Power Amplifier RF Power Amp Module with Operating Frequency 1268MHz/10W
Specifications:
- Bandwidth: 1180MHz-1310MHz
- Input and output impedance: 50Ω
- Maximum input power: 16dBm (20mW)
- Maximum output power: 40dBm (10W)
- Small signal gain: 33dB
- Power supply: 24V-28V (DC)
- Operating current: 1.1A (varies with frequency)
- Connector type: SMA female connectors at both ends
Package Included:
- 1 x RF Power Amplifier
Packaging Details:
- Weight: 0.22kg
