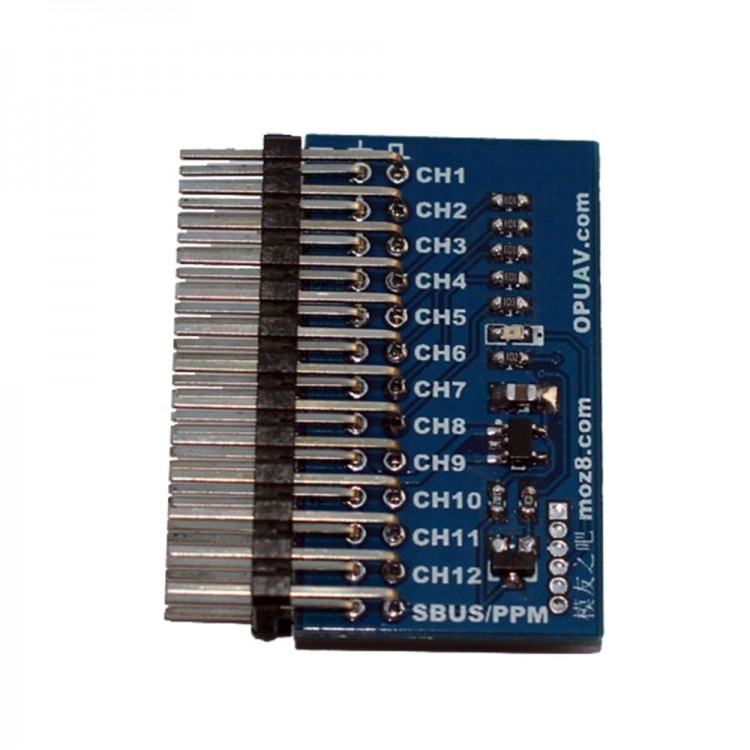

12 Ch Receiver PWM to SBUS PPM Encoder Converter for Pxihawk DJI Flight Controller

Features:

- Input normal receiver,output SBUS/PPM signal, default SBUS

- Input normal receivers

- Channel: 12

- Pixhawk, DJI flight controller compatible

Converting method description:
12 channels signal converter outputs SBUB/ PPM, converting method: (default no need to switch when output is SBUS)
- SBUS: Connecting signal pins of CH1 and CH2 before powered on. The signal light will flash one time for one time after powered on
- PPM: Connecting signal pins of CH1 and CH2 before power on. The signal light will flash two times for one time after powered on
When finish converting, it will automatically store current mode
