Feature:
- Support system Windows 7/8.1/10
- Power Type Support ATX 24P + ATX 4P 12V + ATX 6P 12V power supply interface
- Maximize your mining connectivity and speed with 16x PCIe Slots,up to 16GB DDR4.
- It is is so convenient to use and high compatibity.
- Compact,lightweight and portable.
Description:
- Model: B250 BTC 12P

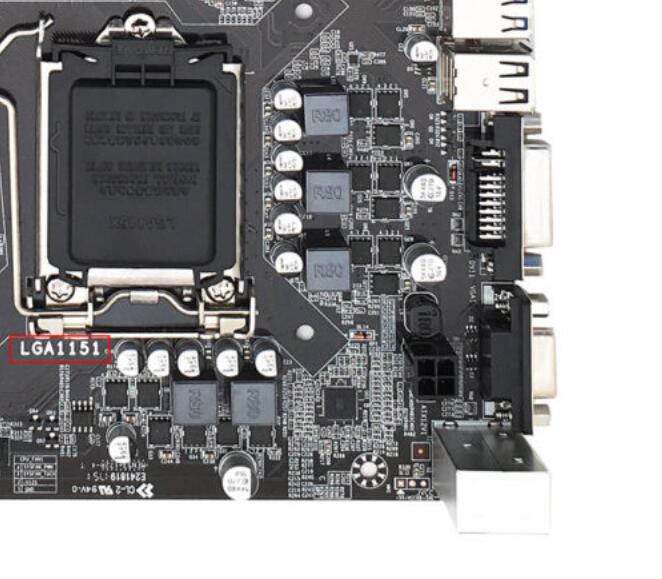

- Processor supports: all LGA1151 series processors
- Chipset with: Intel B250 Express Chipset

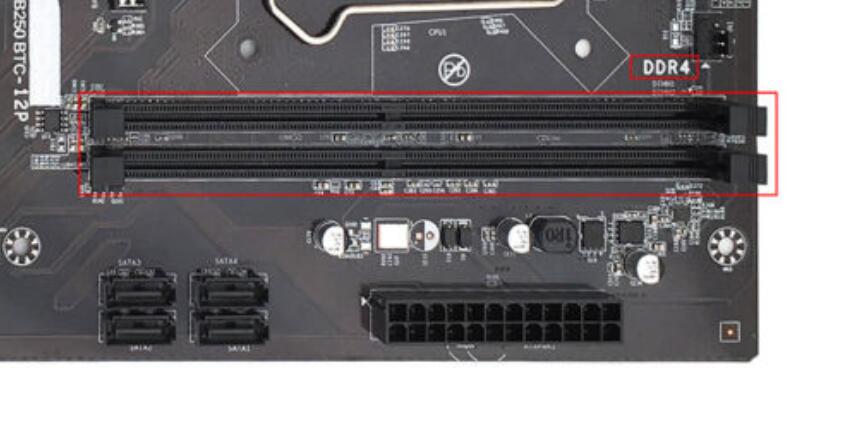

- Memory 2 x DDR4 DIMM memory slots,support for 2133/2400/2800/3000MHz memory,maximum support 16GB
- Display chip integrated Intel HD Graphics Core Graphics
- Display Output VGA/DVI/1 x PCI-E 16X/11 x PCI-E 1x
- Network 1 x RTL8111F Gigabit LAN chip
- Storage 4 x SATA hard drive interface
- Audio On-board ALC662 6-Channel High Definition Audio Controller
- Cooling system to be equipped with CPU heat sink and fan
- Operating temperature -10 ℃~60 ℃
- Operating humidity 5% -95% relative humidity,non-condensing
- Size 190mm x 295mm
- Weight 0.48kg

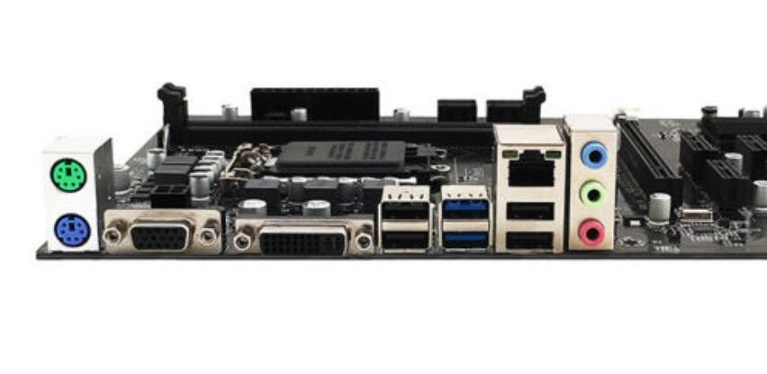

I/O interface 2 x USB3.0 interface:
4 x USB2.0 interface
1 x DVI connector
1 x VGA interface
1 x RJ45 Gigabit network interface
1 x 3 in 1 audio interface
1 x PS/2 interface
Built-in I/O interface 2 x USB3.0 pin:
4 x USB2.0 pin
1 x COM pin
1 x AUDIO front audio pin
1 x F-PANEL Front panel function buttons and indicator pins
BIOS AMI 64Mb Flash ROM
Package List:
- 1 x B250 12P Mainboard
- 1 x SATA Data Cable
