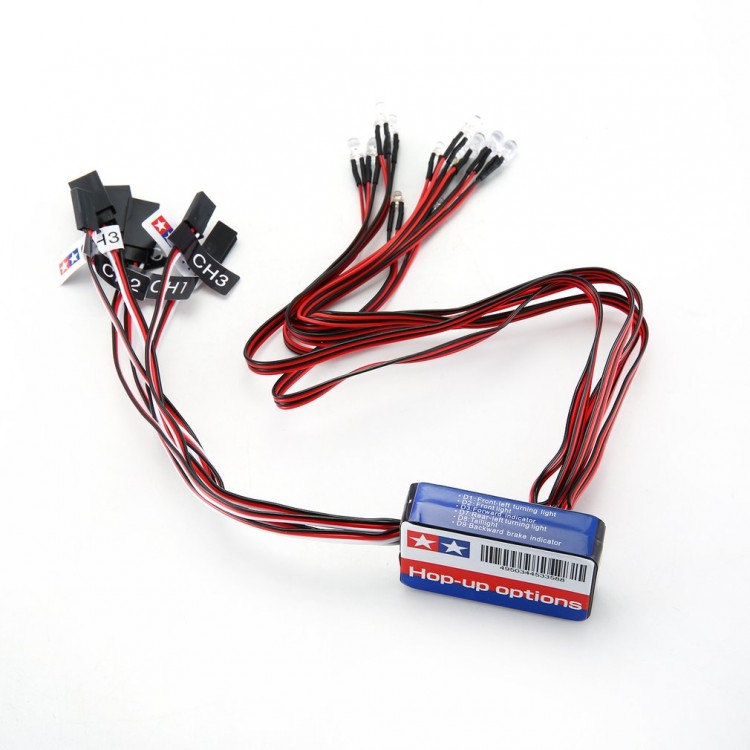

12 LED Lighting System Kit Smart Simulation RC Car Lights for Tamiya RC Car Parts 1/10 Drift Vehicle

12 LED Lighting System Kit Smart Simulation RC Car Lights for Tamiya RC Car Parts 1/10 Drift Vehicle

Specification:
Name: 12 LED Lighting System Kit
Material: plastic
Number of LED bulbs: 12
Working current: 100mA
Input voltage: 4.8V~6.0V
Light color: white, red, yellow, blue
Connection method: CH1-servo; CH2-speed controller; CH3-receiver
Application: 1/10 RC car
LED cable length: about 300mm
Circuit board size: 53*33*15mm
Weight: 57.2g

Features:
-12 LED lights
-Simulated lights
-Easy to use
-Far flash, super bright
-Improved circuit board design, HOSI power saving
-Headlight is white, tail light is blue, brake light is red, turn light is bright yellow
-Suitable for 1/10 RC car

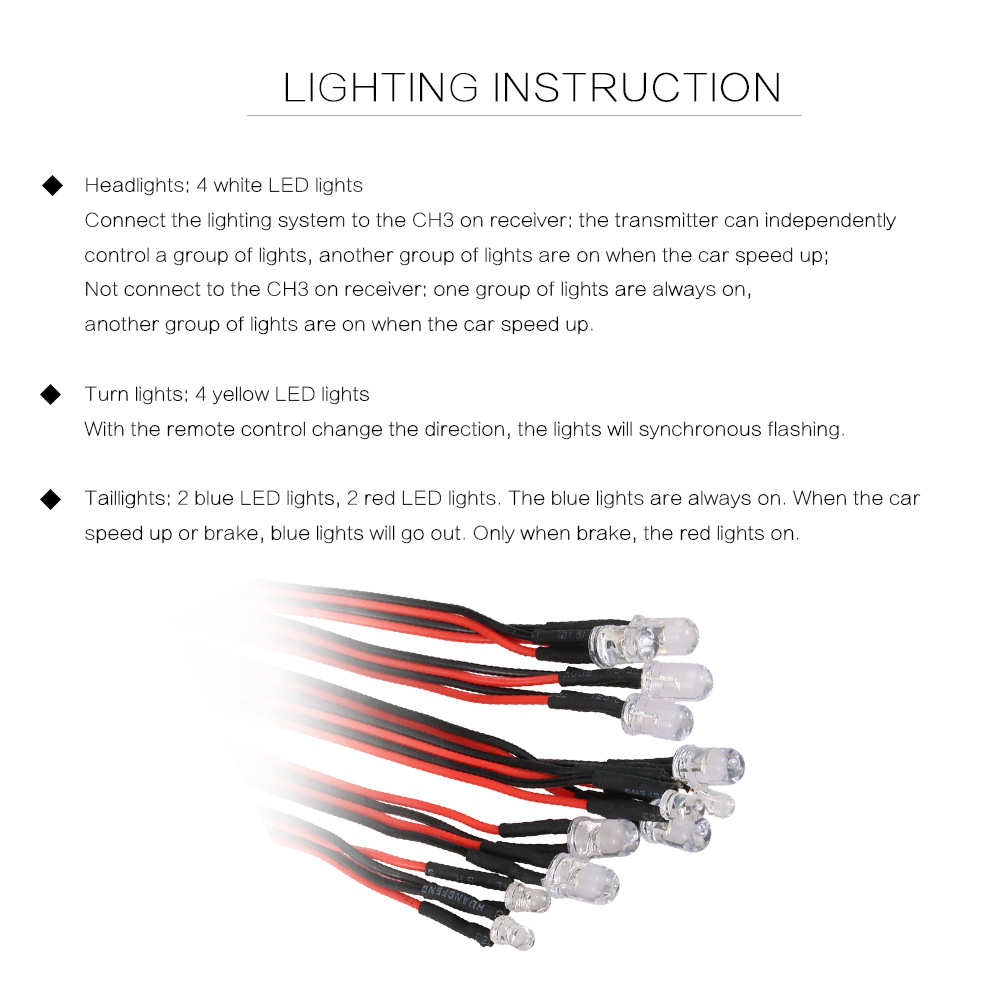

Light Description:
Headlight: 4 white LED lights
Connect the lighting system to CH3 on the receiver: the transmitter can independently control a group of lights. When the car speeds up, another group of lights are on; not connect to CH3: one group of lights are always on, the other group of lights are on when the car speeds up.
Turn lights: 4 yellow LED lights
When the remote control changes direction, the light will flash synchronously.
Taillights: 2 blue LED lights, 2 red LED lights
The blue light are always on. When the car speeds ups or brakes, the blue light will go out. Only when the car brakes, the red light is on.

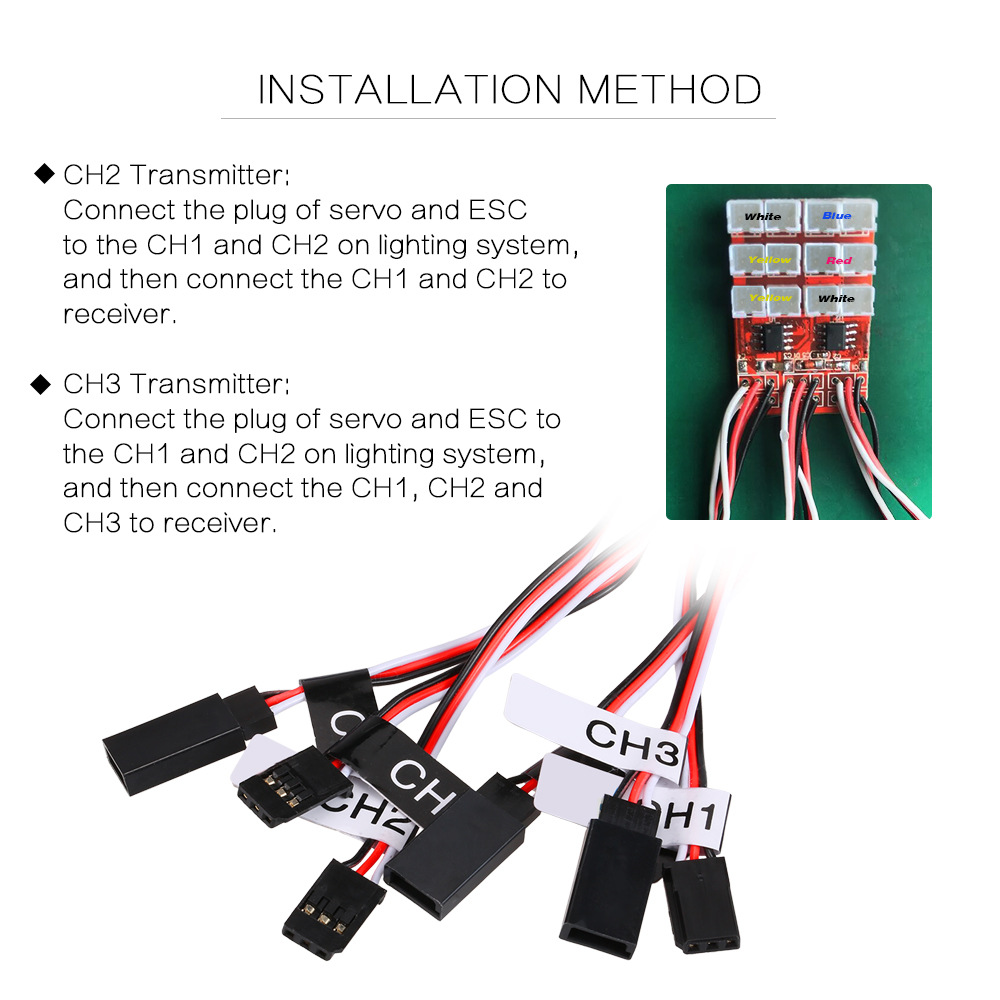

Installation Method:
CH2 Transmitter:
Connect the plugs of the servo and ESC to CH1 and CH2 on the lighting system, and then connect CH1 and CH2 to the receiver.

CH3 Transmitter:
Connect the plugs of the servo and ESC to CH1 and CH2 on the lighting system, and then connect CH1, CH2 and CH3 to the receiver.

Package List:
1 x RC Car 12 LED Lights Kit
