1204M-5305 Made-in-China DC Motor Controller Compatible-Curtis Controller for Forklift Truck
Product Description:
- The set includes controller,contactor,fuse,base,copper strip,wiring harness
- DC series Electronic control:1204M-5305
- 325A 48V
- It can be used for material forklift, electrombile
1204M-5305 Description:
- Model: 1204M-5305
- Norminal Battery Voltage (Volts): 36/48 (Two voltage settings are available. The voltage can be set to either 36 volts or 48 volts. By defaut, it is set as 48 volts, with an allowable working range 33-48V. If it is set as 36 volts, the allowable working range is 25-36V). The buyer should confirm with the seller the battery system voltage and the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V).
- By defaut, we will deliver the controller of setting of 48V / 325A / 0-5kΩ.
- 2 Minute Current Rating (amps): 325
- 5 Second Boost Current (amps): 375
- 1 Hour Current Rating (amps): 140
- Plug Braking (A2 Busbar): Yes
1204M-5305 Features:
- Interface type connection, convenient and safe
- Aluminum alloy installation floor, heat dissipation, high strength
- The installation hole layout is reasonable, installation save time and effort
- Compact structure, save space
- The gap between the controller and the aluminum alloy floor is filled with heat conducting silica gel, which is beneficial to heat dissipation and effectively protects the core components
1204M-5305 information: 1204M-5305 is the upgraded version of 1204M-5301 controller, providing new functions "reverse signal output / main contactor coil driver" through the 6.35 mm push-on terminal J5. 1204M-5303 supports more throttle types.(Attention: it is possible to choose a different sub-model of 1204M/1205M. Sub-models available: 1204M-5201, 1204M-5202, 1204M-5301, 1205M-5601 and 1205M-5602. For details, will you take reference with the manual: 1204M/1205M Controller Manual For any questions, don't hesitate to leave us a message.)
1204M-5305 Specification:
- 1204M CONTROLLERS
- Nominal input voltage: 36/48 V
- PWM operating frequency: 15 kHz
- Electrical isolation to heatsink (min.): 500 V
- KSI input current (no contactors engaged): < 60 mA without programmer; <130 mA with programmer
- Logic input current: <1 mA
- Status LED output current (max.): 2 mA
- Throttle type: 2-wire 0 – 5kΩ, 2-wire 5kΩ – 0, or 0 – 5V
- Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
- Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
- Package environmental rating: ISTA 2A; electronics sealed to IP65
- Dimensions (L× W×H) about : 174 × 146 × 77 mm
- Regulatory compliance: Safety — Designed to the requirements of EN 1175; EMC — Designed to the requirements of EN 12895 and EN 61000.
Package List:
- 1 x Controller
- 1 x Contactor
- 1 x Secure
- 1 x Fuse
- 1 x Baseplate
- 1 x Copper strip
- 1 x Wiring harness
Note:
- The buyer should confirm with the seller the battery system voltage (24V/36V) and the throttle type (0-5kΩ, 5k-0Ω or 0-5V). The aPlease leave us a message about the one you need. Thank you!

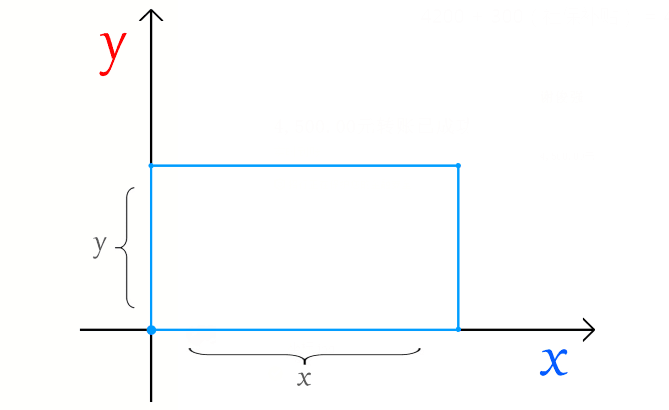

We need to know your baseplate bore distance. As shown,The transverse bore distance and longitudinal bore distance, X value and Y value. Otherwise, our default transverse bore distance is (X)=31cm/12.2", default longitudinal bore distance (Y)=23cm/9.1".
- Battery is not included.
- If throttles are needed, please contact us for details and prices. Thank you!
