Product Description:

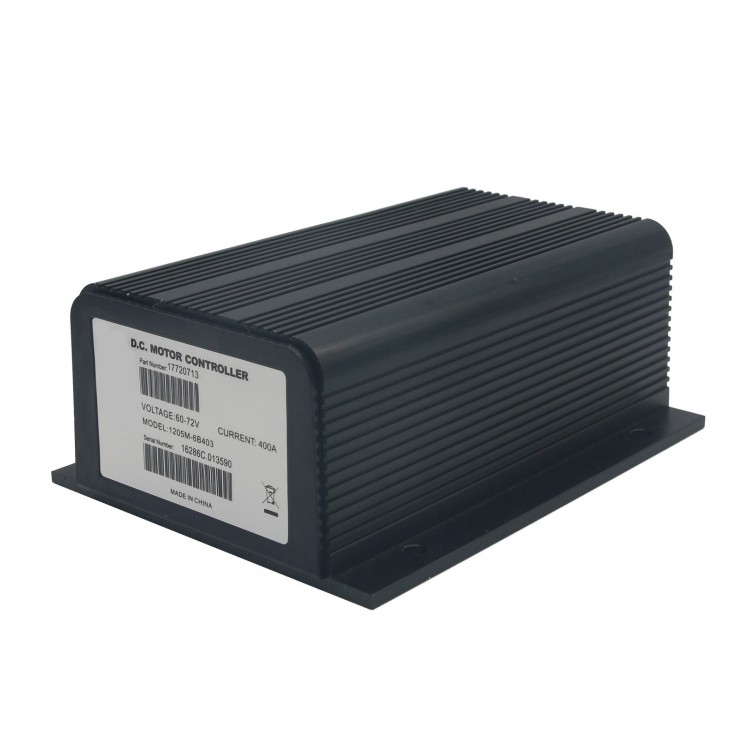

- 1205M-6B403 DC Series Motor Controller
- Upgraded Version of 1205M-6B401 (Part Number: 17721701) & Fully Compatible
60/72V - 400A

EY Features:
- Model: 1205M-6B403
- Norminal Battery Voltage (Volts): 60V / 72V (Two voltage settings are available. The voltage can be set to either 60 volts or 72 volts. By defaut, it is set as 72 volts, with an allowable working range 48-72V. If it is set as 60 volts, the allowable working range is 39-60V).

The buyer should confirm with the seller the battery system voltage and the throttle type (0-5kΩ, 5k-0Ω or 0-5V). There is no extra cost for reprogramming the controller or other original programmable devices.

By defaut, we will the controller of setting of 72V / 400A / 0-5kΩ (Throttle Type = 0).

Wiring Diagram:By default, the J5 terminal of 1205M-6B403 controller is not activated. The controller wiring is same to the old 1204M controllers without J5 terminal.

The diagram (PDF format) Download: Click here

If you want to activate the J5 terminal for using the Rev Input / Main Driver functions, please click here

Main Features:
- 1 Minute Current Rating (amps): 400
- 5 Minute Current Rating (amps): 275
- 1 Hour Current Rating (amps): 175
- Plug Braking (A2 Busbar): Yes

The controller model 1205M-6B402 (without the plug breaking A2 Bushbar) is also available.
For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the 1204M/05M/09M/21M Manual before making your purchase.
Other DC motor controller models are available:
- Model 1204M-4201 (24/36V 275A)
- Model 1204M-5203 (36/48V 275A)
- Model: 1204M-5305 (325A, 36/48V)
- Model 1205M-5603 (36/48V 500A)
- Model 1205M-6B402 (60/72V 400A, without the plug breaking A2 Bushbar)

Overview:
- 1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1205M controllers are updated versions of the popular 1205 controllers, with the added functionality of being programmable—via the original 1313-4431 Handhold Programmer or 1314-4402 PC Programming Station. This means the controllers  can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
- 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

Features include:
- High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
- Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
- Compatible with either a two-wire potentiometer or a voltage throttle.
- Throttle fault protection circuitry disables controller if throttle wires become open.
- High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
- Plug braking diode internal to controller.
- Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
- Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
- Easily programmable through the original 1313-4431 Handhold Programmer or 1314-4402 PC Programming Station.
- Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

SPECIFICATIONS: 1205M-6B403 CONTROLLERS
- Nominal input voltage: 60/72 V (1205M-6B403 has two available battery voltage settings. The voltage can be set to either 60 volts or 72 volts.)
- PWM operating frequency: 15.6 kHz
- Electrical isolation to heatsink (min.): 500 V
- KSI input current (no contactors engaged): <70 mA without programmer; <130 mA with programmer
- Logic input current: <2 mA
- Status LED output current (max.): 2 mA
- Throttle type: 2-wire 0 – 5kΩ, 2-wire 5kΩ – 0, or 0 – 5V
- Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
- Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
- Package environmental rating: ISTA 2A; electronics sealed to IP65
- Weight: 2.7 kg
- Dimensions (L× W×H) : 199 × 146 × 77 mm
- Regulatory compliance: Safety — Designed to the requirements of EN 1175; EMC — - Designed to the requirements of EN 12895 and EN 61000

Attention:
- Accelerator type:0-5v;0-5k;5k-0
- Accelerator voltage:general 72V(You need to confirm with us)

Package List:
- 1 x 1205M-6B403 60V 72V 400A



Note:
- The buyer should confirm with the seller the battery system voltage (60V/72V) and the throttle type (0-5kΩ, 5k-0Ω or 0-5V). Please leave us a message about the one you need. Thank you!
- If throttles are needed, please contact us for details and prices. Thank you!
- Battery is not included.
