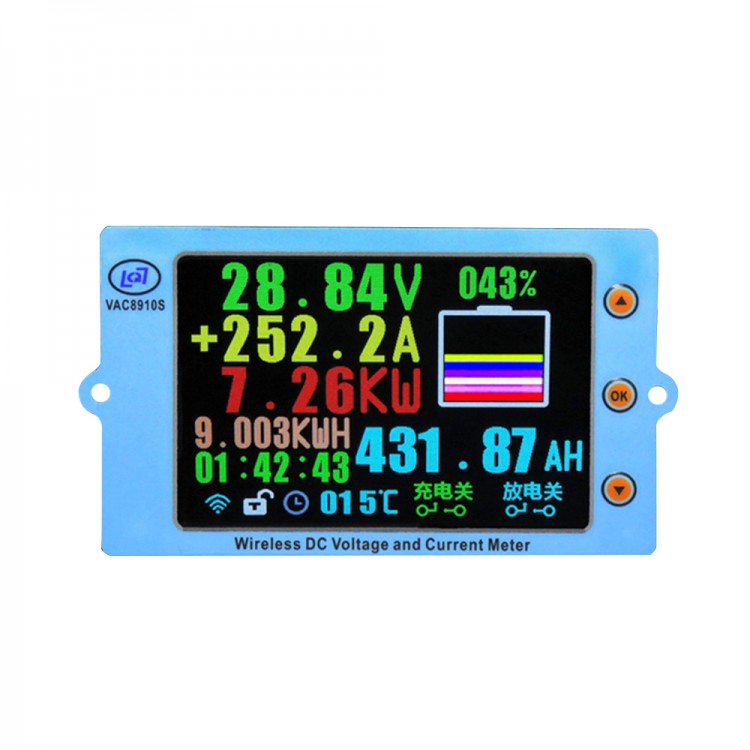

120V 500A Coulomb Meter DC Voltage and Current Meter VAC8910F with 3.5" Screen without Bluetooth

120V 500A Coulomb Meter DC Voltage and Current Meter VAC8910F with 3.5" Screen without Bluetooth

Description:
VAC8910F is a multi-function meter. It can display various physical parameters in real time, such as voltage, current, power capacity, energy, temperature, and operating time. Battery charging and discharging management, over-voltage, under-voltage, and over-current protection can be realized separately through its reserved two relay interfaces, accompanied by a buzzer alarm. And the instrument uses a 3.5-inch color LCD as a display. It displays data in a more comprehensive and clear fashion. The device has reserved communication interface for secondary development.

Features:
- 3.5" HD full-color display is clear and shocking
- Wiring is easier and more convenient to use
- The non-contact detection of current is realized by using a Hall sensor. Safe and reliable without disconnecting wires
- Charging and discharging dual relay interface. Five relay working modes can realize automatic opening and closing of charging and discharging
- With charge over-voltage, discharge under-voltage, charge over-current, discharge over-current protection, and buzzer alarm
- Chinese and English selection. Two display colors can be switched and two display interfaces can be adjusted, meeting your various needs
- Optional functions: Bluetooth, temperature measurement, CAN communication, 485 communication, to meet various communication application scenarios

Parameter Index:
- Input voltage: 1. Measuring range when powered by itself: 8V~120V. 2. Measurement range when externally powered: 120V series: 0-120V; 500V series: 0-500V; 100A series: 0.2-100A; 300A series: 0.4-300A; 500A series: 0.5-500A
- External power supply voltage: 8-120V
- Display language: Chinese/English
- Communication channel: 0-40
- Display mode: 3.5-inch color LCD display
- Display power supply: USB power supply: 5V; independent power supply: 8-12V
- Measurement rate: 10 times/second
- Relay delay time: (0-200)S
- Serial communication baud rate: 9600Bps

Measuring range:
- Capacity: 0.001AH~99999.999AH
- Energy: 0.001KWH~9999.999KWH
- Time: 0~100 hours
- Power value: 999KW
- Temperature: 1~150℃
- Voltage: ±(1%+2) digit
- Current: ±(1%+5) digit
- Temperature: ±2℃

Protection and setting range:
- OVP (over-voltage protection): 0.1~500V
- LVP (under-voltage protection): 0.1~500V
- OCP (over-charging protection): 0-500A
- NCP (discharge over-current protection): 0-500A

Package Included:
- 1 x LCD Monitor
- 1 x Test Box
- 1 x Temperature Cable
- 1 x Hall Sensor (Closed)
- 3 x Hx2.54 Cables
- 1 x USB to Mini USB Cable

Note:
- Battery is not included.
- The module comes without Bluetooth function.


1: Measured voltage
2: Measured current
3: Real-time power
4: Battery remaining energy
5: Time required for full battery / battery endurance time/ timing time
6: Wireless signal identification
7: Key lock logo
8: Timing start and stop sign
9: Real-time temperature
A: Charging relay status
B: Discharge relay status
C: Battery remaining capacity value
D: Progress bar of remaining battery capacity
E: Percentage of remaining battery capacity

Relay Working Mode Description:
By selecting different modes, the charging and discharging relay can be manually opened and closed, or automatically opened and closed to realize automatic management of battery charging and discharging.
