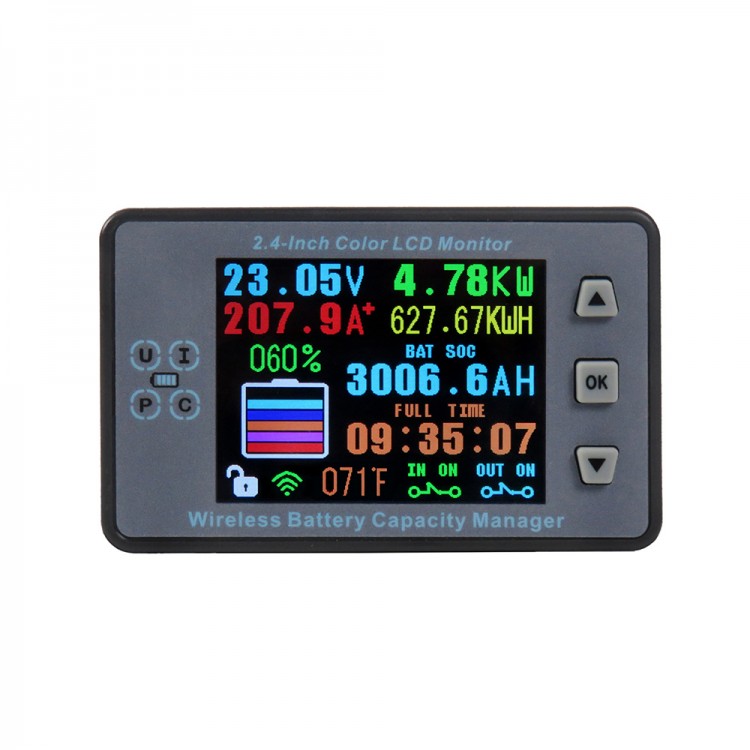

120V 500A Voltage Current Meter Battery Capacity Manager VAC8810F 2.4" Color LCD without Bluetooth
Description:
VAC8810F
is a multi-function instrument, which can display various physical
parameters such as voltage, current, power, capacity, energy,
temperature, running time, etc. in real time. Battery charge and
discharge management and over-voltage, under-voltage, over-current
protection accompanied by buzzer alarm. Moreover, the instrument uses a
2.4-inch color LCD as a display, which displays more comprehensive,
clear, and easy-to-observe data. A communication interface is reserved
for secondary development.
Features:
1. Transmission of data to avoid interference caused by complex wiring between the display and the detection module;
2.
The Hall sensor is used to realize non-contact detection of current,
without breaking the line, safe, reliable and convenient;
3. Voltage,
current, power, temperature (optional), capacity, percentage of
remaining capacity, and running time are displayed at the same time;
4.
Charge and discharge double relay interface, 5 relay working modes can
realize automatic disconnection and automatic closing of charge and
discharge;
5. With charge over-voltage, discharge under-voltage,
charge over-current, discharge over-current protection, with buzzer
alarm prompt function;
6. With power-off memory function, it can record the number of AH and WH before power-off;
7.
When charging, the percentage progress bar is switched to the color
running water light display, and the display screen shows the breathing
light flashing effect, which enhances the prompt;
8. With voltage, current, temperature waveform curve display function;
9. Comes with TTL serial communication function, which is convenient for secondary development;
10. Chinese and English language selection, two display colors can be switched, suitable for different customer needs.
Package Included:
- 1 x LCD Monitor
- 1 x Test Box
- 1 x Hall Sensor (Closed)
- 3 x Hx2.54 Cables
- 1 x USB to Mini USB Cable
Note:
- Battery is not included.
- The module comes without Bluetooth function. If a Bluetooth version is needed, please contact us.
Attention:
OVP
(Over-voltage protection); LVP (low-voltage protection); OCP (Charge
over-current protection); NCP (Discharge over-current protection).
