120W Low Noise DC Linear Stabilized Power Supply DC12V 7A for PC HiFi Router MAC Mini NAS Hard Drives

120W Low Noise DC Linear Stabilized Power Supply DC12V 7A for PC HiFi Router MAC Mini NAS Hard Drives

Description:
- This 160VA/120VA linear power supply adopts a brand new imported 160VA/120VA ring transformer, with excellent performance of ultra-low noise OP+MOS discrete voltage regulator circuit, high-speed and low resistance thermoelectric electrolytic capacitors and other HiFi materials.
- This linear power supply is used to upgrade various audio devices, digital devices, NAS hard drive enclosures, portable hard drive enclosures, various CAS, wireless routers, fiber optic modules, set-top boxes, MAC mini, PC HiFi, for Thinkpad HP Asus and other laptops.
- Due to the use of pure handmade production, it generally takes 1-3 days before delivery. Standard output DC voltage DC12V (commonly used voltage for NAS routers, hard disk boxes, set-top boxes, etc.).

Materials:
- On board components may be adjusted to other brands and parameters of the same grade as needed. The actual product shall prevail without further notice. Please do not consider this as cutting corners.

120W (DC12V maximum current 7A):
- The transformer adopts for Talema/Nortel brand new 120VA ring bull.
- The fuse tube adopts for Schurter gold-plated fuse tube 1.6A.
- The output cable comes standard with pure copper aviation 2P to DC5.5/2.5.
160W (DC12V maximum current 9A):
- The transformer adopts for Talema/Nortel brand new 160VA ring bull.
- The insurance tube adopts for Schurter gold-plated fuse tube 2A.
- The output line comes standard with pure copper aviation 2P to DC5.5/2.5.

Features:
- Multiple data measurements, calibration/lower interference.
- The performance of a DC linear regulator circuit is better as the voltage difference (the input voltage that has not been stabilized - the voltage that has been stabilized) increases. Only by providing sufficient voltage difference to the voltage regulator circuit can the output voltage of the regulator circuit be more stable, with smaller ripple, faster transient response, and richer details.
- Although switch mode power supplies have high efficiency, they cause serious interference to equipment and the power grid. Linear power supplies can filter out power grid interference, with very little interference, and provide pure and stable power supply.
- LHY linear power supply is designed for the research and development of high-definition video and HIFI audio equipment. With comprehensive optimization measures such as high current, low noise, fast response, low power consumption, and high reliability, it provides high-quality purification power supply for audio and video equipment, synchronously improving the quality of images and sound.
- It has a very low internal resistance and strong current driving force, which can ensure the stability of sound and image by meeting the pulse requirements of HIFI devices at every moment. After the upgrade, the interference has been greatly reduced, and both the sound quality and picture quality have been significantly improved.

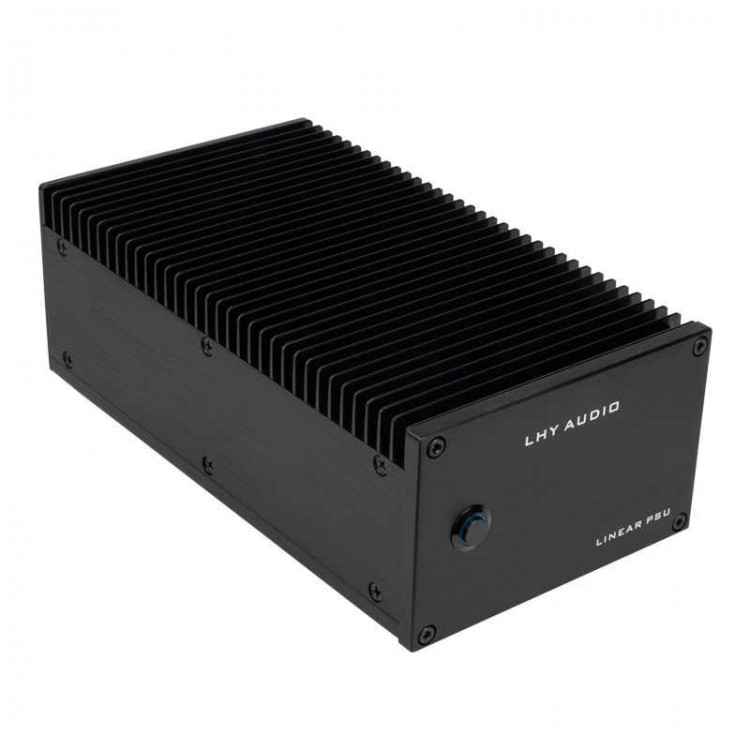

- Large chassis, thickened pure aluminum, multi piece aluminum heat dissipation. Improve heat dissipation area, effectively enhance heat dissipation efficiency and service life.
- Adopting for Talema/Nortel transformers, with very low radiated magnetic field buzzing and noise, efficient operation, combined with high-quality Hifi audio components.
- Pure handmade professional production, each component is welded and all are made by pure manual polishing.

Specification:
- Input voltage: 230VAC (115VAC is optional)
- Output voltage: DC12V at 7A (maximum output current)
- Output terminal: 2P aviation output female connector x 2
- Product size: 140 x 90 x 260mm
- Net weight: 4kg

Package Included:
- 1 x DC Power Supply
- 1 x Power Cord
- 1 x DC Cable
