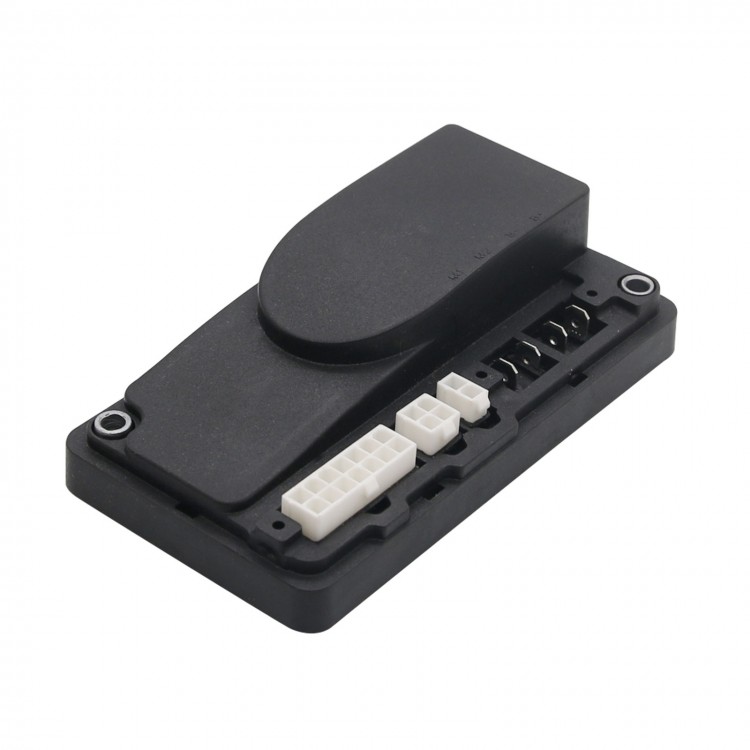

1212P-2502 (90A) Original Permanent Magnet Motor Controller for Curtis Pallet Truck Applications

1212P-2502 (90A) Original Permanent Magnet Motor Controller for Curtis Pallet Truck Applications

1212P-2502 (90A) Version Introduction:
It supports for 14pin + 2pin docking wires and AMP sockets for electronic control. If you use Heli Liftstar or Jialift SL15 series pallet trucks, please leave a note of the vehicle brand and model for programming. If your Heli Liftstar pallet trucks use 1212P-2504, Liftstar 1212-2504 program is needed. Because Liftstar has two programs, 2502 version can be used to replace 2504 by turning off a switch.

Overview:
The original 1212P motor speed controller for Curtis provides precise and smooth control of permanent magnet drive motors for battery powered vehicles. The 1212P is designed for use in pallet truck applications.

The controller is fully programmable by means of an original programming device for Curtis. Use of the programmer offers diagnostic and test capability as well as configuration flexibility.

Like all motor controllers for Curtis, the 1212P offers superior operator control of the vehicle's motor drive speed.

Key Features Include:
Smooth and Secure Control
• Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs, and ramps.
• Linear cutback of current ensures smooth control, with no sudden loss of power during under-voltage or over-temperature.
• Optional speed limit potentiometer provides direct and linear control of the maximum vehicle speed.
• Proprietary algorithms help prevent gearbox wear while providing smooth starts and reversals.
• The vehicle is brought to a complete stop before the electromagnetic brake is applied, ensuring safe and secure stops under all conditions.
• Charger inhibit input prevents driving while charger is attached.
• Key Off Decel function ensures a smooth "brake to stop" when the key is turned off while driving or when a fault occurs that requires the vehicle to stop.
• Anti-Rollback/Roll-forward function provides smooth and safe vehicle control on hills and ramps.
• Internal main relay provides secure power-off.
• Boost current gives a brief boost of current greatly improving transient loads such as starting on a hill, crossing thresholds, etc.

Easy Installation and Setup
• Industry standard footprint, mounting centers, and wiring allows drop-in replacement of other controllers.
• Easily programmed with an original programming device for Curtis, or can be supplied pre-programmed.
• Accepts all standard throttle types, including single-ended, wigwag, and unipolar.
• Simplified troubleshooting and diagnostics.
• Standard Mini-Fit Jr. for Molex and Faston terminals provide proven, robust wiring connections.

Valuable Additional Features
• Automatic compensation for changes in motor condition to ensure optimum drive performance at all times.
• Multi-mode provides for two distinct and programmable control modes (indoor/outdoor).
• Power Saver function prevents the controller draining the battery when the vehicle is inactive
• Battery Discharge Indicator output.
• Optional Speed Inhibit input offers flexibility to reduce speed or prevent drive under certain conditions, such as when the seat is lifted.
• Adjustable brake hold voltage reduces heating of the brake coil.
• Reverse Beeper function alerts bystanders.
• Electronics sealed to IP54.

Robust Safety and Reliability
• High RF immunity prevents speed variation and shutdowns in noisy RF environments.
• Controller power circuits and microprocessor software are continuously monitored for proper operation.
• On power-up, system automatically checks the throttle, brake, and associated wiring, and disables drive if a fault is found.

Meets or Complies with Relevant US and International regulations
• For details on regulatory compliance, see the Specifications.

Pallet Truck Applications
• Emergency reverse with belly button switch input.
• Input from 906 battery discharge indicator meter for Curtis.
• Output Lift Lockout signal, which can drive a relay.
• Neutral input that can be used to shut off output regardless of throttle input.

Package Included:
• 1 x Motor Speed Controller

Note:
• Battery is not included.

Packaging Details:
• G.W.: 0.5kg
