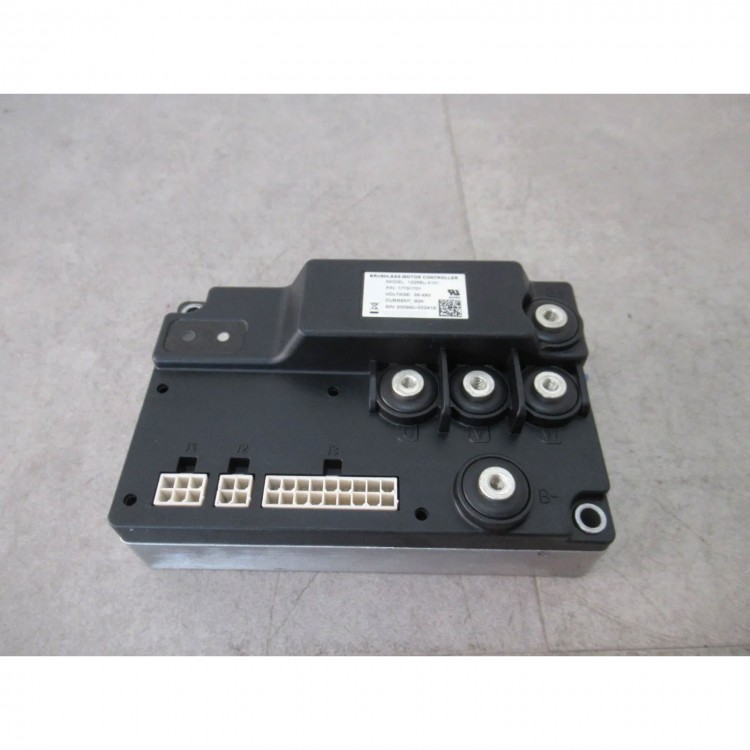

1226BL-4101 (36-48V) (90A) Original Brushless Motor Controller PM Motor Controller (Hangcha Program)

1226BL-4101 (36-48V) (90A) Original Brushless Motor Controller PM Motor Controller (Hangcha Program)

Version Introduction:
The motor controller is designed with Hangcha program. It can work with Hangcha CBD20-AMC1 electric pallet truck. And we have upgraded the program for you.

Description:
Original 1226BL Motor Speed Controllers provide efficient, optimal control of Brushless DC drive motors for battery powered vehicles. Optimized for use on light duty Class III pallet trucks and sweeper scrubber floor care machines. Highly flexible programmability allows them to be applied on any low power BLDC motor application.

Features:
Easy Installation and Set-up
- Can be programmed with the original Integrated Toolkit (CIT) as well as the original model 1313 handheld programmer.
- Simplified troubleshooting and diagnostics.
- Industry standard Mini-fit Jr. logic connectors for Molex and heavier duty M5 threaded busbars for battery and motor wiring.

Smooth and Secure Control
- Advanced speed regulation maintains precise speed over varied terrain, obstacles, curbs and ramps.
- Linear cutback of current ensures smooth control with no sudden loss of power during under-voltage or over-temperature.
- Emergency reverse inputs.
- Temporary 'Boost Current' feature provides greatly improved performance with transient loads such as starting on a hill, crossing thresholds, climbing obstacles, etc.
- Hydraulic lift lockout functionality to protect the vehicle's batteries from damaging level of discharge.
- Dynamic pot fault detection (open/short wiring fault detection).
- Electromagnetic brake driver.
- Hydraulic pump contactor driver (24V and 36/48V models).
- Main contactor driver (72V model).
- Embedded main relay (24V and 36/48V models).
- Supports a motor temperature sensor.
- Inputs are protected against shorts to B+ and B–.
- Short-circuit protected outputs.

Flexible I/O
- I/O can be configured to provide up to:
  • Two analog/digital inputs;
  • One potentiometer input;
  • Supports 120° Hall position sensors;
  • Three 1.5A coil drivers;
  • One motor temperature sensor input;
  • +5V and +14V external power supply (Total 120mA).

Valuable Additional Features
- Fully CANopen compliant per CiA 301.
- Multi-mode provides for two distinct and programmable speed modes (indoor/outdoor modes).
- Battery Discharge Indicator output (0-5V).
- Adjustable brake holding voltage reduces heating of the brake coil.
- Models 1226BL-225X and 1226BL-415X can be used with the original 1220E Electric Power Steering Controller to limit speed based on the steering angle.
- Integrated LED status indicators.
- Charger inhibit input prevents driving while the charger is connected (24V and 36V/48V models).
- Pre-charge function to reduce arcing that would otherwise occur when the main relay or contactor is closed with the internal capacitor bank discharged.

Meets or complies with relevant US and International Regulations
- EMC: Designed to the requirements of EN 12895:2015+A1:2019.
- Safety: Designed to the requirements of EN 1175:2020 and EN ISO 13849-1:2015. UL 583.
- Electronics sealed to IP54 per IEC 60529.
- Regulatory compliance of the complete vehicle system with the controller installed is the responsibility of the vehicle OEM.

Package Included:
- 1 x Motor Controller

Note:
- Battery is not included in the package.

Packaging Details:
- G.W.: 1kg
