1266A-5201 36V/48V China-Made Programmable DC Motor Controller with Foot Pedal Installation Kit

Note:
We may reprogram the controller for adapting itself to your vehicle's specification.You may send us the list of parameters to be modified (example: for setting the speed limit,we may need to know the tire diameter, gear ratio, number of magnetic poles in the speed sensor magnet and speed expectation).There is no extra cost for reprogramming the controller.

CURTIS 1266A-5201 Controller Manual

1313-4331 Handheld Programmer

Specifications:
- Proposed motor power rate:36V system: ≤ 4 kW; 48V system: ≤ 5 kW
- Simple motor connecting labels on assemblage
- Easy installation with components mounted on a heat-sink aluminium alloy installation plate
- Foot pedal accelerator (throttle), pre-wired for assemblage
- Simple plug-in connectors

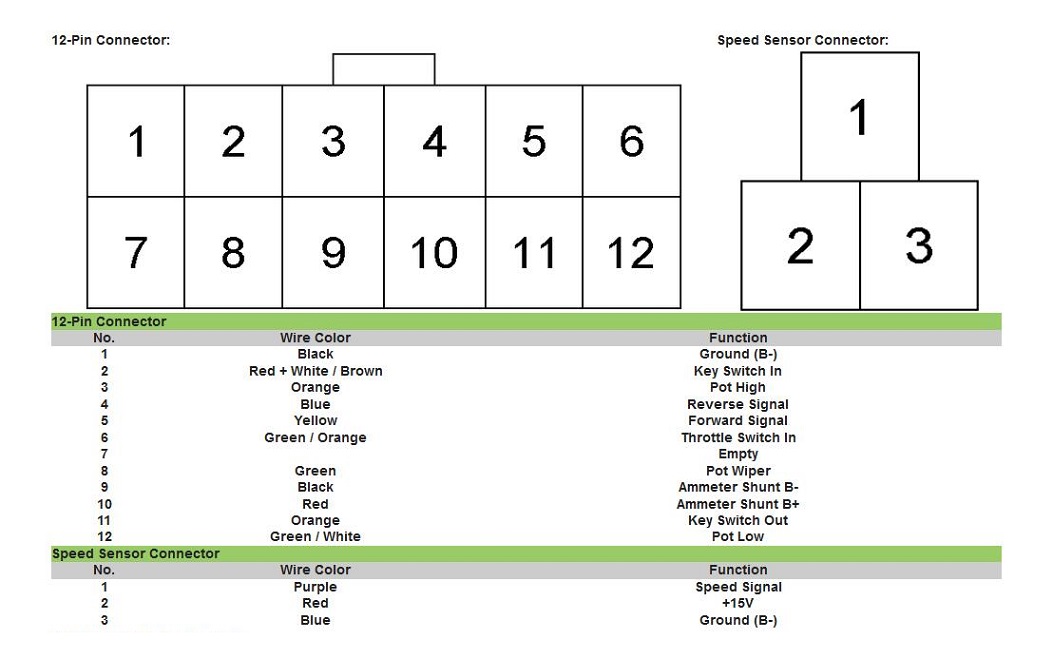

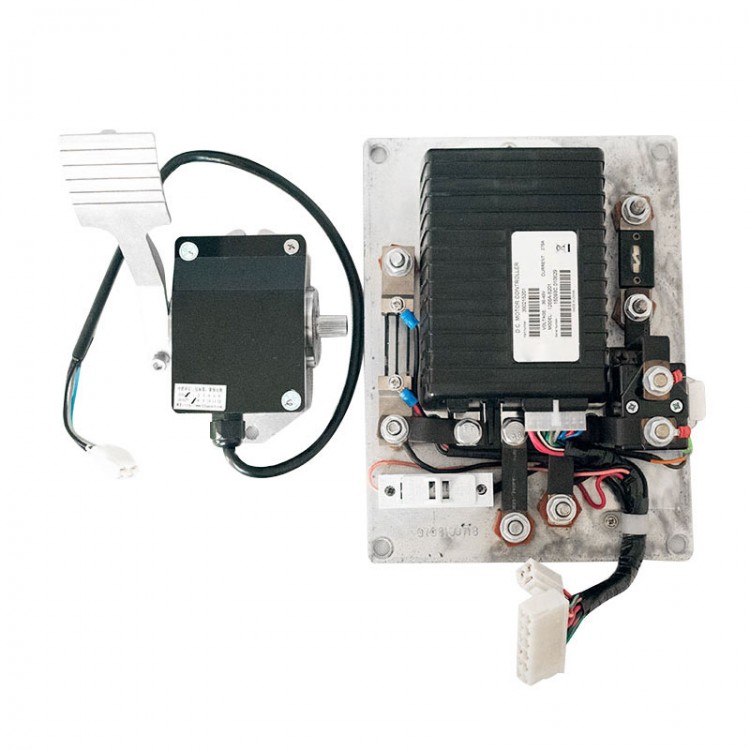

This 1266A-5201 controller assemblage is a completed electric vehicle DC Series Motor control system.

The assemblage includes:
- Controller
- Main contactor
- Fuses
- Wiring
- Heat-sink aluminium alloy installation plate
- Foot pedal accelerator (throttle)
- Plug-in connectors
- Installation (bolts, washes and nuts) kit Included

Please consult your cart/motor dealer and read carefully the compatible-CURTIS 1266A-5201 Controller Manual before making the purchase.

Overview:
- Compatible-CURTIS 1266A controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles.These programmable controllers are simple to install, efficient, and cost effective. Typical applications include golf carts and small utility vehicles.
- The 1266A controller offers smooth, silent, cost effective control of motor speed and torque.The speed sensor input allows superior closed-loop control for regulating vehicle speed.Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.

Key Features:
- Compatible-CURTIS Model: 1266A-5201
- Nominal Battery Voltage (Volts): 48V (default setting) or 36V
- Amarture 2 Minute Current Rating (amps): 275
- Field 2 Minute Current Rating (amps): 20
- PWM operating frequency: 16 kHz
- Electrical isolation to heat sink: 500 V AC (minimum)
- Aluminum alloy installation panel size: L270 mm x W201 mm x H8 mm
- Installation dimensions (holes): 250 mm x 184 mm
- Assemblage Net Weight: 4.6 kg (with foot pedal throttle)

Advantages:
- Regenerative braking, providing longer operation on a single battery charge and reducing motor brush wear and motor heating
- Adjustable brake rates, for smooth pedal-release braking
- Two user-selectable vehicle operating personalities, with vehicle top speed controlled and limited in each mode
- Motor parameters are programmable to match the characteristics of the specific motor being used
- Vehicle speed control is enhanced through feedback from a Hall effect speed sensor
- Anti-rollback function,providing improved control when throttle is released on hills
- Anti-stall function helps prevent motor commutator damage
- High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
- Complete diagnostics through compatible-CURTIS 1313-4331 Handheld Programmer or 1314 PC Programming Station and through the built-in Status LED,for quick and easy testing,diagnostics,and parameter adjustment
- For WalkAway braking feature limits any stopped or key-off rolling to a very low speed
- Auxiliary driver can be programmed for either an electromagnetic (EM) brake or a relay for WalkAway
-  Coil driver provides adjustable pull-in and holding voltages to relay (for WalkAway) or EM brake
- Two fault outputs provide diagnostics to remotely mounted displays
- Reverse signal driver provides a low signal any time the vehicle is traveling in reverse
- Driver outputs are short circuit protected and provide built-in coil spike protection
- Brake/Drive Interlock meets ISO stopping distance requirements
- Warning buzzer sounds steady in reverse,intermittent during braking for WalkAway
- Splash resistant plastic cover
- Meets or exceeds EEC fault detect requirements

Package List:
- 1 x DC Motor Controller
- 1 x Foot Pedal Installation Kit
