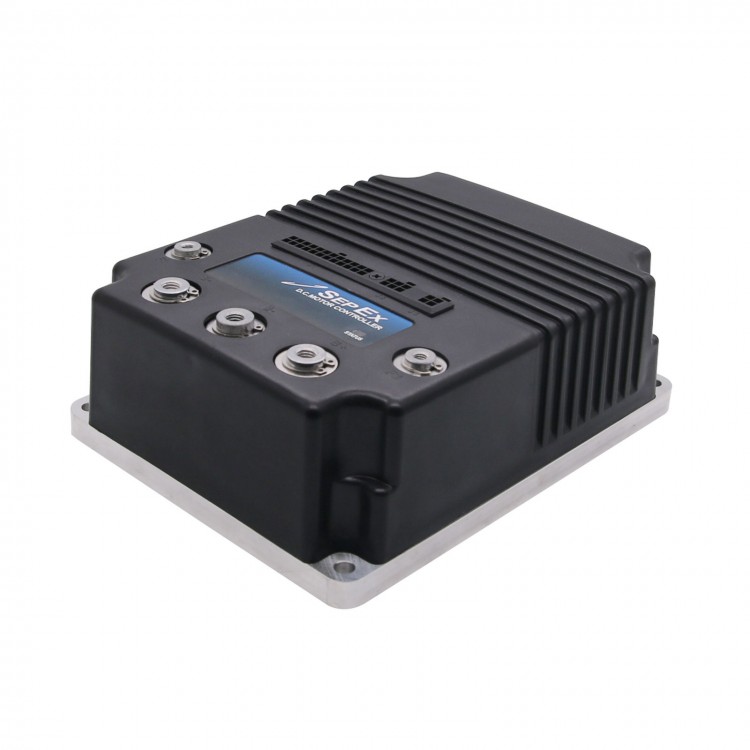

1268-5403 Made-In-China Programmable DC Motor Controller 400A 36V/48V Controller Compatible-Curtis

Product Description:
- Programmable DC SepEx Motor Controller Compatible-Curtis
- Model: 1268-5403
- 36V/48V-400A, Optional Connectors Kit

Specifications:
- PWM operating frequency: 16 kHz
- Electrical isolation to heat sink (min.): 500 VAC
- KSI input voltage (minimum): 16.8 V
- KSI input current (typical): 160 mA without programmer; 200 mA with programmer
- Ambient operating temperature range: -40°C to 50°C
- Heat sink over-temperature cutback: starts at 85°C; cutoff at 95°C
- Heat sink under-temperature cutback: 50% armature current at -25°C

Overview:
- Compatible-CURTIS 1268 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include heavy-duty golf carts, personnel transports, burden carriers, and other utility vehicles.
- The 1268 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.
- 1268-5403 controllers are widely applied in different electric vehicles, such as golf carts and utility vehicles. For current golf cart user, please take a reference with the parameters' list of different vehicle models; for comparing the difference of parameters modified, please see the parameter list of default setting of controller 1268-5403.

Key Features:
- Model: 1268-5403
- Norminal Voltage (Volts): 48V (default setting) or 36V
- Amature 2 minute current rating (amps): 400
- Field 2 minute current rating (amps): 50
- Logic enable and logic power input voltage (minimum):16.8 V
- Logic enable and logic power input current (no contactors engaged): 160 mA without programmer; 200 mA with programmer
- Logic input voltage: 20.0 V High; 7.5 V Low
- Logic input current 10 mA
- Throttle Type: various throttles can be used with the 1268 controller, including 5kΩ 3-wire potentiometers and 0–5V throttles.
- Dimensions: L229xW178xH81 mm
- Net Weight: 3.9 kg
- Package environmental rating: IP64, IP67

Features Include:
- Regenerative braking, providing longer operation on a single battery charge and reducing motor brush wear and motor heating
- Adjustable brake rates, for smooth pedal-release braking
- Two user-selectable vehicle operating personalities, with vehicle top speed controlled and limited in each mode
- Motor parameters are programmable to match the characteristics of the specific motor being used
- Vehicle speed control is enhanced through feedback from a Hall effect speed sensor
- Anti-rollback function, providing improved control when throttle is released on hills
- Anti-stall function helps prevent motor commutator damage
- High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
- Complete diagnostics through original 1313-4331 Handheld Programmer or 1314 PC - Programming Station and through the built-in Status LED, for quick and easy testing, diagnostics, and parameter adjustment
- For WalkAway braking feature limits any stopped or key-off rolling to a very low speed
- Auxiliary driver can be programmed for either an electromagnetic (EM) brake or a relay for WalkAway
- Coil driver provides adjustable pull-in and holding voltages to relay (for WalkAway) or EM brake
- Two fault outputs provide diagnostics to remotely mounted displays
- Reverse signal driver provides a low signal any time the vehicle is traveling in reverse
- Driver outputs are short circuit protected and provide built-in coil spike protection
- Brake/Drive Interlock meets ISO stopping distance requirements
- Warning buzzer sounds steady in reverse, intermittent during braking for WalkAway
- Splash resistant plastic cover
- Meets or exceeds EEC fault detect requirements

Package Included:
- 1 x DC Motor Controller

Note:
- Customers need to let us know your vehicle and voltage (36V/48V optional). Customers should tell us whether it is with anti-skidding function.
- There are inner programs for each controller program and it is impossible to confirm. We can help program main program to ensure that the car to can walk with installed controller. If customers want to keep your car as the original, you need to copy the old controller program into the new controller with programmer after buying.
- For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the 1268 Controller Manual before making the purchase.
- By default, we will deliver the controller with default setting of 48V/400A. If you need to modify any controller parameter, please send us a message with the list of parameters to be modified.
- We supply also the 1268-5403 controller assemblage with throttle (foot pedal).
- Battery is not included.

User Manual:
Link for https://www.nocoev.com/product/ebay/1268/1268%20manual(12D).pdf

Controller Parameter List:
Link for https://www.nocoev.com/images/products/1268-5403/1268-5403_default_setting.pdf

Different Vehicle Models Parameter List
