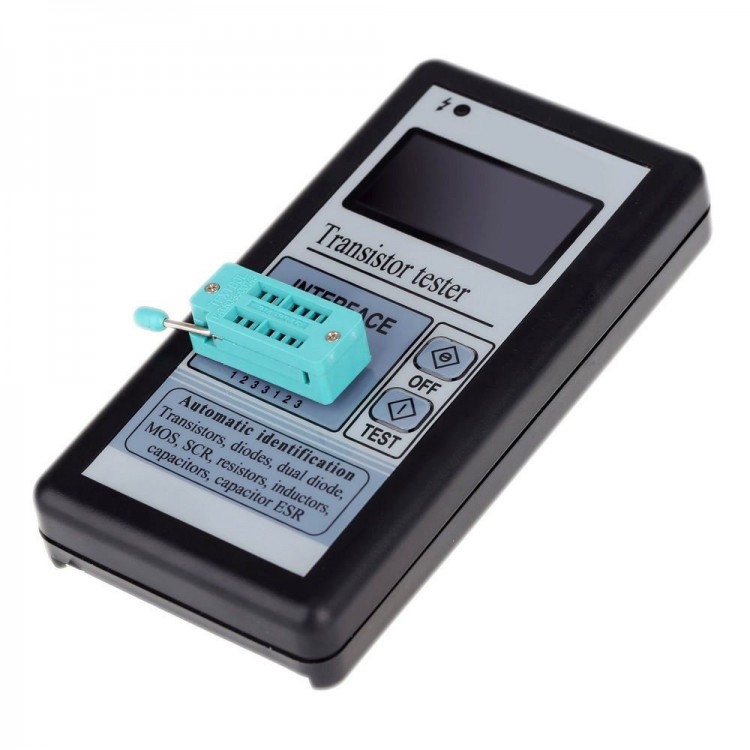

128x64 LCD Transistor Tester Capacitance SCR LCR ESR Meter Diode Triode MOS NPN
Description:
Multi-functional transistor tester for automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices. Easy and convenient to operate.
Features:
- The display is 128*64 LCD with backlight in blue color.
- Powered by 9V battery.
- English version
- All components are protected by a grey plastic case, convenient to carry.
- Automatically detect NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors or other devices.
- Automatically test the pins of a component and display on the LCD.
- Measure the gate threshold voltage and gate capacitance of the MOSFET.
- Measure bipolar transistor current amplification factor and base-emitter threshold voltage.
- Two-button operation, automatic shutdown to avoid unnecessary waste.
- Short detection time: only 2 seconds. It is normal to cost 1 minute for bulk capacitor detection.
Note: Please make sure that capacitors are discharged before testing.
Specifications:
- Material: PCB + Plastic
- Display: 128 * 64 LCD
- Shutdown Current: 20nA
- Resistor Test Range: 0.5Ω-50MΩ
- Inductor Test Range: 0.01mH-20H
- Capacitor Test Range: 25pF-100000uF
- Item Size: 13 * 6.5 * 2cm / 5.1 * 2.6 * 0.8in
- Item Weight: 103g / 3.7oz
Package includes:
- 1 x 12864 LCD Transistor Tester
