- 2-channel CNC high precision,high linearity voltage source/ current source
- For output,you can choose voltage or current.constant current source
- Support serial communication (Directly connect MCU serial port I/O,not connect 232 conversion chip)
baud rate:57600;Simple instructions & 1C+05.000_2V-05.000S#,receive right instructions return RX_OK.
- Power supply:+-12V,current 0.3A (can uses max +-15V power supply )

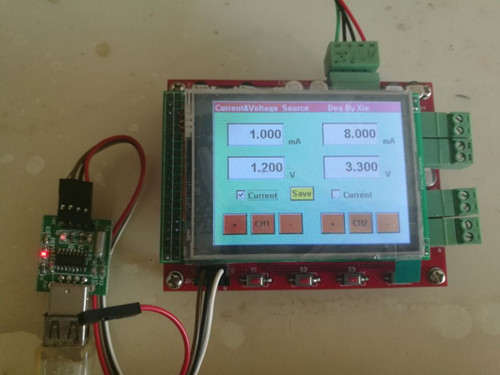

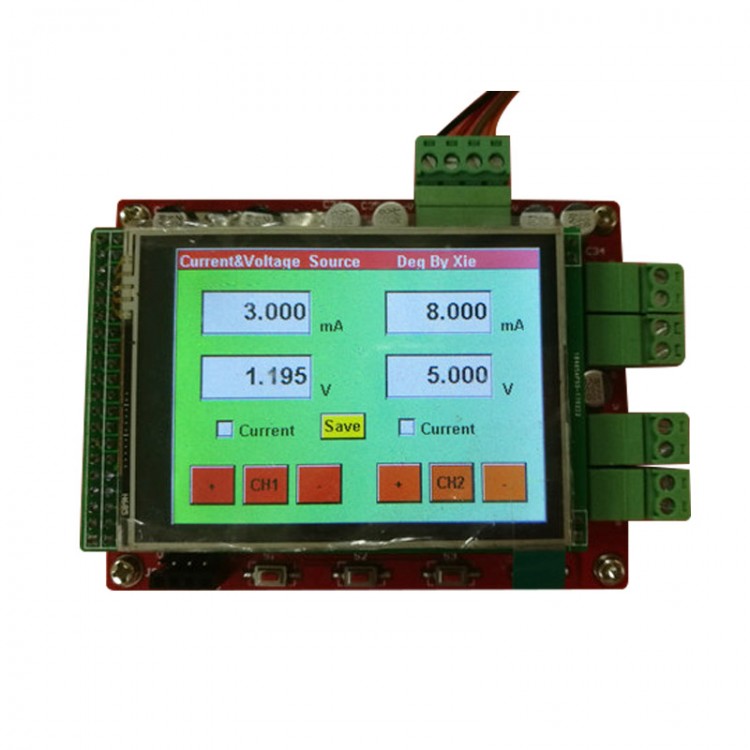

- Colour display,touch screen operation.You can directly input parameters that you need.You can also use keys trimming.(Note:We suggest that you can not tear off the protective film on the display,because the touch screen is resistance screen,if you scratch it,may cause the touch function failure.)
- Module has storage function,it can save setting parameters.
Module Features:

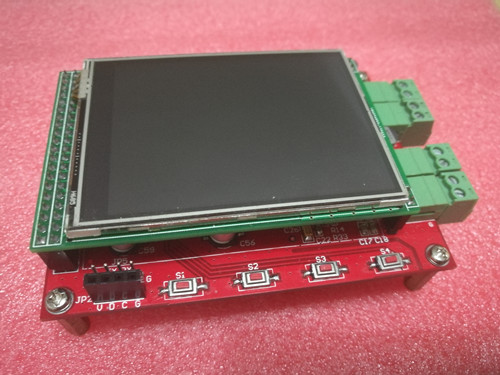

1.CNC voltage source/current source,PCB design
2.Dual channel:You can choose source/current source output for single channel.Current output power tube,voltage output amplifier.Good output linearity for the module.
3.Output frequency range:

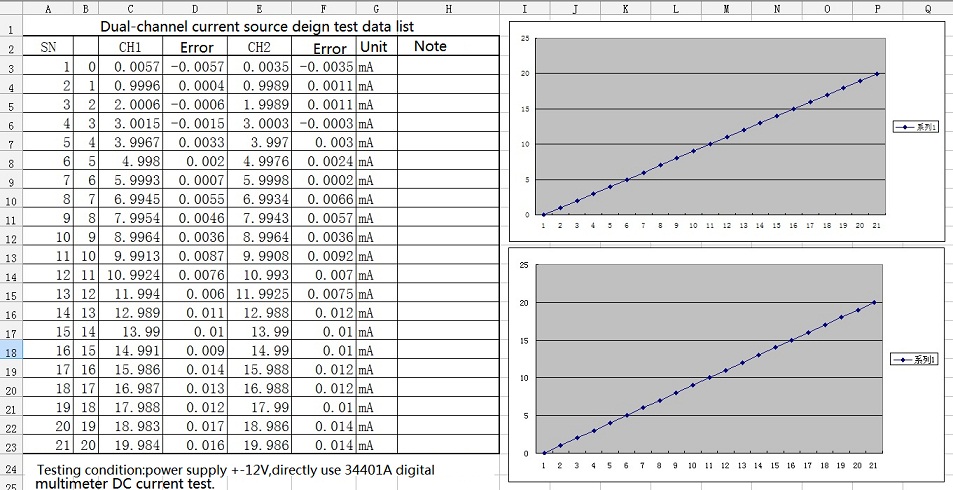

Current source:12 bit: 0-22mA,the minmum resolution:5uA;

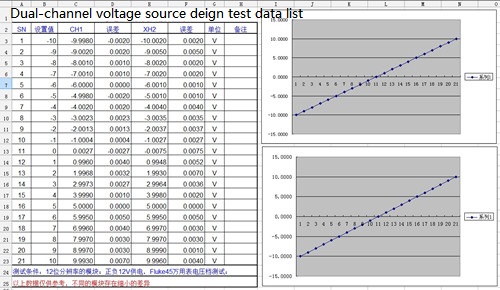

Voltage source:12 bit: +-10V,the minmum resolution:5mV,Output current: 80mA;
Package List:
- 1 x Current Voltage Source Module
