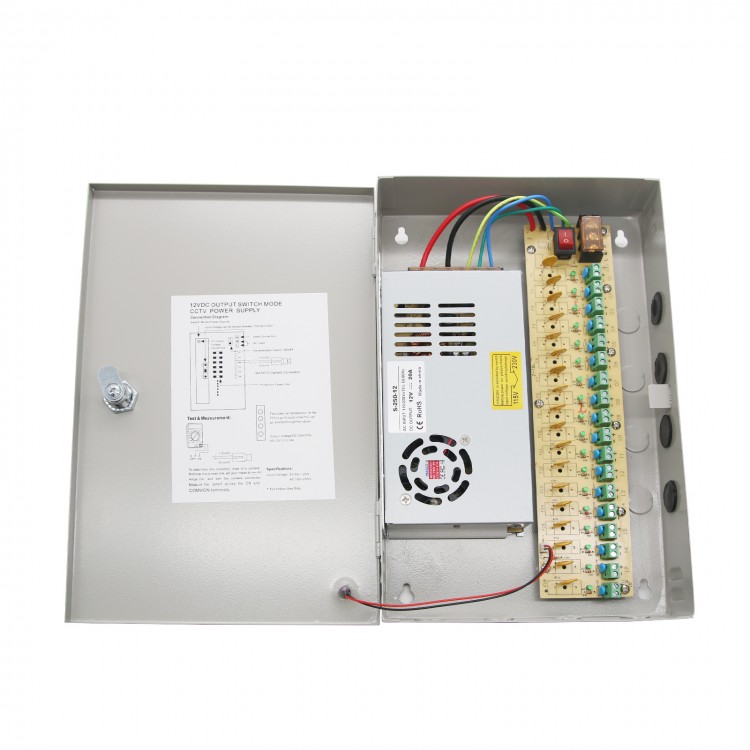

12V 20A 18-Channel CCTV Security Camera Power Supply Distribution Box Multiple Protections

12V 20A 18-Channel CCTV Security Camera Power Supply Distribution Box Multiple Protections

Description:
Monitoring camera can hardly work well without sufficient power. A high-performance power bank will do you a favor. This is our 18 Ports 12V DC 20A  CCTV Camera Power Supply Distribution Box. It will offer a more professional alternative to individual power adapters, and feature separate spaces for low voltage and high voltage operation so as to protect itself from high voltage damages. Designed with 18 ports, this power bank will effectively balance the circuit and provide the device with moderate power to ensure its normal operation.

Features:
- Built-in EMI filter
- 100% full-load aging test
- Durable glass fuse ensures output protection
- 18-port design allows the power bank to support several cameras simultaneously
- Multiple Protections: Short-circuit, over-load, and over-voltage
- LED indicator for power supply helps you to know which camera is not working
- It offers a more professional alternative to individual power adapters
- Provide the camera with sufficient power but well balance all branches to avoid malfunctions
- Metal covered case with lock
- Last for over 50,000 hours

Specifications:
- Input Voltage: AC220V±15%
- Input Frequency: 47 to 63Hz
- Input Start Surge Current: 5A/115V, 30A/230V (cold start)
- Output Voltage Adjustment Range: ±20% (rated output voltage)
- Over-load Protection: 105% to 150% (rated load), self-recovery
- Over-voltage Protection: 115% to 135% (rated output voltage)
- Short-circuit Protection: self-recovery
- Output Start Time: ≤2S@120VAC; ≤1S@230VAC
- Output Duration Time: ≥10mS@120VAC; ≥20mS@230VAC
- Working Environment: -20℃ to 55℃, 20% to 93%RH (no silver frost)
- Storage Environment: -40℃ to 85℃, 10% to 95%RH
- Cooling Method: Control Temperature through cooling fan
- Safety Standards: Design according to GB4943, UL60950-1, EN60950-1
- EMC Standard: Design according to GB9254, EN55022 CLASS A
- Withstand Voltage Test:
  I/P-O/P: 1500V AC/1min
  I/P-FG: 1500V AC/1min
  O/P-FG: 500V AC /1min
- Dimensions: 310*205*50mm

Package Included:
- 1 x Power Supply Distribution Box for CCTV Camera
- 1 x Key
- Other Fixing Accessories
