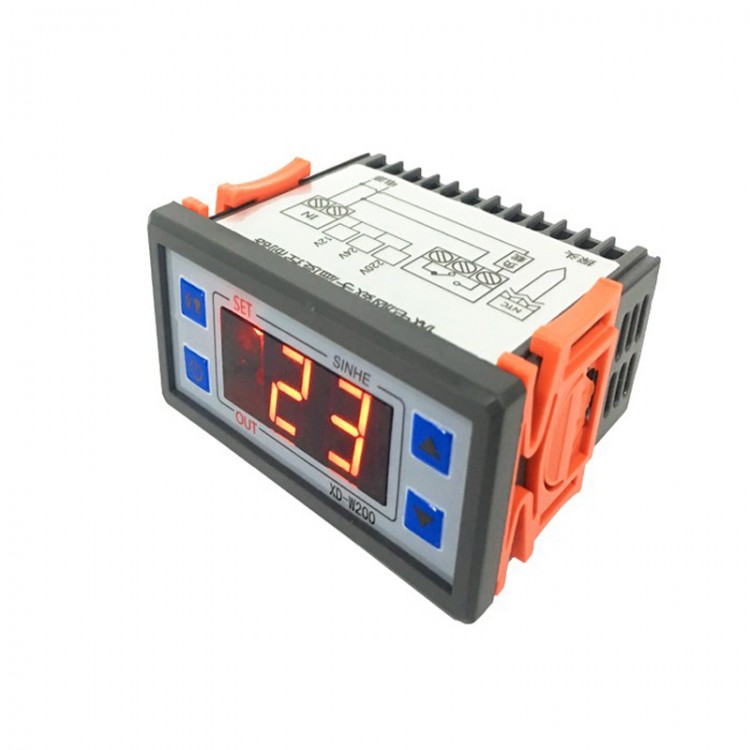

12V/24V/220V Digital Temperature Controller Thermostat Module w/Waterproof Sensor XD-W200

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.42
  • Price in reward points: 154 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $15.11 $14.80 $14.34 $13.72 Contact US
Quantity:

12V/24V/220V Digital Temperature Controller Thermostat Module w/Waterproof Sensor XD-W200

Specifications:

- Model: XD-W200
- Temperature Range: -19℃ to 99℃
- Control Accuracy: 1℃
- Measurement Input: NTC10K Waterproof Sensor 1m
- Refresh Rate: 4 times/s
- Environmental Requirements: -30 to 60℃, Humidity 20% to 85%
- Output Type: Relay output 10A Max.
- Optional Input Voltage: 12V, 24V, 220V
- Hole Spacing: 71 x 29mm
- Dimensions: 77 x 62 x 34.5mm
- Functions: Power Memory, Status Memory, Temperature Calibration, Delay to Start, High-Temperature Warning

Package Included:

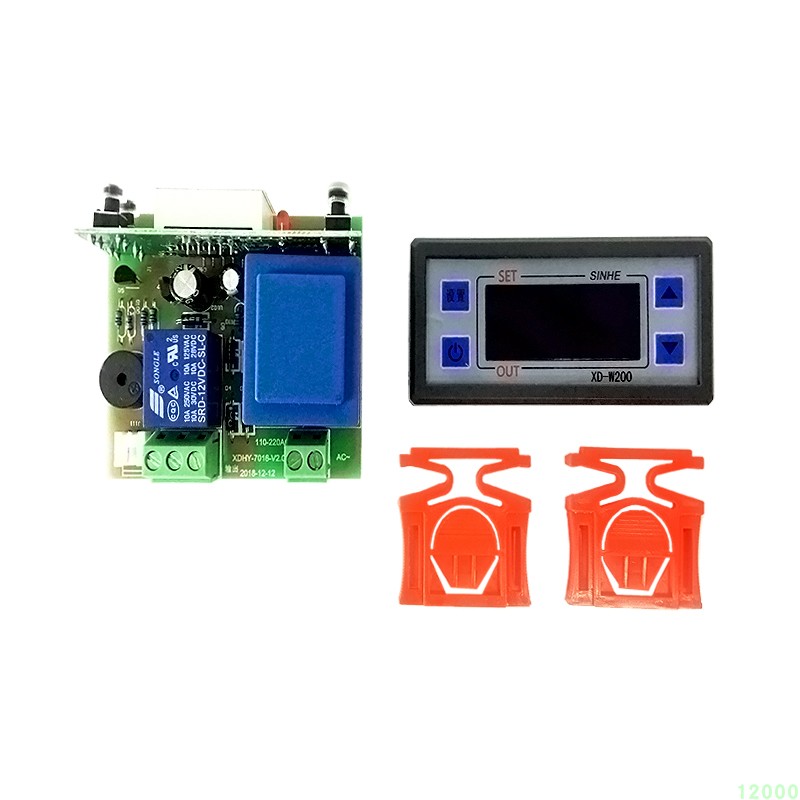

- 1 x Digital Temperature Controller with 1m Sensor

Note: Optional Input Voltage: 12V, 24V, 220V. Please tell us the voltage you want when purchasing. Thank you!

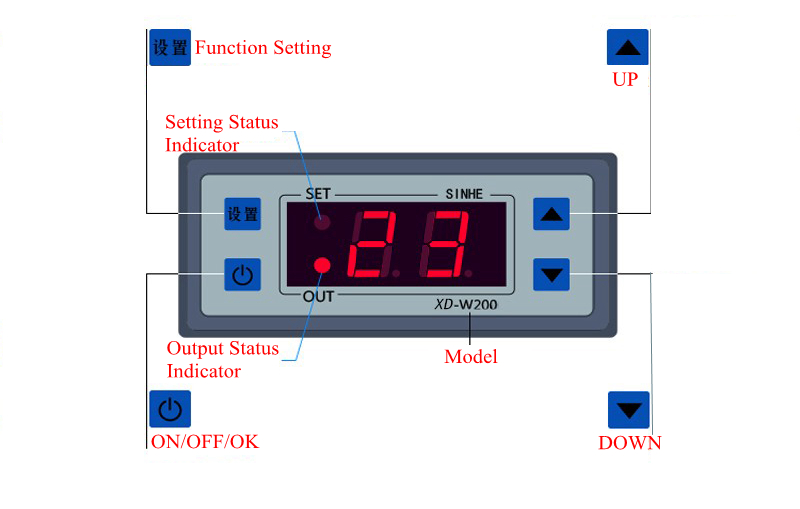

Introduction of Codes:
- HC: Working Mode (Settable Range C/H)
- D: Hysteresis Error of Instrument (Settable Range 1 to 50℃)
- CA: Temperature Calibration (Settable Range -9 to 9℃)
- PT: Delay to Start (Settable Range 0 to 9 minutes)
- HH: High Temperature Waring (Settable Range -19 to 99℃)
