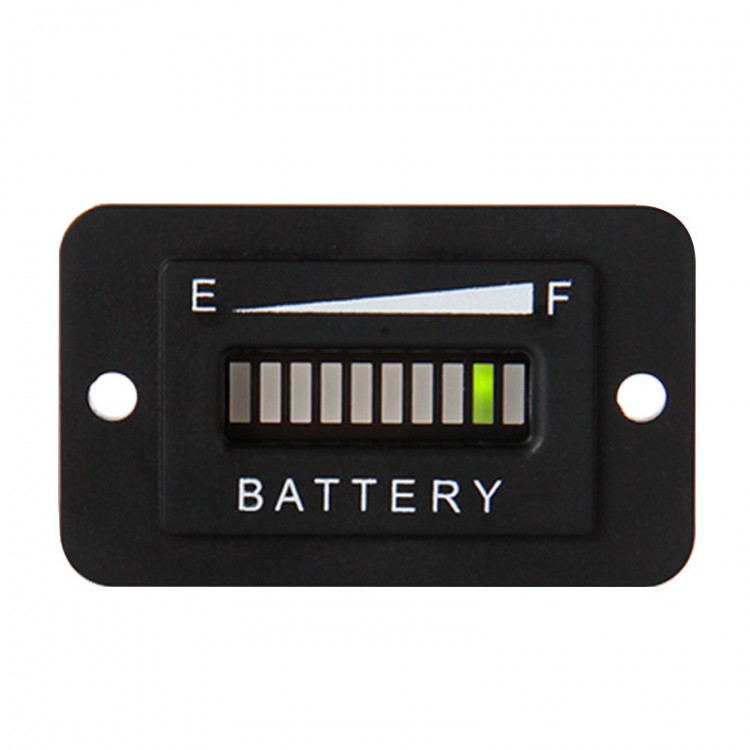

12V/24V Battery Indicator Meter Gauge For EZGO Club Car Yamaha Golf Cart
Features:
- Works with 12V / 24V Lead-Acid Batteries in Golf Carts, Forklifts, Trucks, RV's, ATV's, UTV's, Scooters, Boats and More
- Material: ABS
- Waterproof, IP65
- Temperature Range: -40F to 185F
- Connection: Pin+ Battery+ Pin- Battery- C-single output for external use
Operation:
- Only when the battery is properly charged then the 10th LED (far right) will be lighted.
- As battery’s state of charge decreases, successive LED lights up, only one at a time.
- When 2nd (from left) LED flashes, indicating "energy reserve". When both 1st and 2nd LED flash, indicating "empty", new battery is needed to replace old one.
- Battery indicator memorized the battery state is full when leaving factory. When use with a new battery, it should be powered on for at least 2 minutes to indicate the real battery state.
- Range indication: Green: 41~100%, Yellow: 21~40%, Red: 20% less.
- Forklift trucks, Golf Carts, RV's, Boats, Scooters and electric vehicle etc.
- Dimensions: Cut-off: 1.5"x1", distance between holes: 1.75", depth: 1.5"
- Case Style: Front Panel Mount
Package Included:
- 1 x 12V/24V Battery Indicator Gauge
- 1 x Set of Accessories
- 1 x User Manual
Note:
- 12V/24V, 36V, 48V battery indicators are available in our store. You can select at your will. Any questions please feel free to contact our service center. Thank you!
