Specification:

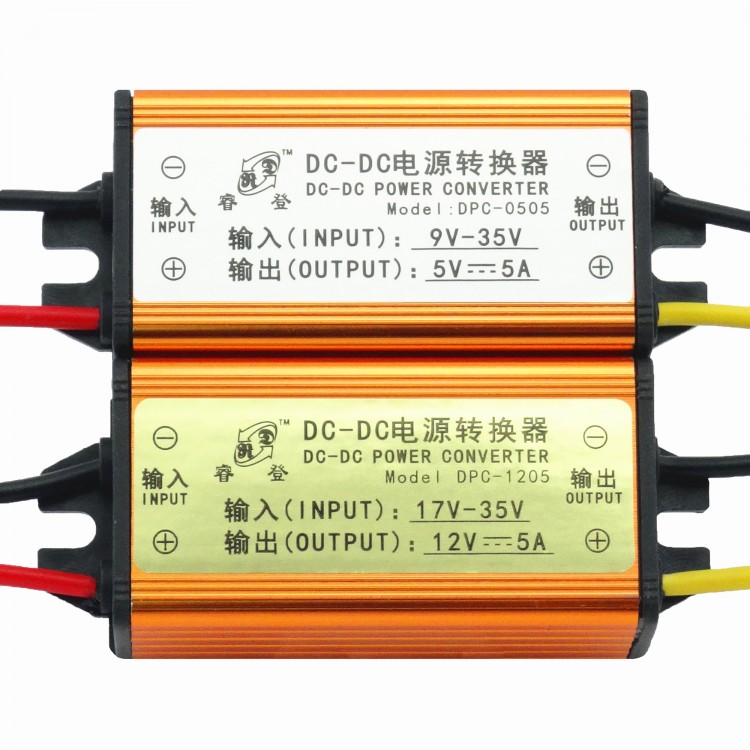

- Mode:DPC-0505

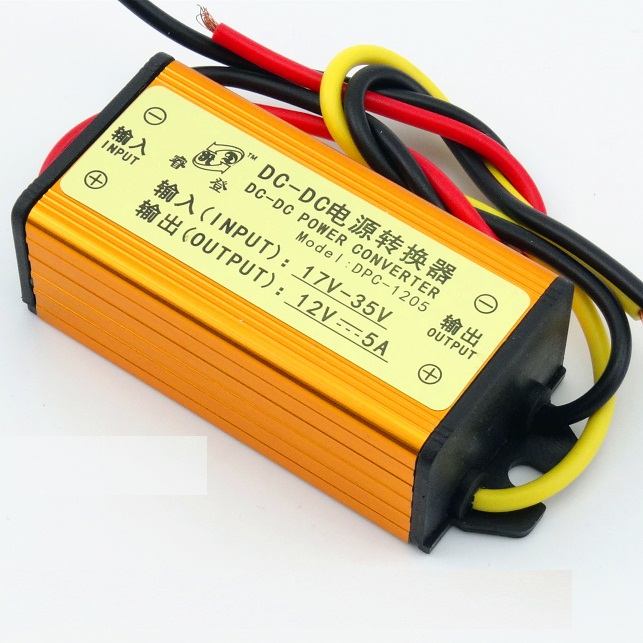

- Input voltage:9V-35V (5V version)17V-35V(12V version)
Output voltage:5V/12V
Output current:5A (continuous work) the max 7A
Weight:67g

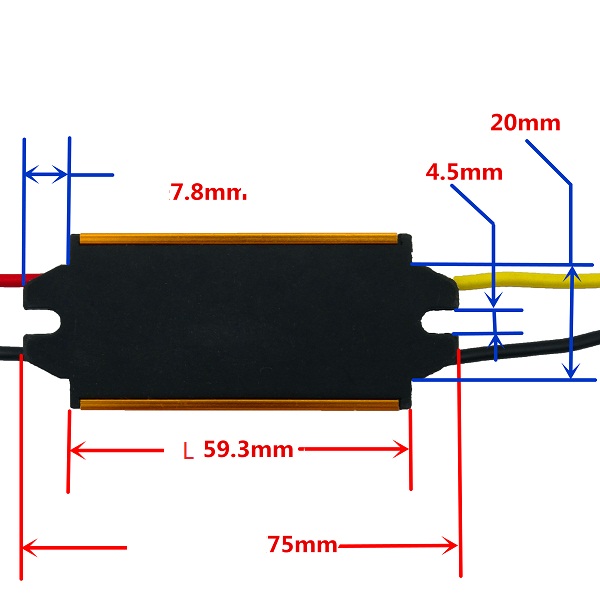

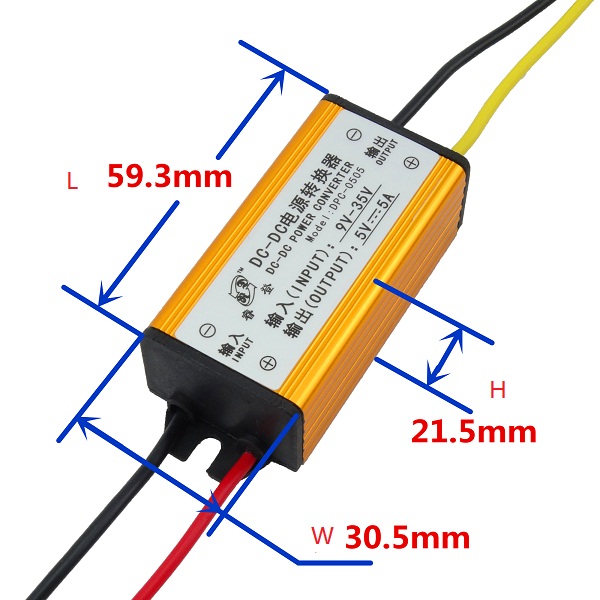

Dimension:59.3mmX30.5mmX21.5mm(Fixed hanger is not included.)
Module:non isolated buck module (BUCK)
Rectification:Synchronous rectification
Minimum voltage differential:4V
Convert efficiency:the max up to 95%
Output ripple:50mV(MAX)
Working temperture:industry level(-20℃~+85℃)(temperture>40 degree,please reduce power or enhanced heat dissipation)
Load regulation rate:±1%
Voltage regulation rate:±2%
Short circuit protection:Sustainable & self-recovery
Input reverse connection protection:yes,MOS prevention of feedback circuit
Cable connection:red cable input+/black cable common- /yellow cable output-
Application:
- Bus, minibus, large freight car, motor car, solar power, bus display, taxi advertising screen.
- Car audio, LCD TV, LED, on-board navigation, on-board radio, walkie talkie and monitoring systems.
Package List:
- 1 x DC-DC Power Converter
