12V Bluetooth 5.0 Decoder MP3/WMA/WAV/FLAC/APE Audio Decoding Board w/ Recording Hands-free Calling
Description:

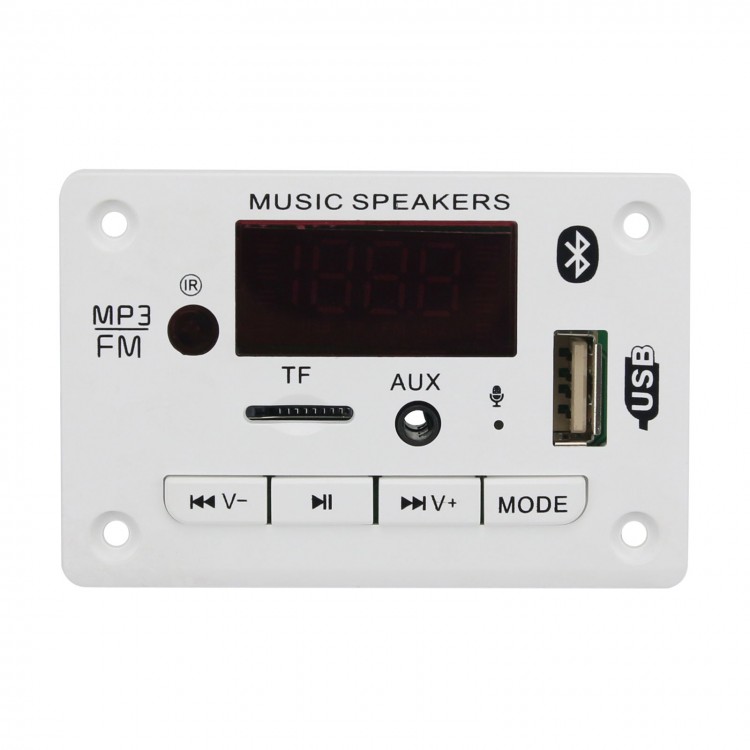

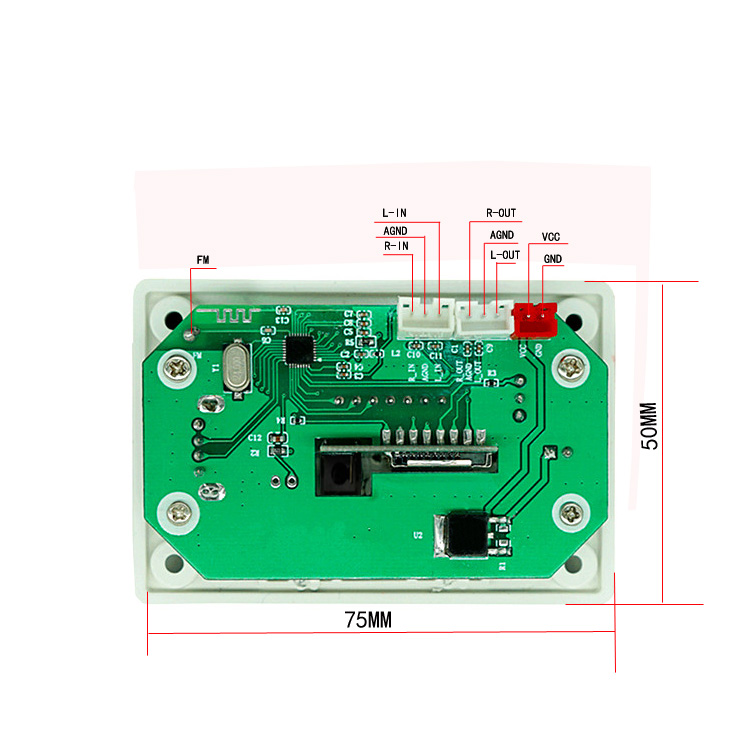

The panel size is 75*50mm*18mm. The decoder board supports audio decoding MP3, WMA, WAV, FLAC/Bluetooth call function/with recording function/read USB disk/read TF card/FM radio/AUX audio input/infrared remote control/shutdown memory/12V power supply.
Features:
1. Double decoding, supports music in MP3/WMA/WAV/FLAC/APE format.
2. Support Bluetooth call function.
3. With recording function.
4. Digital color screen.
5. Support TF card interface, support USB interface (U disk).
6. Shutdown memory function.
7. Support infrared remote control operation, distance 10 meters.
8. Support external audio source input line input.
9. Support FM radio, radio collection frequency range (87.5MHz-108.0MHz).
10. Buttons: Four-key multi-directional control, vol-/automatic/vol++/mode.
11. DC 12V power supply, recommended 1-3A.
Recording Function:
1. Hold down the mode button to start recording, then press the mode button again to cancel the recording function.
2. Press the mode button again to play the recording file.
3. When recording, you need to connect a storage device, such as: U disk or TF card.
MIC: support call and recording function

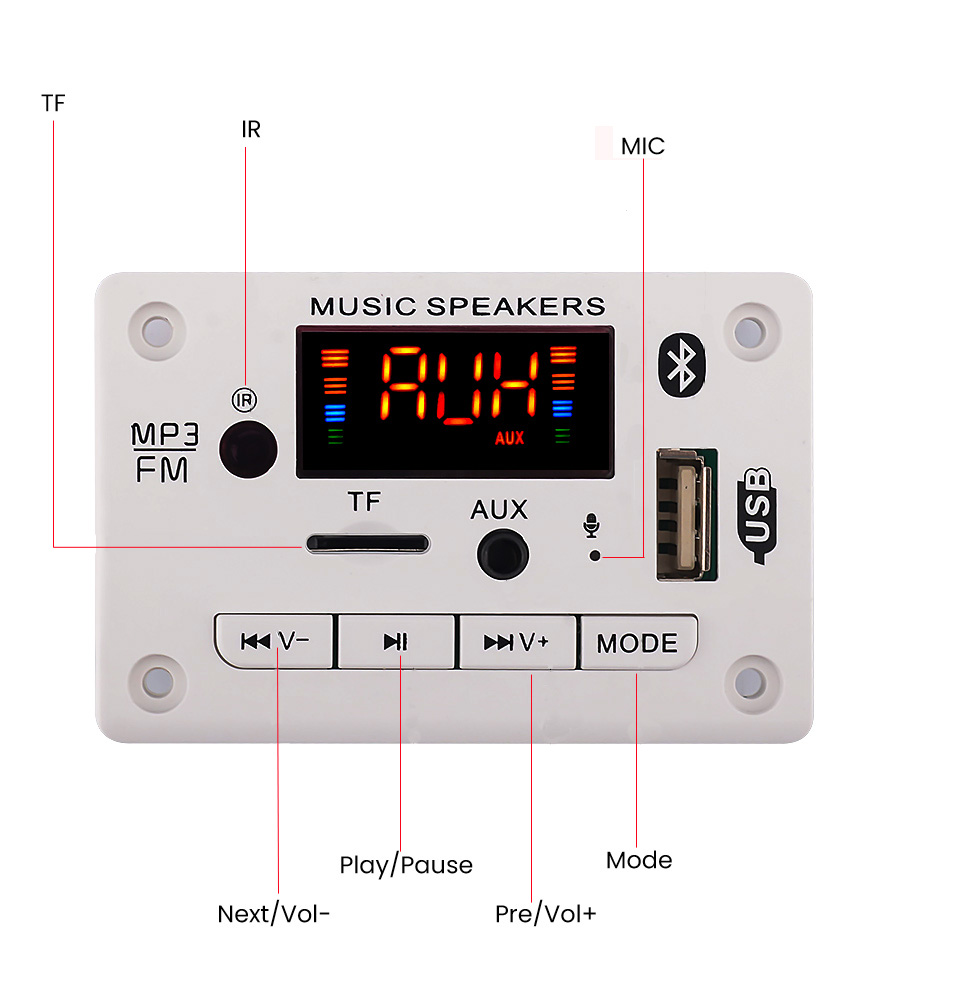

Button Operation:
1. Volume button (previous song/lower volume): In MP3 state, short press vol is the previous song, long press is to decrease the volume; in FM state, short press will increase the number of stations; under the Bluetooth function, short press is the last Bluetooth song, long press is to lower the volume.
2. Auto button (play/pause): In MP3 state, short press play/pause automatically; in FM state, short press to play/pause, long press to automatic reception and coexistence; under Bluetooth function, short press to play/timeout .
3. Volume+ button (next song/volume increase): In MP3 state, short press volume+ is the next song, long press is the volume increase; in FM state, short press can turn down the radio frequency; under the Bluetooth function, short press the function to play the next Bluetooth song, long press to play with low volume.
4. Mode button: Switch between USB/SD/FM/Audio input/Bluetooth function in turn.
Package List:

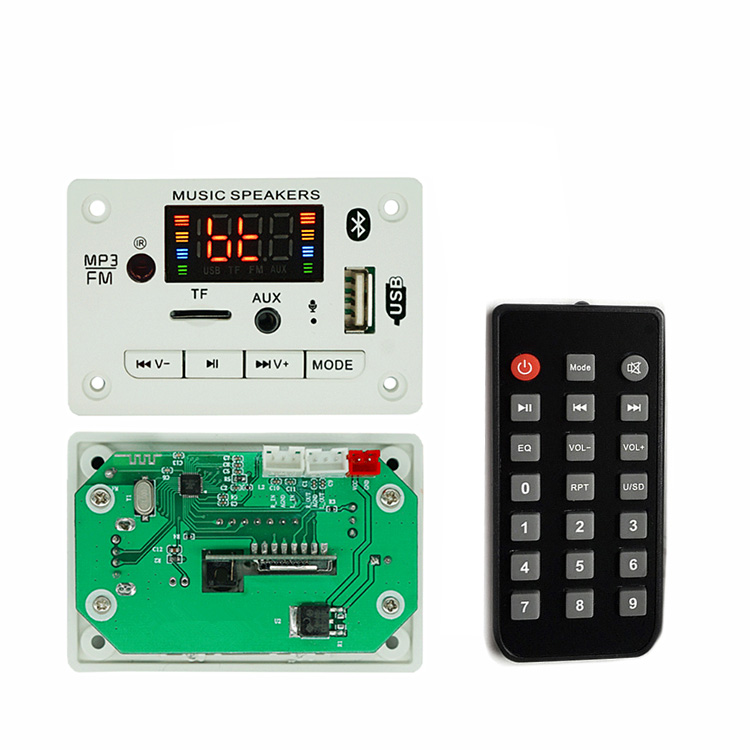

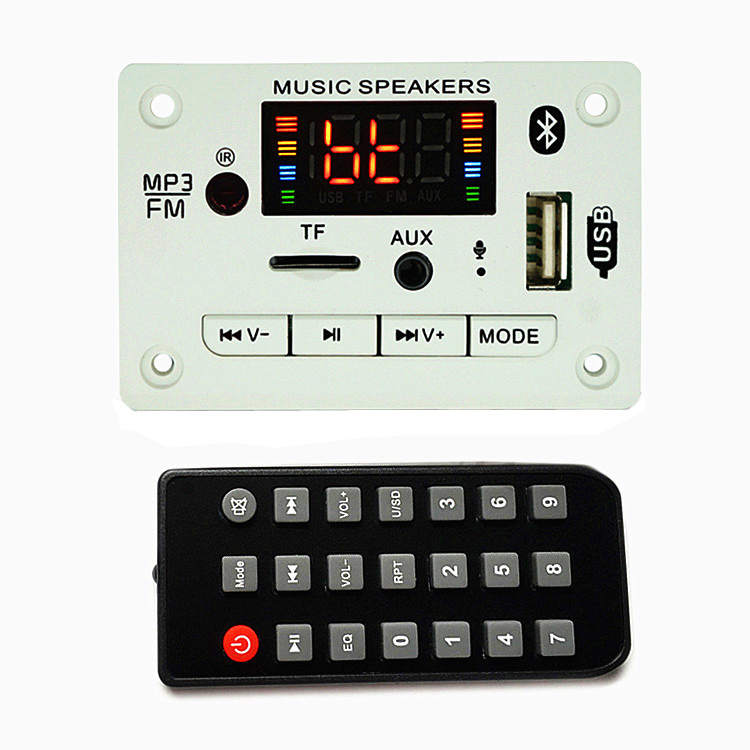

-1 x Audio Decoding Board
-1 x Remote Controller
