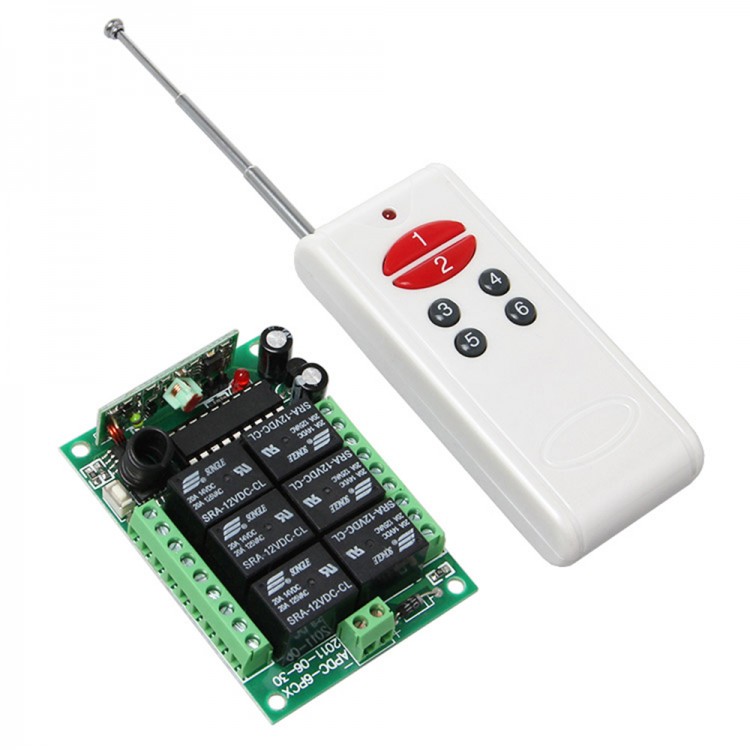

12V DC 6 Channel RF Wireless Relay Remote Control Home Control Switch System Light Switch

12V DC 6 Channel RF Wireless Relay Remote Control Home Control Switch System Light Switch

Description:
This 6-channel multifunction RF receiving controller is for sending open signal and close signal to 6 relays. It can be used to turn on/ off, connect/disconnect or implement other specific controlling program on the controlled devices or motor.  Typical applications for relays include fields of electronically operated gate, windows, lifting appliance, switch, lifter, industrial control, security industry etc.

The RF controller has the advantages of high confidentiality, high stability, low power, and use expediently; no need for traditional connecting wire or dial fixing code switch, all you need to do is learn to match the code of the remote controller and the receiving controller.
Output mode:

APDC-6PCX has 5 output modes: self-lock, interlock,non-lock,  3 relays self-lock coexisting with 3 relays non-lock and 1relay self-lock coexisting with 5 relays non-lock.
1. Self-lock : press 1
Press key 1, the corresponding relay will be actuated and keeps closed. Press 1 again, the relay 1 is disconnected. Press 2, the corresponding relay is actuated and keeps closed, press 2 again, relay 2is disconnected. 3, 4, 5 and 6 works in the same way.
2. Interlock  : press 2
Press 1, the corresponding relay will be actuated and keeps closed. When you press 2, relay 1 will be disconnected and relay 2 is actuated simultaneously and keeps closed. Relay 3, 4, 5 and 6 works by that analogy.
3. Non-lock : press 4
Press 1, the corresponding relay is actuated and it is disconnected right after you release the key 1. Relay 2, 3, 4, 5 and 6 works in the same way.
4. 3 relays self-lock coexisting with 3 relays non-lock  : press 3
Among the 6 relays corresponding to the remote control, relay 1/2/3/ are in self-lock mode, relay 4/5/6 are in non-lock mode.
5. 1 relay self-lock coexisting with 5 relays non-lock : press 5
Among the 6 relays corresponding to the remote control, relay 1 is in self-lock mode; relay 2/3/ 4/5/6 are in non-lock mode.

Learning method:
1. You will enter learning state after the led indicator of the receiver blinks in 2 seconds. Press any key on the controller; if the led indicator blinks once, it has received the signal, and the learning is successful. Press the learned key; you can control the corresponding relay now. After the learning, the remote can work.
2.  If a learned remote controller gets lost, you should clear the stored information in the receiver controller. Thus, the lost one cannot controller the receiver any more. A new one must be learned according to the above method.

Clear the code:
Long press the learning key on the receiver for about 8 seconds, if the indicator light is off after 2 times of blink, the existing code is cleared. This receiver can store as much as 30 different remote control codes.

Technical Specifications:
- Operating voltage: DC12V
- Static current: ≤300mA
- Load control: alternating current/direct current
- Output current:  ≤10A
- Operating frequency: 315MHz
- Receiver sensibility: -105dbm
- Operating temperature: -20 - +70
- Size: 68*48*18mm
- Weight:102g(including the remote controller)
- Remote control distance: 200m (in wide-open area)

Package included:
- 1 x Transimitter (Without battery)
- 1 x Receiver
