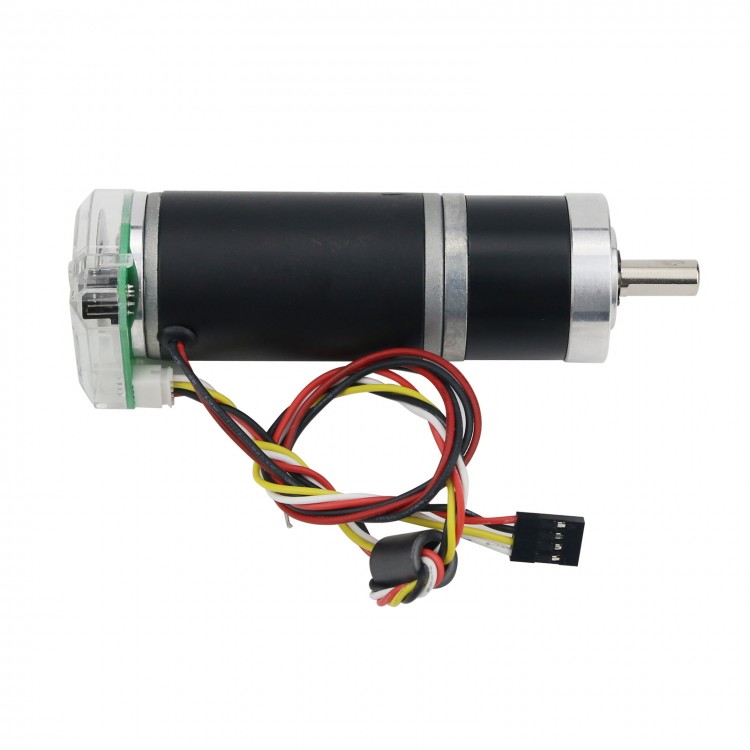

12V Speed Reduction Gearbox Planetary Gear DC Motor GP36 + 500-Wire Photoelectric Encoder for DIY
Description:
GP36 planetary geared motor with high speed and high torque, rated working voltage 12V, single motor load can reach 12.2Kg.cm (1:27 reduction ratio). Compared with some ordinary dc motor, our planetary gear reducer has internal zero-gap connection, so the output shaft has no virtual position, and the output shaft is made of high-strength steel with good dynamic load capacity.
The end is matched with a set of high-precision speed measuring code discs. The precision of the code disc is 500 lines. It adopts the DuPont head output structure of the silicone wire and magnetic ring.
Wiring of Encoder:
- Red Wire: VCC (Power Supply +)
- Black Wire: GND (Power Supply -)
- Yellow Wire: Phase A (Signal Wire)
- White Wire: Phase B (Signal Wire)
Parameters:
Package Included:
- 1 x Motor
- 1 x Photoelectric Encoder
