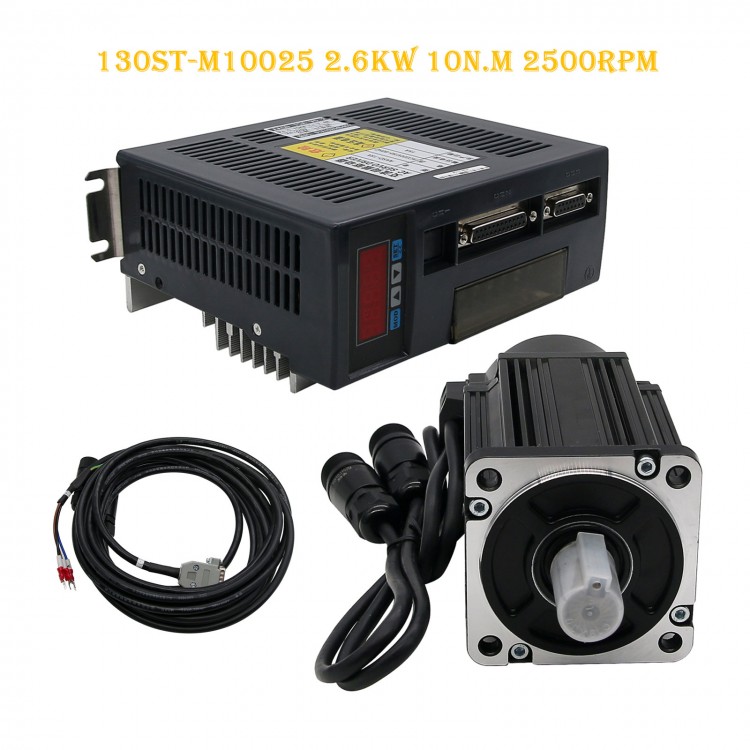

130ST-M10025 AC Servo Motor Kit 2.6KW 10N.M 2500RPM + Driver + Cables Servo Motor Kit
Package Included:
- 1 x Motor
- 1 x Driver
- 1 x 3Meter Motor Cable
- 1 x 3Meter Encoder Cable
- 1 x 25-Core Parallel Connector
Specifications:
- Model: 130ST-M10025
- Rated power: 2.6 KW
- Rated voltage: 220V
- Rated current: 10A
- Rated speed: 2500rpm
- Rated torque: 10N.m
- Peak torque: 25N.m
- Voltage Constant: 70V/1000r/min
- Torque Coefficient: 1.0 N.m/A
- Torque Inertia: 1.94*10-3 Kg.m2
- Winding Resistance: 0.73 Ω
- Winding Inductance: 2.45mH
- Electrical Time Constant: 3.36ms
- Encoder Line Number: 2500
- Motor insulation class: Class B (130°C)
- Protection class: IP65
- Operating environment:
Ambient temperature: -20°C to 50°C
Relative humidity: <90 %( no condensation conditions)
Applications:
- CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.
Note:
Please contact us, if you need:
- Motor with Brake
- MODBUS communication function for RS-232 and RS-485
- Customized 380V motor
