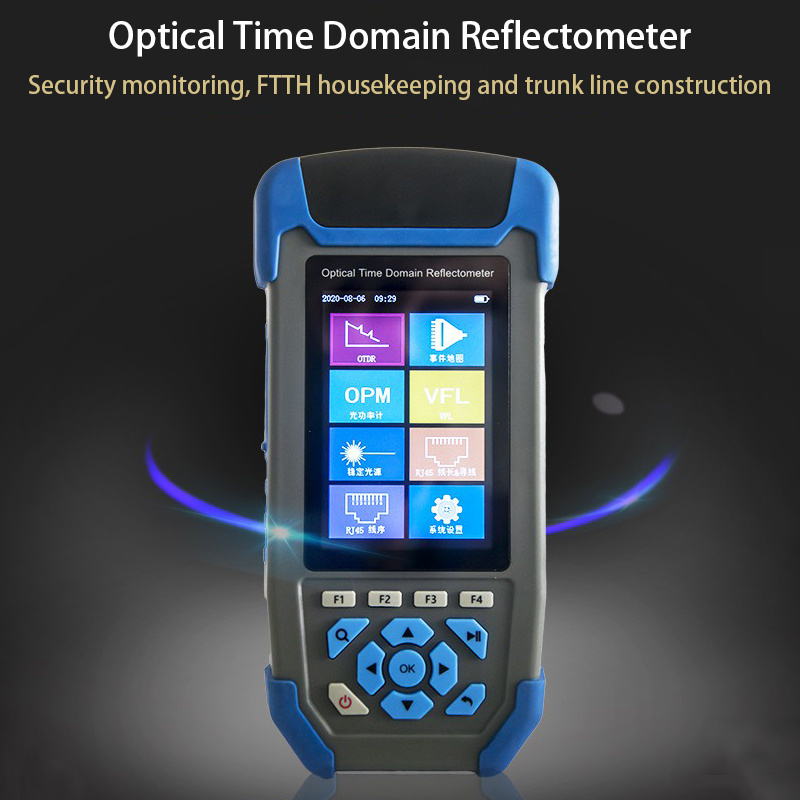

1310/1550nm JW3302SJ Mini-Pro OTDR Optical Time Domain Reflectmeter for Access Network Construction and Maintenance

Availability: In stock, usually dispatched in 1 business day

  • Price:$172.31
  • Price in reward points: 1723 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $168.86 $165.42 $160.25 $153.36 Contact US
Quantity:

1310/1550nm JW3302SJ Mini-Pro OTDR Optical Time Domain Reflectmeter for Access Network Construction and Maintenance

Description:

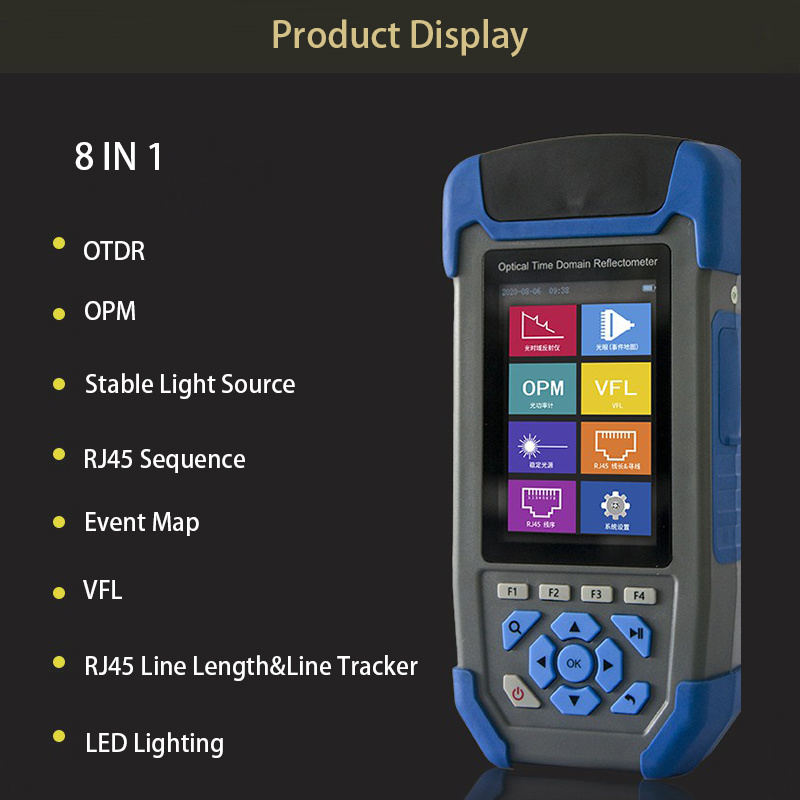

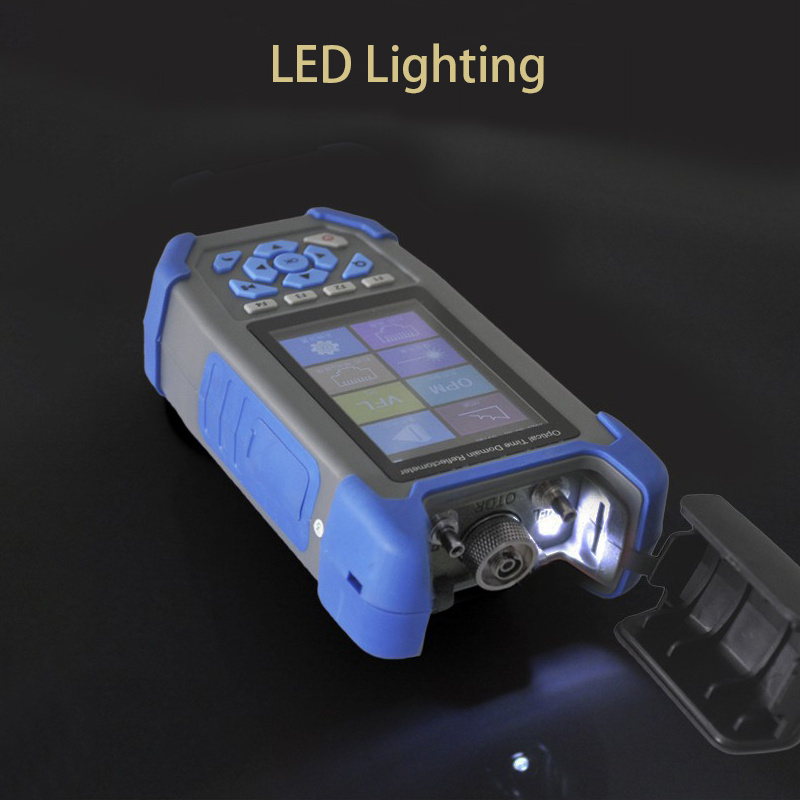

- Online Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source, Optical power meter, Visual fault locator, cable sequence proofreading, IL and lighting functions. It could quick detection of breakpoint, universal connector, 600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging. It is a good choice for long term field work.

Specification:
Mini-Pro OTDR:
- Model: JW3302
- Wavelength: 1313/1550nm
- Fiber type: G.652 SM Fiber
- Dynamic range: 24dB/22dB
- Event blind zone: 3m
- ATT blind zone: 8m
- Test range: 10m~60km
- Pulse width: 5ns~10us
- Ranging accuracy: ±(1m+Sampling Interval +0.005% x Test Distance)
- Loss accuracy: ±0.2dB/dB
- Sampling Points: 16k~128k
- Sampling resolution: 0.05m~8m
- Reflection accuracy: ±3dB
- Data storage: Internal: ≥600; External: TF Card
- Laser safety level: Class II level
- File format: SOR standard file format
- Connector: FC/UPC

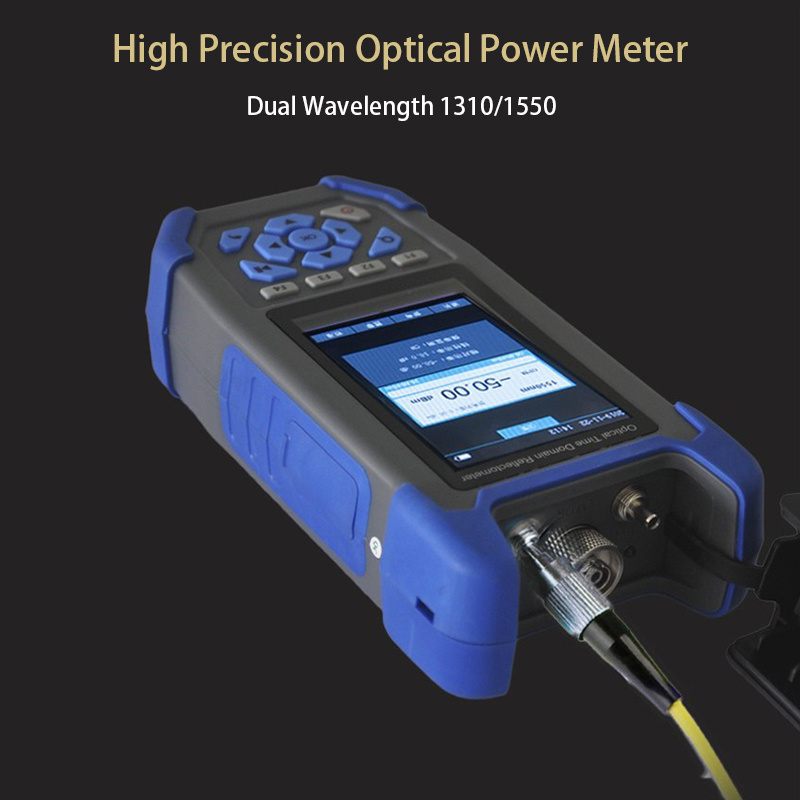

OPM:
- Wave range: 800nm~1700nm
- Interface type: Universal Joint FC/SC/ST
- Test range: -50dBm ~ +26dBm
- Uncertainty: ±5%
- Frequency identification: CW/270/330/1k/2kHz
- Calibration wavelength: 850/1300/1310/1490/1550/1577/1625nm

LS:
- LD type: FP-LD
- Output wavelength: 1310/1550nm
- Output power: ≥-5dBm
- Modulation frequency: 270/330/1k/2kHz
- Stability: CW, ±0.5dB/15min (Test after15mins of preheating)
- Connector: FC/UPC

VFL:
- Wavelength: 650nm±20nm
- Output power: ≥10mW
- Mode: CW/1Hz/2Hz
- Connector: FC/SC/ST

Other parameters:
- Display: 3.5inch Color LCD
- Data interface: Micro USB
- External storage: TF Card
- Power supply: Polymer Li-battery: 3.7V, 4000mAh; Power adapter: 5V DC, 2A
- Battery life: standby >20h; measuring time >12h
- Operating temperature: -10℃ ~ +50℃
- Storage temperature: -40℃ ~ +70℃
- Relative humidity: 0 ~ 95% Non-condensing
- Weight: ≤350g
- Dimension: 173 x 82 x 37mm

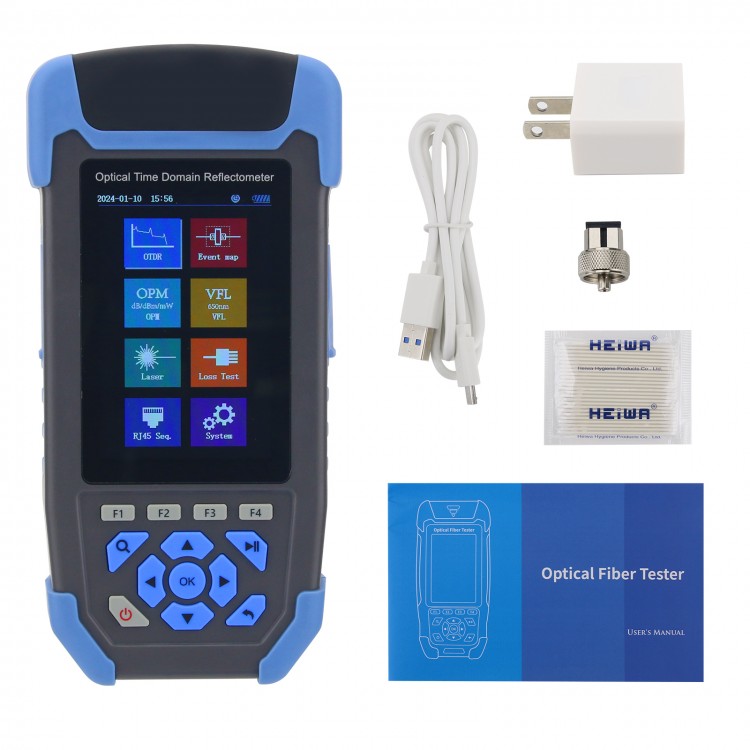

Package Included:
- 1 x Host
- 1 x Adapter
- 1 x Data Line
- 1 x User Manual
- 1 x FC/UPC Connector
- 1 x Clean Cotton Slices

Note:
- Test temperature: 25℃±2℃, Maximum pulse width, average time ≥3min
- Test conditions of Event Blind Zone are minimum range, minimum pulse width, reflection loss of optical end ≥45dB, typical value.
