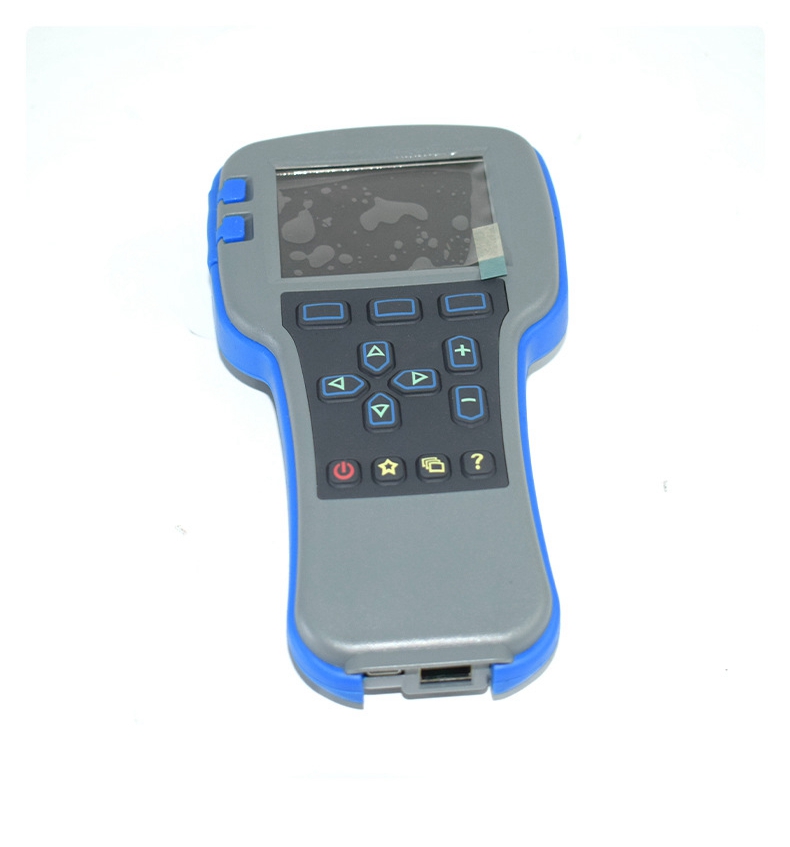

1313K-4331 Handheld Unit Programmer High Quality Electric Forklift Accessory Compatible with Curtis
Description:
- The 1313 handheld programmer is used to configure motor control systems for Curtis. With the programmer, you can adjust and save parameter settings, monitor real-time data, and perform diagnostics and troubleshooting.
- The 1313 handheld programmer is a powerful and intuitive programming and diagnostic tool. It enables parameter files to be created and edited online or offline, transferred to another controller for cloning, or saved onto a PC or SD card.
Features:
- Direct access to applicable replacement for Curtis motor speed controllers via CANopen .
- Fully replacement for Curtis next gen F series and all existing 1313 programmable motor speed controllers. Large high resolution color display shows multiple parameters simultaneously for quick adjustment.
- Backlight for easy viewing in low-light environments.
- Cloning feature and 64Mb internal memory allows multiple parameter files to be stored in the Handheld Programmer, making it easy to transfer settings to other vehicles.
- Advanced troubleshooting capabilities for all vehicles that use replacement for Curtis programmable motor controllers or control systems.
- Replacement for Curtis programmable motor controllers or control systems. AA Battery compartment allows programs to be edited without having to be connected to a system.
- Monitoring function allows real-time viewing of controller activity.
- Icon based graphical user interface allows for quick and intuitive menu navigation.
- Dedicated buttons for Help and Favorites provide for direct access to commonly used features.
- Comprehensive help text offers solutions and information at the touch of a button.
- Easily upgradeable via USB to ensure compatibility with future products and features.
Specification:
- Product name: handheld programmer
- Material: thermosetting BMC material
- Application: controller programming, program copy, view vehicle fault codes, etc.

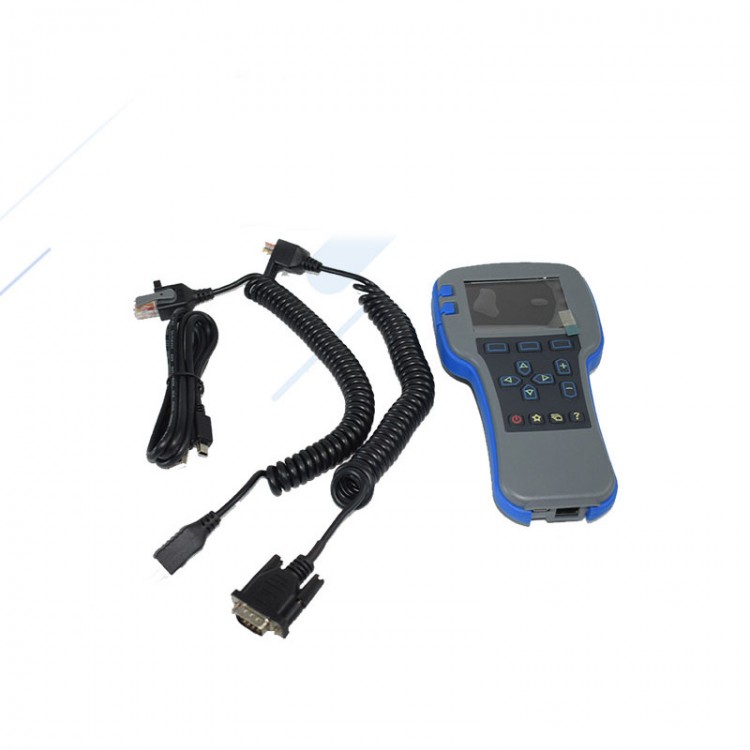

Package Included:
- 1 x Handheld Programmer
Note:
- Battery is not included.
