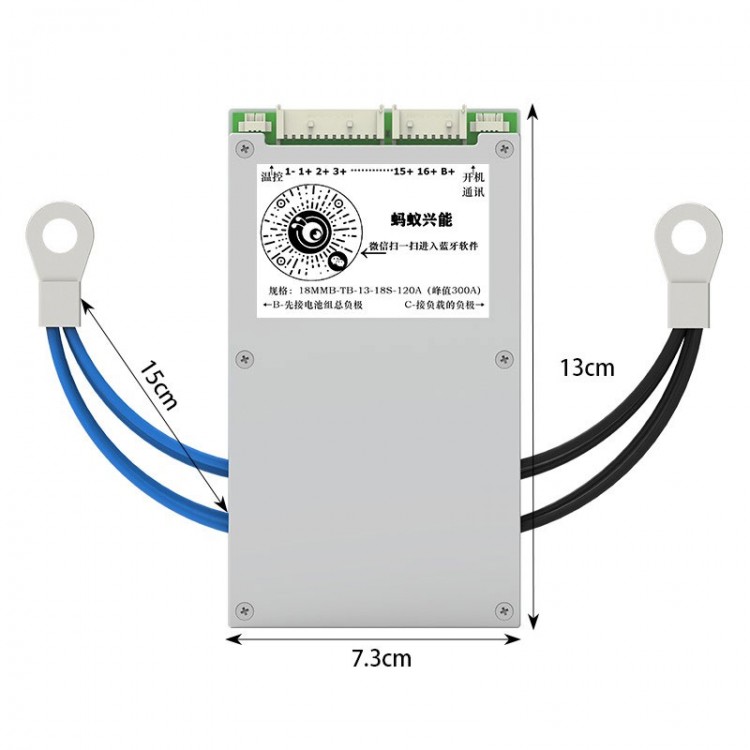

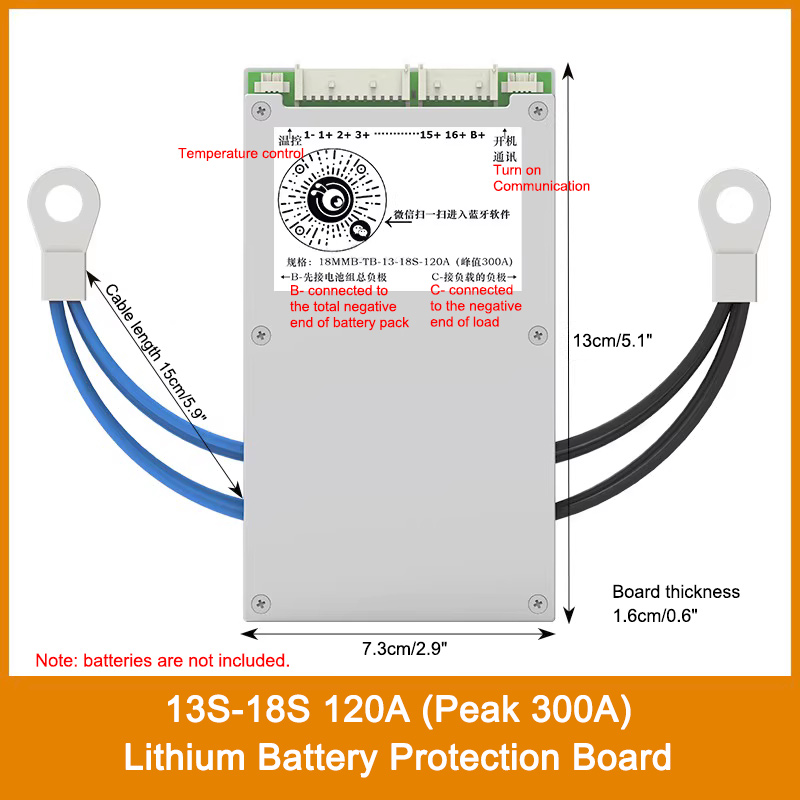

• 13S-18S 120A (Peak 300A) BMS Lithium Battery Protection Board without 3.8 Inch LCD Screen Display

13S-18S 120A (Peak 300A) BMS Lithium Battery Protection Board without 3.8 Inch LCD Screen Display

Availability: In stock, usually dispatched in 1 business day

  • Price:$67.63
  • Price in reward points: 676 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.28 $64.92 $62.90 $60.19 Contact US
Quantity:
13S-18S 120A (Peak 300A) BMS Lithium Battery Protection Board without 3.8 Inch LCD Screen Display

Description:

The lithium battery protection board is the newest version! It has an English APP for iPhone IOS/Android, and a computer software. There is a built-in Bluetooth.

And BMS also supports computer software (you need to buy usb adapter separately).

More functions are being explored now.

Attention:
The newest BMS must use the newest APP or software! An old APP can't program the newest BMS! Please contact us for the newest app and other documents before using!

Information:
- Continuous discharge 120A and peak discharge 300A
- Charging current: 50A
- Balance current: 100MA
- Wiring method: same port
- Single cell voltage: detection range 1V-4.6V, accuracy less than 5Mv
- Overcharged and paid: protected
- Short circuit protection: short circuit protection current can be set
- Bluetooth connection: for Android phones
- Coulomb counter: accurate calculation based on current versus time
- Battery remaining capacity, error range is less than 5%
- Power consumption: 3MA at work; 1.5MA during standby

Package Included:
- 1 x Lithium Battery Protection Board

Note:
- Batteries and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
