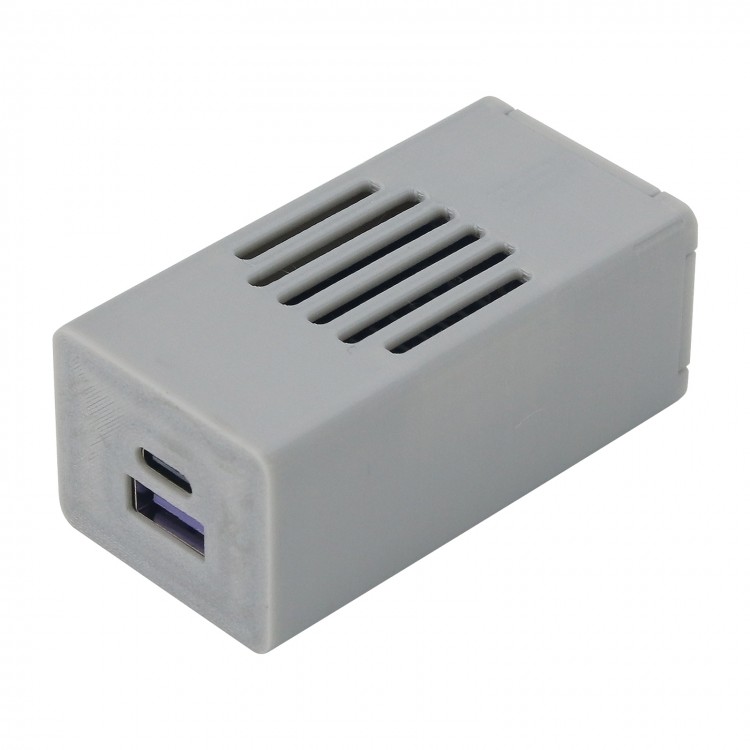

140W One-Way Fast Charging Module with Shell & Heat Sink for PD Apple Huawei OnePlus OPPO Xiaomi

140W One-Way Fast Charging Module with Shell & Heat Sink for PD Apple Huawei OnePlus OPPO Xiaomi

One-Way Version:
- The single-channel version is equipped with a large heat sink on the back to effectively reduce heat generation by 140W.
- The use of 1770 ultra-large alloy shielded inductors can effectively reduce heat generation.
- The front end adopts Japanese automotive-grade high-temperature capacitors with high frequency and low resistance.
- The back-end uses AiSHi solid-state capacitors with high frequency and low resistance.
- The use of a large package 60A MOSFET and 7mR ultra-low internal resistance improves efficiency and reduces heat generation.
- 6mR 40A MOSFET is used to reduce 7A heat generation.

Description:
The module supports the installation of a current and voltmeter, as long as it is a negative sampling (low-end sampling) meter. For specific installation tutorials, please contact customer service.

Features:
- Supports full range PPS3.3-21V 6.3A 133W
- Supports PD140W 20V7A at 140W
- Supports Super VOOC 10V 67W
- Supports QC5/QC4+/QC3+/QC2.0
- Supports AFC/FCP/high-voltage SCP/SFCP
- Protection mechanisms, including input over-voltage protection, input under-voltage protection, output over-current protection, output short-circuit protection, integrated thermistor and temperature protection to ensure safe operation
- Compatible with almost 90% of the products on the market, as long as there is a negative sampling

Specifications:
- Input voltage: DC 6-30V
- Recommended input power supply parameters: DC 24V 7A
- Buck-boost type: Buck (input should be higher than output by 1.2V)
- Input and output type: Only supports output (battery is not recommended to power the module)
- Output: USB A and USB C
- Size of input female socket: 5.5*2.1 (5521)
- Dimensions (one-way version): 68mm x 32mm x 18.2mm/2.7" x 1.3" x 0.7" (LxWxH)

Package Included:
- 1 x Fast Charging Module

Packaging Details:
- G.W.: 0.3kg

Note:
- The module has been assembled before delivery.
- Battery is not included.
- We can't guarantee that your cellphones support fast charging, because several big brands of mobile phones in China basically use private protocols, which are basically around 30W. Full power can only support original chargers.
