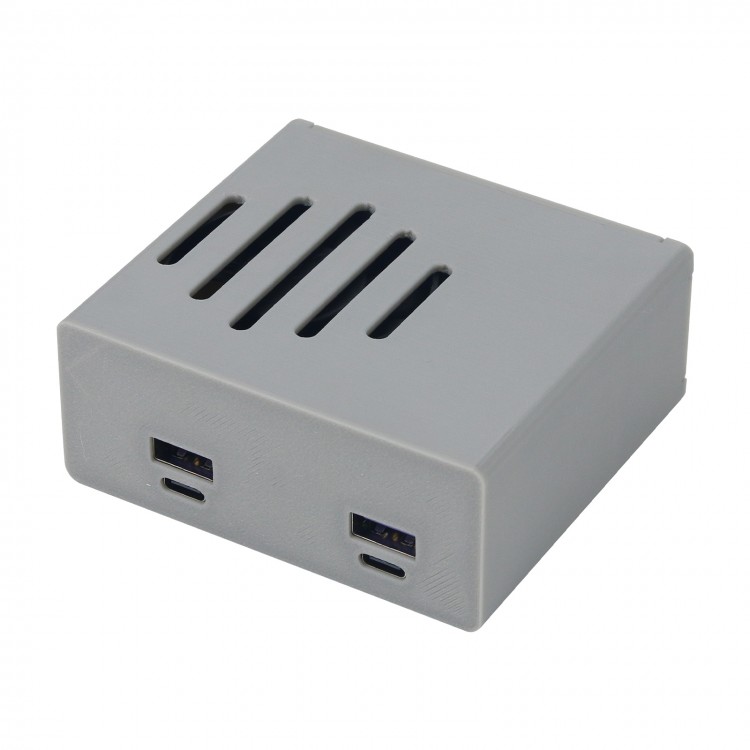

140W Two-Way Fast Charging Module with Shell & Fan for PD Apple Huawei OnePlus OPPO Xiaomi

140W Two-Way Fast Charging Module with Shell & Fan for PD Apple Huawei OnePlus OPPO Xiaomi

Two-Way Version:
The dual-channel version has an integrated temperature-controlled fan that rejects noise.

Description:
The module supports the installation of a current and voltmeter, as long as it is a negative sampling (low-end sampling) meter. For specific installation tutorials, please contact customer service.

Features:
- Supports full range PPS3.3-21V 6.3A 133W
- Supports PD140W 20V7A at 140W
- Supports Super VOOC 10V 67W
- Supports QC5/QC4+/QC3+/QC2.0
- Supports AFC/FCP/high-voltage SCP/SFCP
- Protection mechanisms, including input over-voltage protection, input under-voltage protection, output over-current protection, output short-circuit protection, integrated thermistor and temperature protection to ensure safe operation
- Compatible with almost 90% of the products on the market, as long as there is a negative sampling

Specifications:
- Input voltage: DC 6-30V
- Recommended input power supply parameters: DC 24V 7A
- Buck-boost type: Buck (input should be higher than output by 1.2V)
- Input and output type: Only supports output (battery is not recommended to power the module)
- Output: USB A and USB C
- Size of input female socket: 5.5*2.1 (5521); the two-way version has an additional XT60 female socket
- Dimensions (two-way version): 74.9mm x 83mm x 28.9mm/2.9" x 3.3" x 1.1" (LxWxH)

Package Included:
- 1 x Fast Charging Module

Packaging Details:
- G.W.: 0.35kg

Note:
- The module has been assembled before delivery.
- Battery is not included.
- We can't guarantee that your cellphones support fast charging, because several big brands of mobile phones in China basically use private protocols, which are basically around 30W. Full power can only support original chargers.
