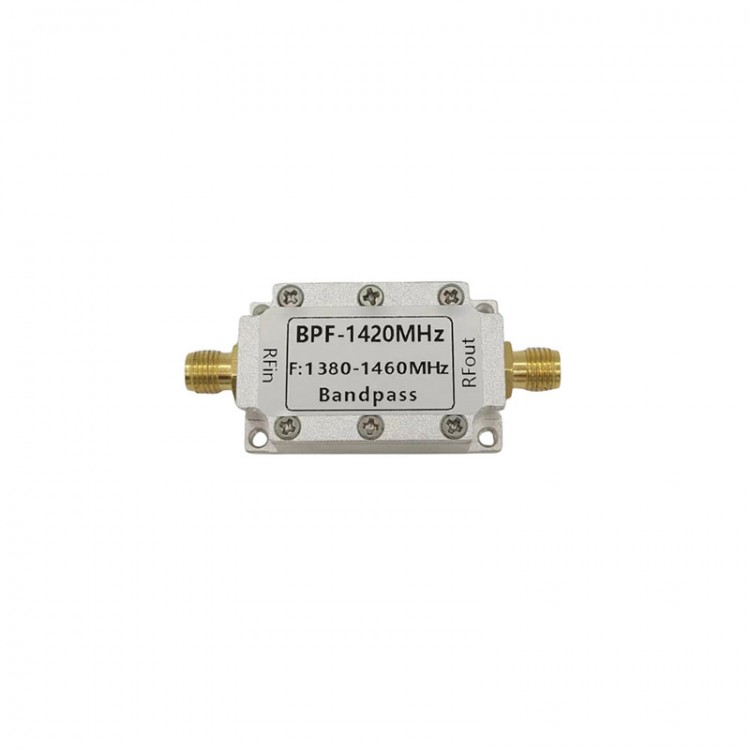

1420MHz SAW RF Band Pass Filter 50ohms SMA Female Connector for Radio Astronomy and COFDM VTX Receiver
Description:
- 1420MHz SAW bandpass filter for radio astronomy, 80MHz bandwidth, SMA interface.
- Low insertion loss, small size, using imported SAW chips.
- Application: radio astronomy and COFDM image transmission receiver

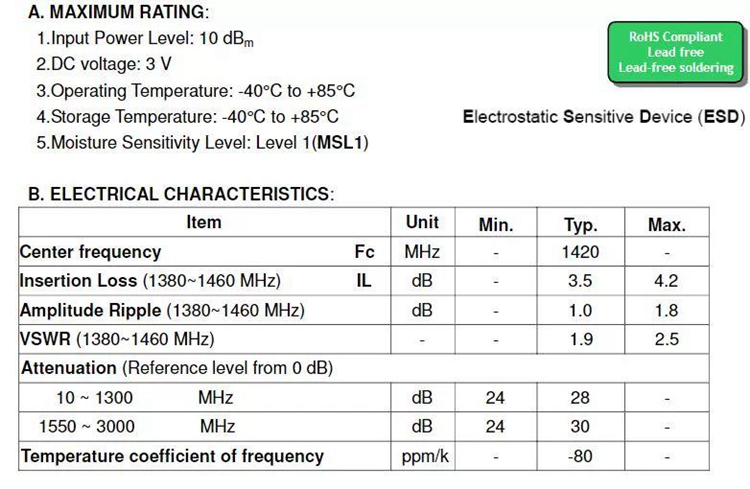

Specification:

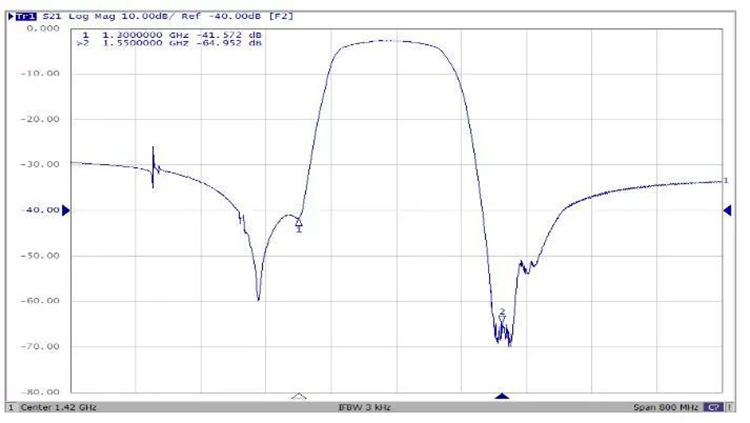

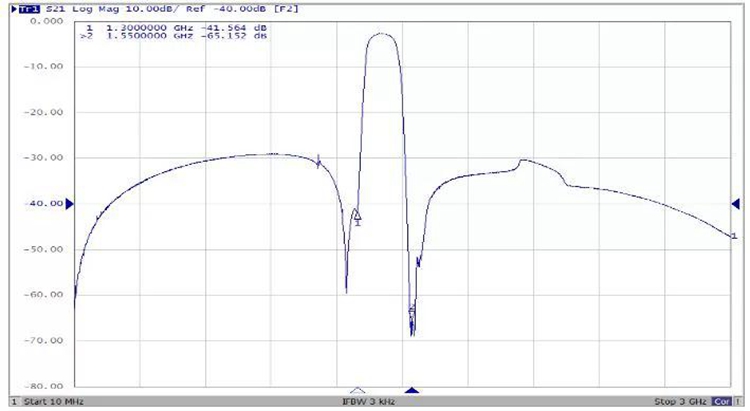

- Working frequency: 1420MHz +/- 40MHz
- Input and output impedance: 50ohms
- Withstand maximum level value: 10dBm
- Withstand maximum voltage: 3V
- Operating temperature: -40° to 85°

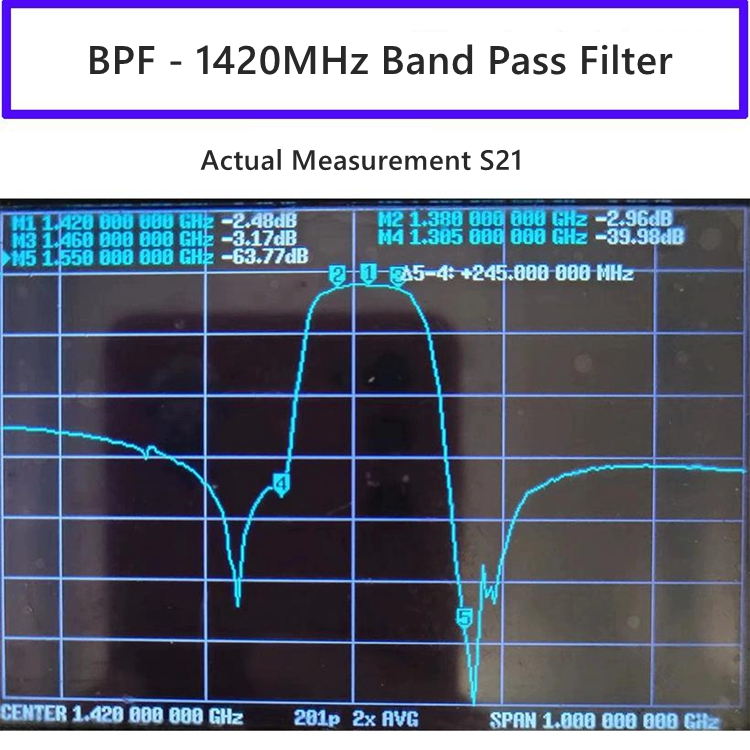

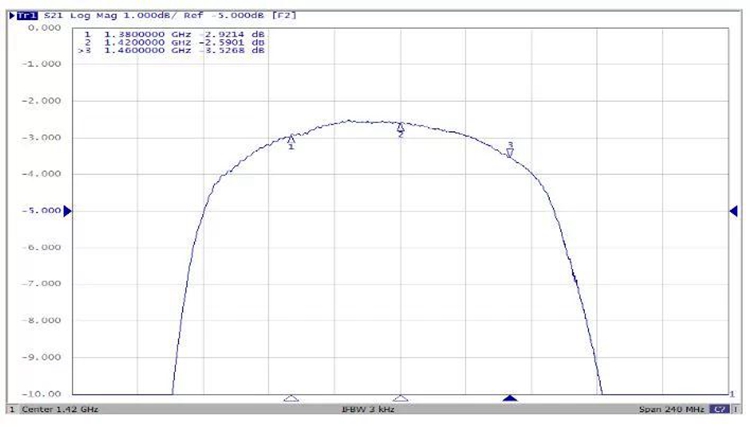

- Insertion loss: <3dB

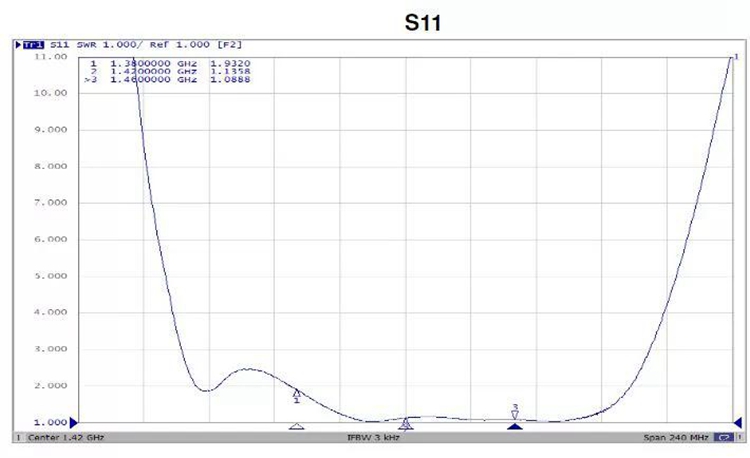

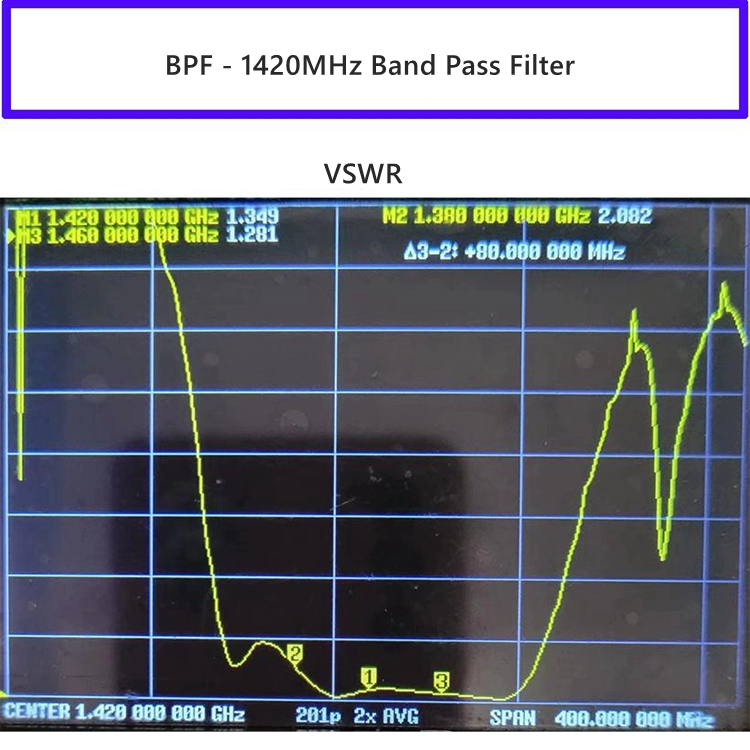

- SWR: < 2.5
- In-band amplitude ripple: < 1.8
- Filter type: SAW (surface acoustic wave)
- Connector type: SMA female connector
- Case material: aviation aluminum alloy
- Weight: 20g
Package Included:
- 1 x Band Pass Filter
