14A-100ML Hydrogen PEM Electrolyzer Hydrogen Electrolyzer for Hydrogen Rich Water Generators

14A-100ML Hydrogen PEM Electrolyzer Hydrogen Electrolyzer for Hydrogen Rich Water Generators

Description:
The hydrogen electrolyzer uses PEM technology to feed purified water with a conductivity of ≤ 5 us/cm into the anode chamber of the electrolyzer, which is supplied to the membrane electrode assembly, and reacts on the anode side to precipitate oxygen, hydrogen ions and electrons (2H20 - → 4H++4e - +02). The electrons are transferred to the cathode through the external circuit, and the hydrogen ions (H+) reach the cathode through the proton exchange membrane, absorb the electrons to form hydrogen (4H++4e - → 2H2), which is discharged from the cathode chamber and separated into the gas-water separator to form pure hydrogen gas.

The hydrogen electrolyzer is composed of an electrode assembly, a membrane electrode, and a sealing assembly. The core is the membrane electrode. Proton exchange membrane electrode for Nafion is used to ensure that the electrolyzer outputs safe, stable and high-purity hydrogen gas.

Scope of Application:
This product is suitable for pure water electrolysis to hydrogen and oxygen separation generator devices.

Structural Information:

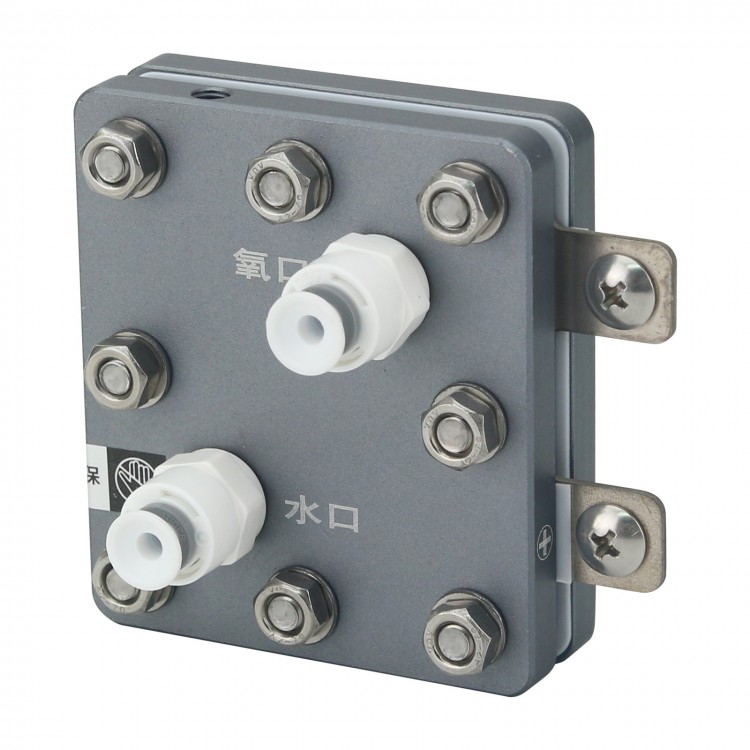

The product adopts aluminum alloy outer end plate, food-grade silicone seal and titanium material accessories. Internally encapsulated proton exchange membrane electrode for Nafion is used.

Specifications:
- Constant current: 14A
- Voltage range: 3.5V
- Input structure: positive / negative
- Hydrogen production: 100mL/min
- Oxygen production: 50mL/min
- Effective area of battery: 16cm²
- Current density: ≥0.67A/cm²
- Single cell voltage: 1.7V-2.2V
- Number of electrodes: 1 PCS
- Membrane electrode: Proton exchange membrane (PEM) for Nafion
- Pressure of hydrogen production: 0-0.8MPa
- Requirement of inlet water: conductivity ≤ 5us/cm
- Inlet water temperature: 10-50°C
- Water inlet: G1/4 thread
- Hydrogen outlet: G1/4 thread
- Oxygen outlet: G1/4 thread
- Operating temperature: 10-60°C
- Water flow rate: ≥500mL/min
- Lifespan: ≥10000h (4-5 years)
- Water tank volume: ≥1000mL

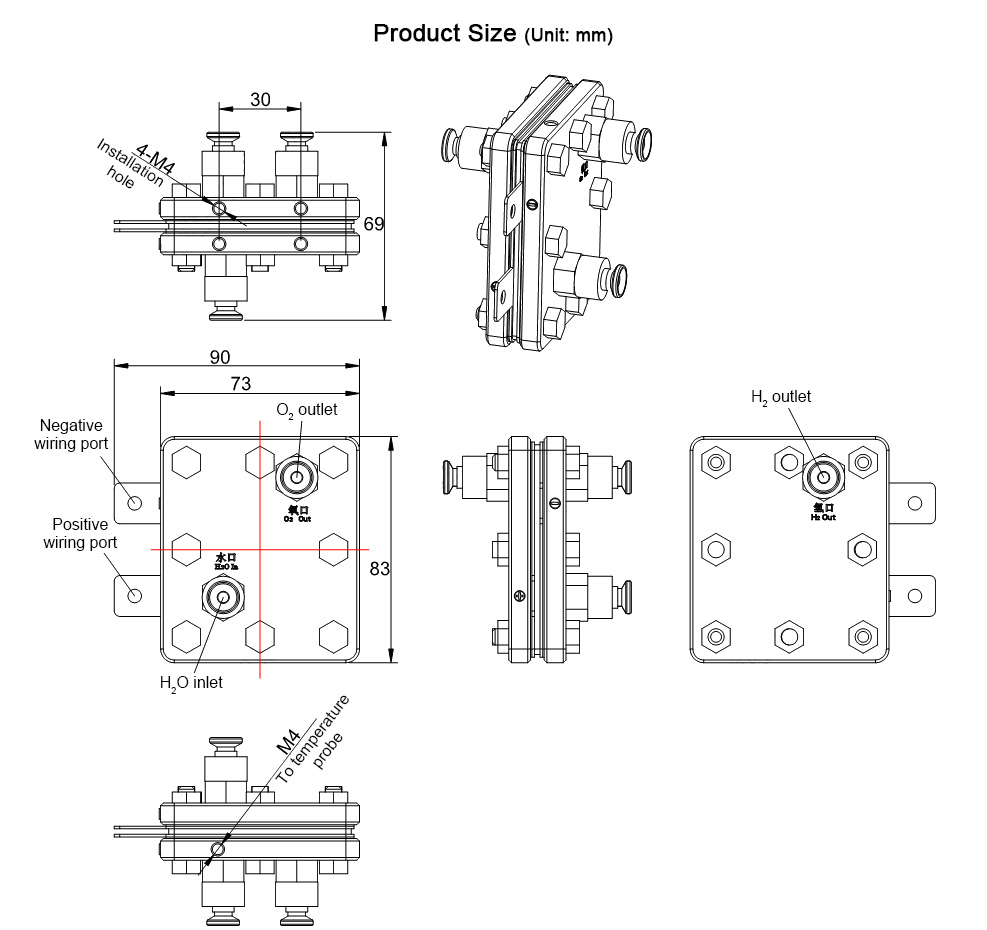

- Dimensions: 90mm x 69mm x 83mm/3.5" x 2.7" x 3.3" (LxWxH)

Package Included:
- 1 x Electrolyzer

Packaging Details:
- G.W.: 0.75kg

Note:
- Battery is not included.
