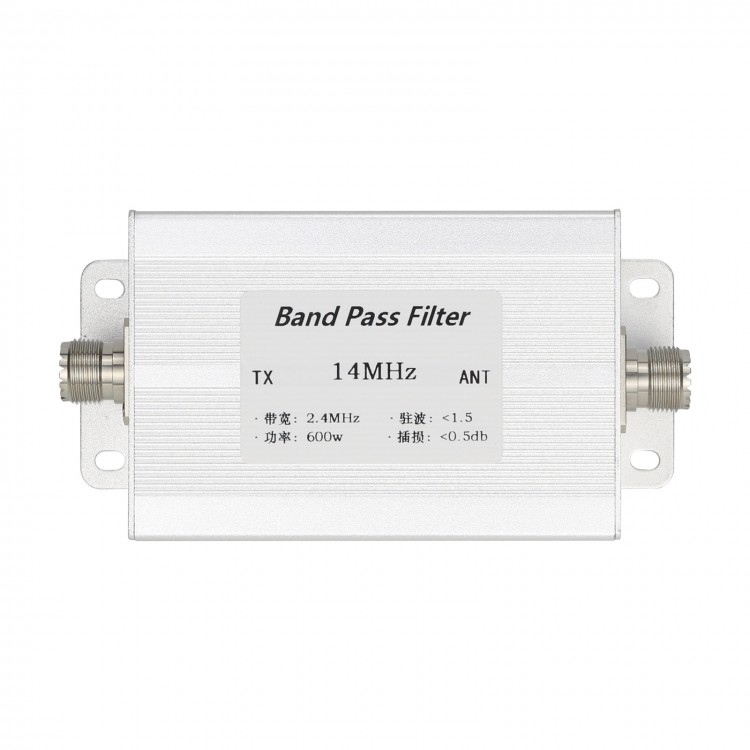

14MHz Band Pass Filter BPF 600W Anti-Interference High Receiving Sensitivity For Competitions

14MHz Band Pass Filter BPF 600W Anti-Interference High Receiving Sensitivity For Competitions

Technical Parameters:
- Input impedance: 50 ohms; output impedance: 50 ohms.
- Power: 600w (SSB CW); 200w (AM FM FSK) Higher power can be customized.
- Standing wave: less than 1.5
- Interface: SL16-F (M seat)
- Insertion loss: less than 0.5db
- Frequency: 14MHz (can also be customized according to user requirements).
- 3db bandwidth: 3MHz (58db at 7.050MHz, 65db at 3.860MHz, 43db at 21.400MHz, 55db at 29.6MHz)
- External dimensions: 140 * 53 * 38 mm

Applications:
Special Occasion:
A: This band-pass filter is suitable for applications where two or more shortwave antennas are installed in the same place and work at different frequencies at the same time. For example, it can be applied to communication competition.

B: Higher isolation band-pass filter (BPF) is suitable for occasions where two or more short-wave stations share a multi-band short-wave antenna and need to work simultaneously.

General Occasions:
When working with short-wave radios, in order to minimize electromagnetic interference from the surroundings, this band-pass filter can be connected to greatly improve the signal-to-noise ratio.

Package Included:
- 1 x Band Pass Filter

Note:
- The frequency of this product is 14Mhz. The biggest advantage is that it can work continuously for more than 30 minutes.
- Customers can customize the frequency (3.5Mhz, 3.8Mhz, 7Mhz, 14Mhz, 18Mhz, 21Mhz, 28Mhz), but the prices will be different. If you need customized service, please communicate with our customer service. Thank you!
