Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $186.17 | $182.37 | $176.67 | $169.07 | Contact US |

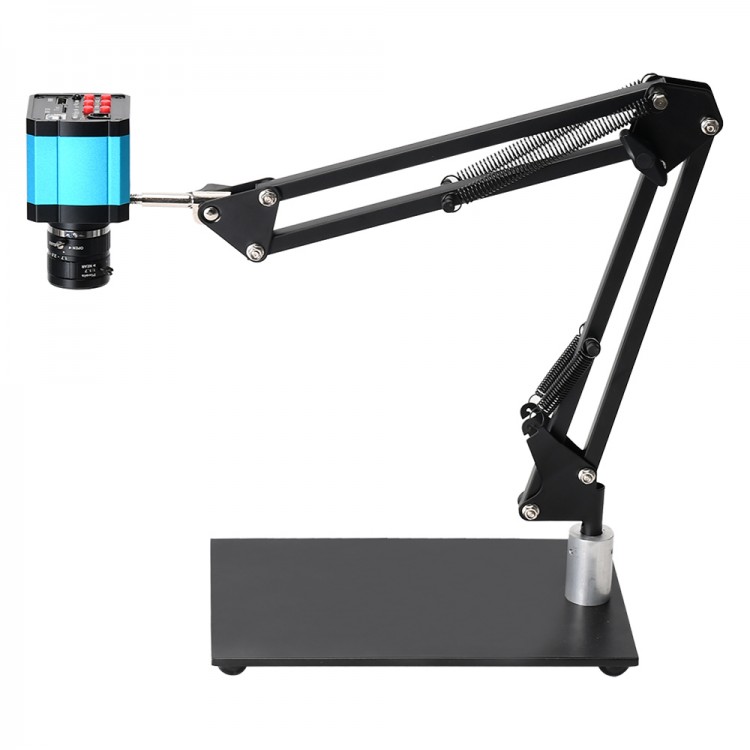

14MP 1080P HDMI USB Camera Industry Digital Camera 35mm F1.7 SC Mount Stand for Teaching Maintenance
Product Features:
- The head can be adjusted 220 ° up and down, and 360 ° swivel. 33cm+33cm retractable long arms; 180°/135° can be adjusted
- High quality, high resolution, and clear images
- 1080P 1920*1080 video camera
- HDMI USB video model
- Industry camera for CMOS. It can show the live image directly on any HDMI monitor, projector, and TV
Microscope Camera:
- Module: 2307
- Sensor: 14MP for CMOS
- Optical Format: 1/2.3 inch
- Pixel Size: 1.335μmx1.335μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 14MP
- Video Resolution: 2K at 30FPS 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4: 3,16: 9,16: 10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port
35mm F1.7 Lens:
- Focal-Length: 35mm
- Relative Aperture D/f': F1.7
- Mount: C
- Image Format: 1/1.8in
- Field of View: W14.8° x T10.8°
- Dimension: Approx. 35 x 22mm
- Resolution: 5MP
- Flange BFL: 17.53
- High resolution : 5 megapixel covering 5MP & 1080P
- Large format: 1/1.8" size covering 1/1.8", 1/2" camera
- Big aperture : F1.7 big aperture makes imaging far better
- Low distortion :<0.1% low distortion use machine vision FA automatic
- Application: Biochemical, surveillance, FA, face recognition etc.
Lens Features:
- 35mm F1.7 Len
- Vari-focal length CCTV lens, optical lens, CCTV camera lens, CS mount lens
- Focal length function manual Iris Lens, security lens
- Low distortion Lens for box camera, security camera lens, surveillance lens
- This high resolution CCTV lens can collect the all resolution of mega pixel camera, IP camera & high resolution camera
- Suitable for live stream cameras, surveillance camera, etc.
Packing List:
- 1 x 1080P HDMI camera
- 1 x 35mm F1.7 lens
- 1 x Remote control
- 1 x DC12V power supply
- 1 x USB cable
- 1 x HDMI cable
- 1 x Stand
Note:
- One 2302 button battery is needed for its remote control.
