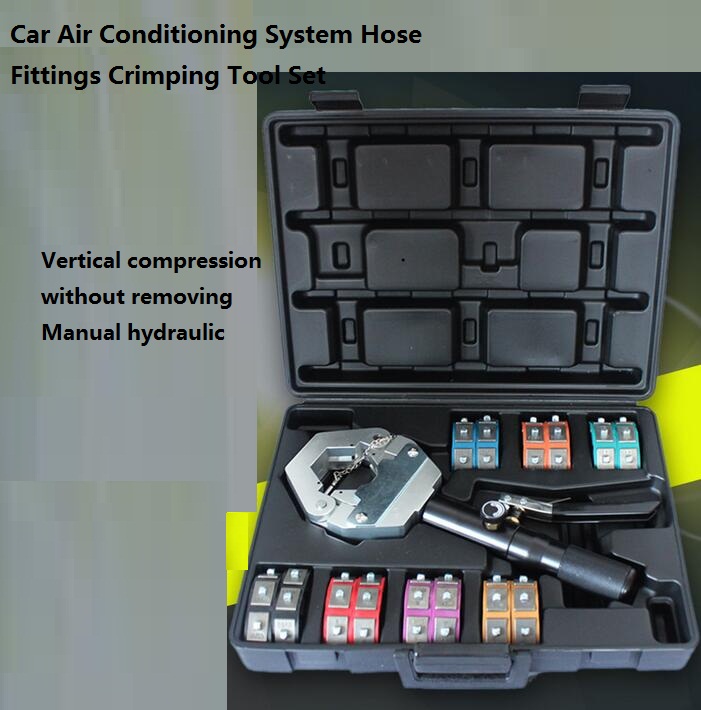

1500 Hydra-Krimp A/C Hose Hydraulic Crimper Kit Air Conditioning System Hose Fittings Crimping Tool Set

1500 Hydra-Krimp A/C Hose Hydraulic Crimper Kit Air Conditioning System Hose Fittings Crimping Tool Set

Description:
- If your A/C hose has stainless steel inside the hose, then this Crimper can't crimp your hose.
71500 - 001A :Hydra - Krimp Pump
71500-001B :Hydra-Krimp Yoke
71500-001C: Complete Die Set Assembly (7 pc. set)
71500 - 6 : Die Set - #6 (5/16”)
Die Set : - #8(13/32”) (Reduced Barrier)
71500 - 8 :Die Set - #8 (13/32”)
71500 - 10  :Die Set - #10 (1/2”)
71500 - 12 :Die Set - #12 (5/8”)
71500 - 6SRB  :Die Set - #6 (5/16”) (Reduced Barrier)
71500 - 10SRB : Die Set - #10 (1/2”) (Reduced Barrier)
71500 - 12SRB: Die Set - #12 (5/8”) (Reduced Barrier)

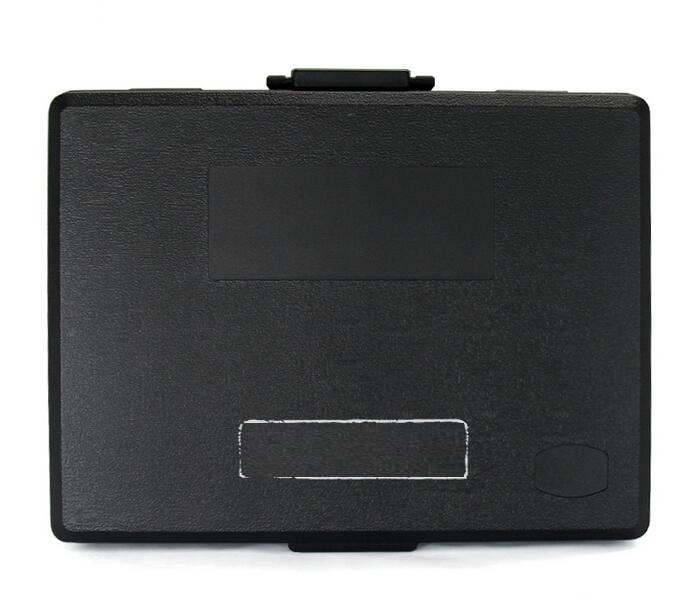

71500-PB : Custom Molded Box

Pre-operation set-up:
- Open the relief valve to fully recess the piston.Then,close tightly.
- Rotate the yoke fully counter clockwise to bottom out the adapter seat.
- Ready To Go !

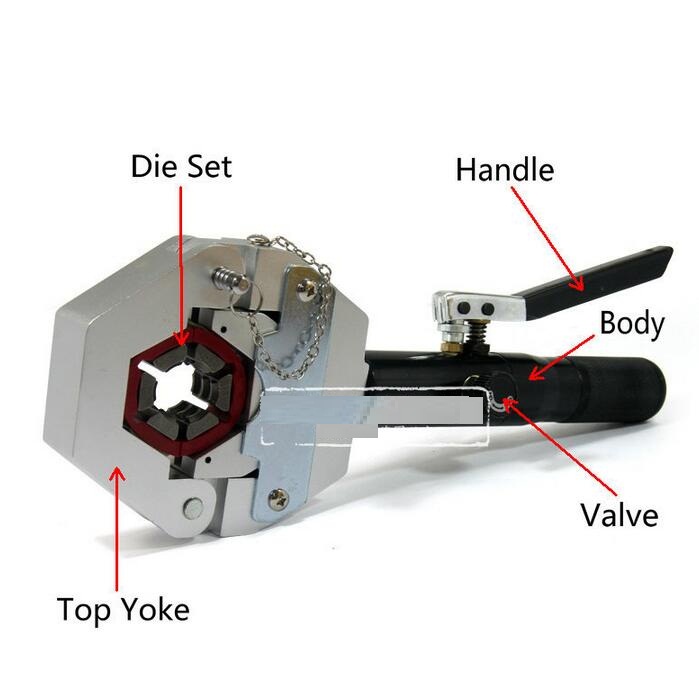

Operating Instructions:
- Remove pin and "Open" top yoke.
- Select correct die set (refer to back page for description )
- Insert the die into joke

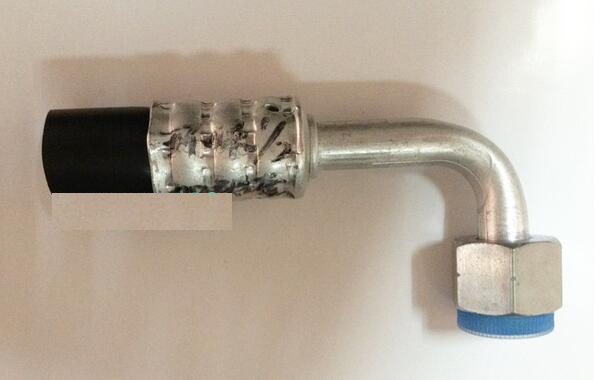

- Position fitting and hose in the crimper and close the yoke.
- Insert pin securely .
- Turn Body of tool clock wise until dies are snug against hose fitting .
- Turn hydraulic valve to "closed "position .

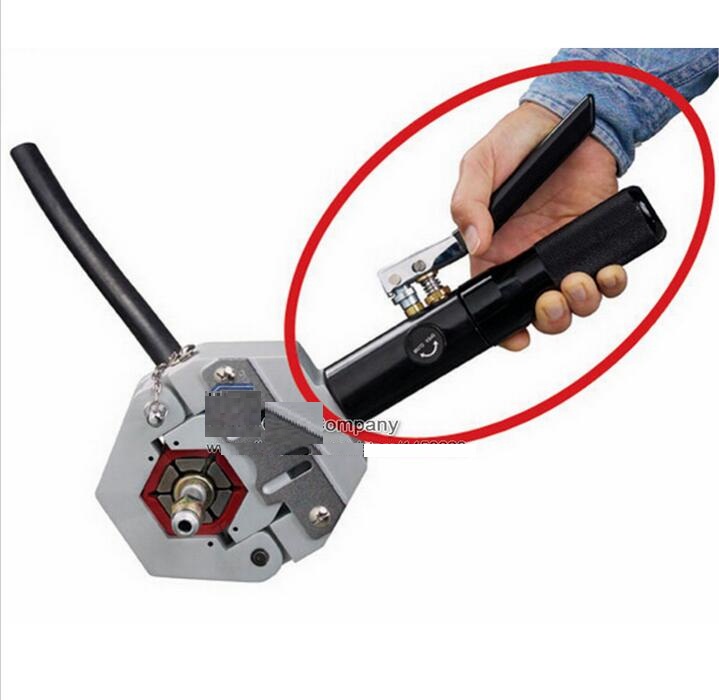

- Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop
- Once crimp is complete,turn hydraulic valve to OPEN position .
- Turn body of tool counter clockwise until top yoke can be rotated away from piston protion of yoke
- Romove holding pin and open yoke.
- Remove hose assembly.

Package List:
- 1  x  Hose Hose Crimper Kit + instructions ( 6 Country Language )
