150W DC Motor Speed Controller PWM Regulator Adjustable LED Lighting Dimming Controller XY-MP05-W

150W DC Motor Speed Controller PWM Regulator Adjustable LED Lighting Dimming Controller XY-MP05-W

Description:
- Liquid crystal display frequency and duty cycle, shutdown and output, clear and clear at a glance.
- Using digital encoder to set frequency and duty cycle, digital adjustment, convenient and fast.
- High precision and reliability.
- Dual mode, the duty cycle step is 0.1% in fine mode.
- Using 2 original low-resistance MOS tubes and pre-drivers, the performance is better and more stable.
- It can support high current and high frequency.

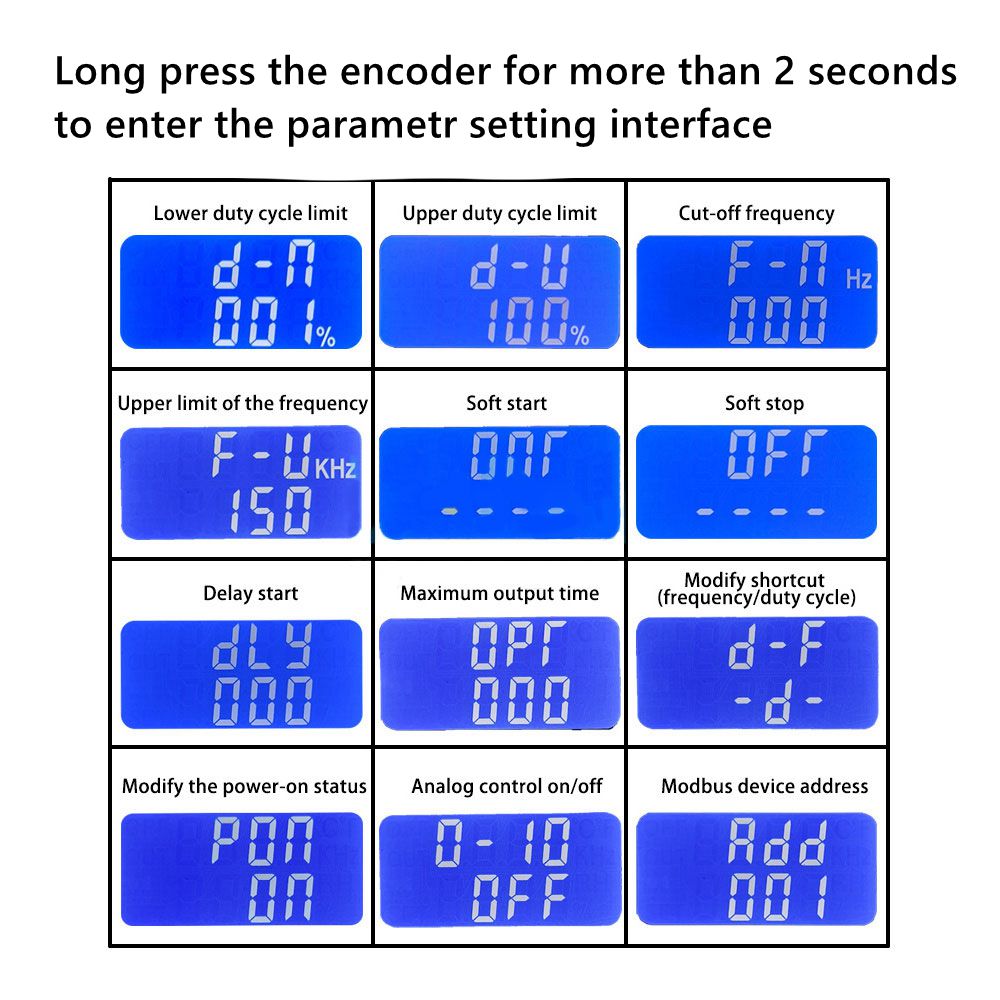

- The upper and lower limits of the working frequency and duty cycle can be set, which is convenient for users to adjust according to their own.
- The operating characteristics of the motor or LED are used for operation.
- Setting the lower limit avoids the situation where there are numerical values, the motor does not turn or the light does not light up, and setting the upper limit avoids the situation where the motor is too fast or the light is too bright.
- Soft start/soft stop can be set, the time is 0.0-99.9 seconds; the motor soft start, no rush.
- Shock current, effectively protect the motor and prolong the service life of the motor.
- Comes with a start and stop button, which is convenient and quick.
- With key lock function, after the key is locked, the frequency and duty cycle cannot pass the key.

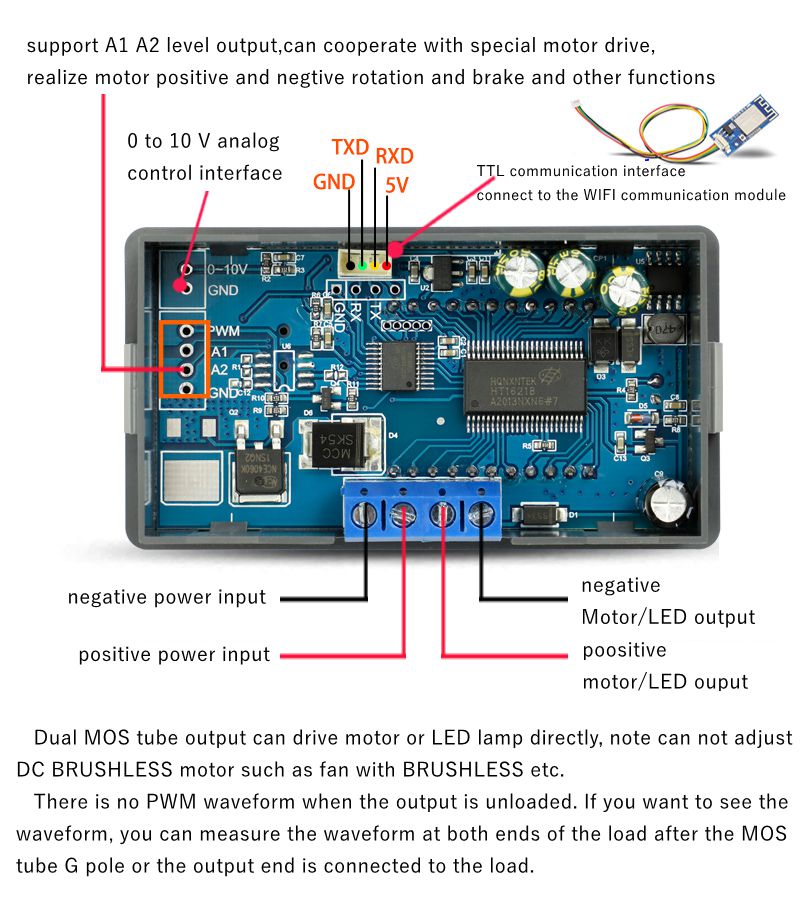

- Support analog quantity (0-10V) to control the duty cycle to meet various control needs of customers.
- Support A1, A2 level output, can cooperate with special motor drive to realize motor.

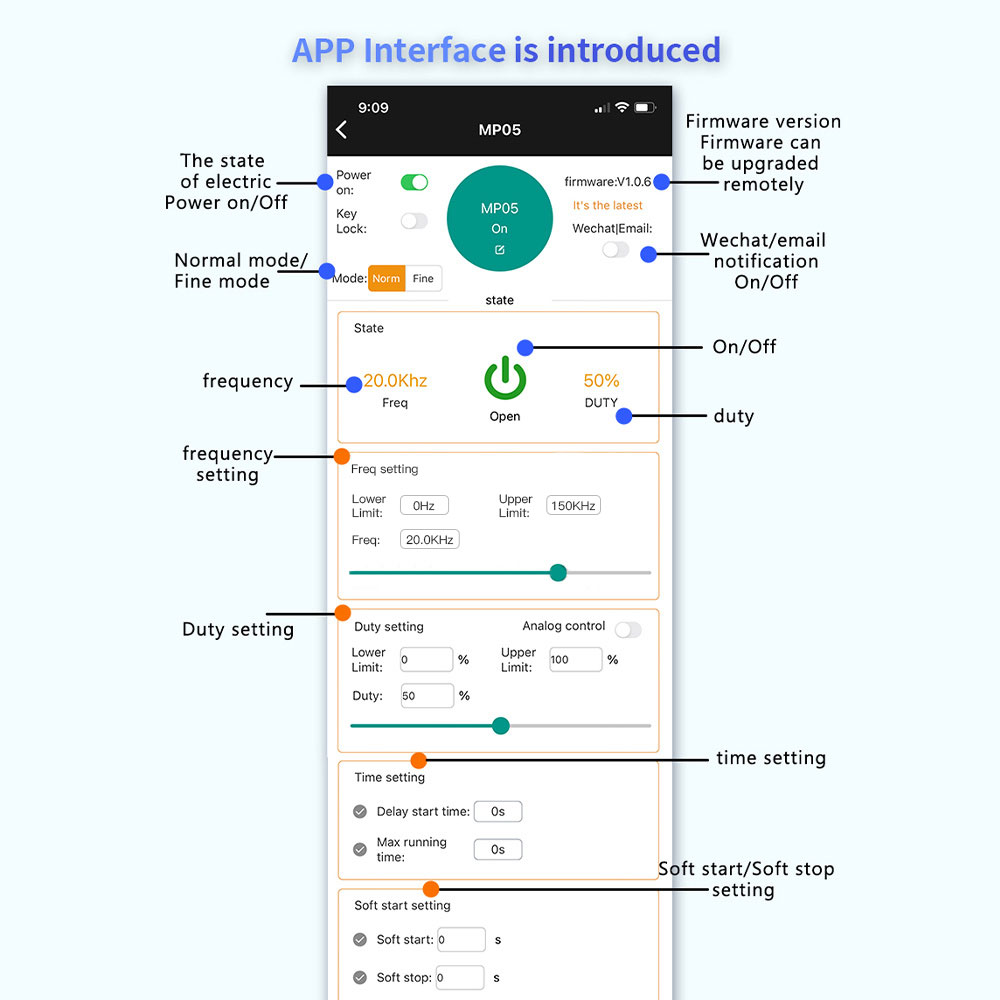

- The functions such as forward and reverse rotation and braking are highly scalable. After connecting to our Wi-Fi module, you can remotely control the forward and reverse rotation and braking of the motor through the mobile phone APP.

Parameter:
- Working voltage: DC6-30V (be careful not to connect reversely and not to connect AC)
- Working temperature: -10-40°
- Rated current: 5A
- Maximum power: 150W
- Working frequency: Normal mode: 1Hz ~150kHz
- Fine Mode: 1Hz ~ 15kHz
- Duty cycle accuracy: normal mode: 1%~100% (accuracy 1%)
- Fine mode: 0.1%~100% (accuracy 0.1%)
- Soft start: 00.0 ~ 99.9 seconds
- Soft stop: 00.0 ~ 99.9 seconds
- Maximum output time: 00.0 ~ 999 seconds
- Analog control: DC 0~10V
- Product size: 79mm x 27mm x 43mm
- Product weight: 47g

Package Included:
- 1 x DC motor governor with Wi-Fi remote control
