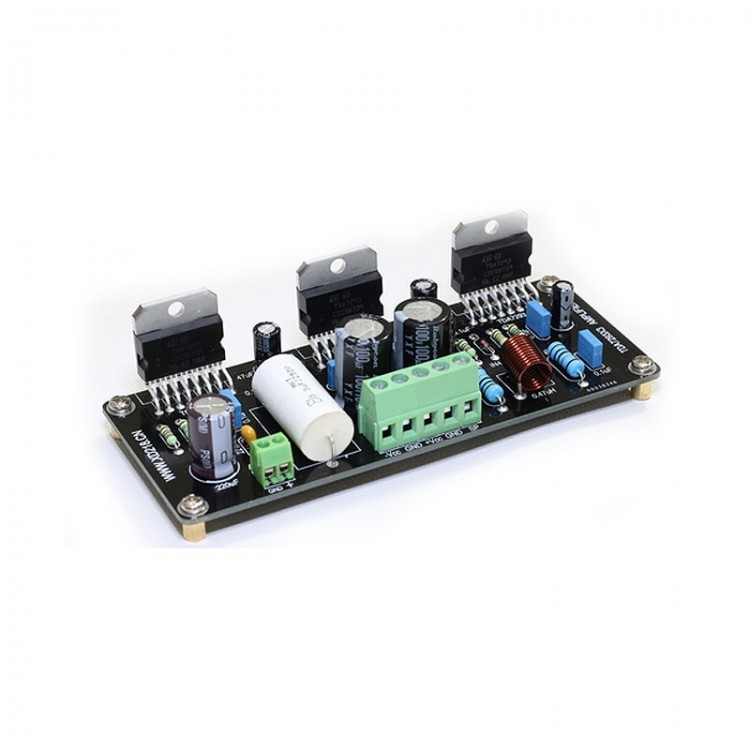

150W Power Amp Board Mono Power Amplifier Board Three TDA7293 In Parallel Without Heat Sink
Technical Parameters:
- Working voltage: ±(35-45)V
- Output power: 150W (4 ohm load)
- Output impedance: 4-8Ω
- Frequency response: (-3dB): 20Hz-20KHz
- Harmonic distortion: <0.01%
- Zero background noise
- Product size: 120 x 50mm/4.7 x 2"; height 30mm/1.2"
- N.W.: 70g/0.2 lb
Package Included:
- 1 x Power Amp Board
Note:
- There is no heat sink.

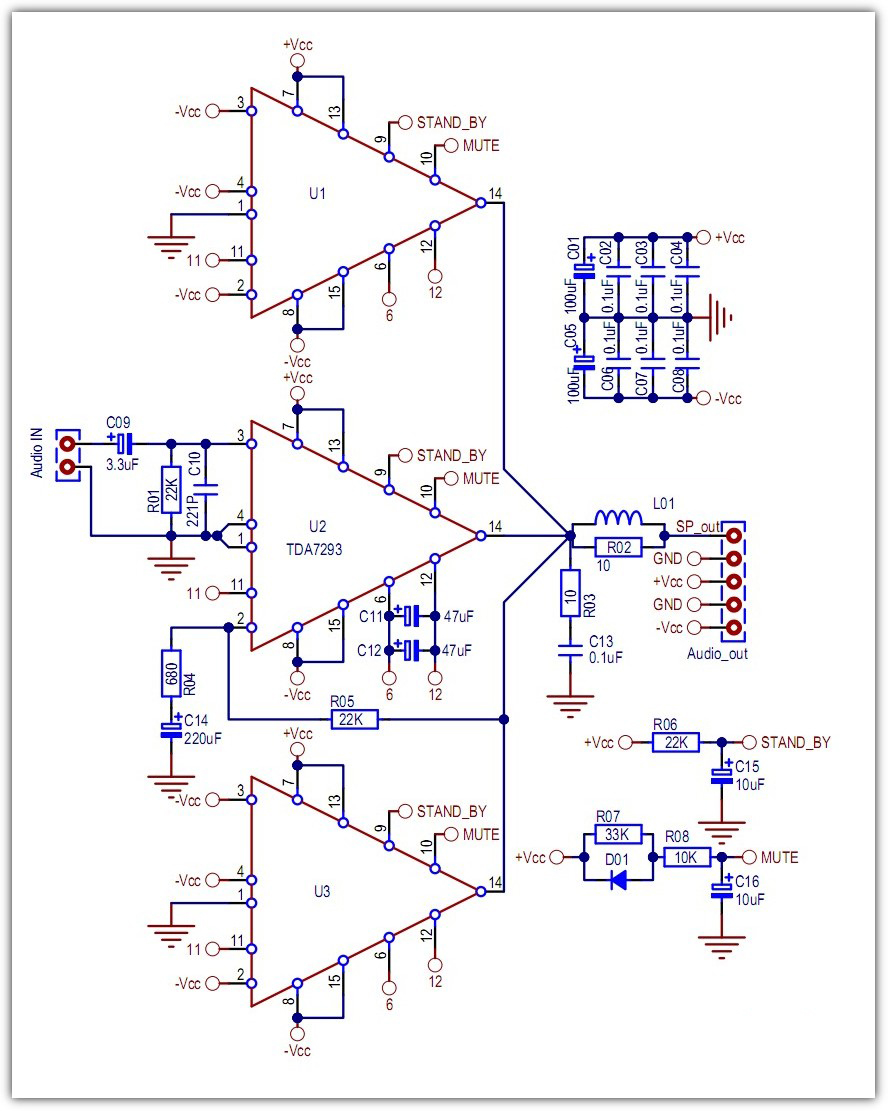

- Schematic diagram of the product is for reference only, and subject to modification without notice. Thank you for your understanding!
