Please contact us for video
Specifications:

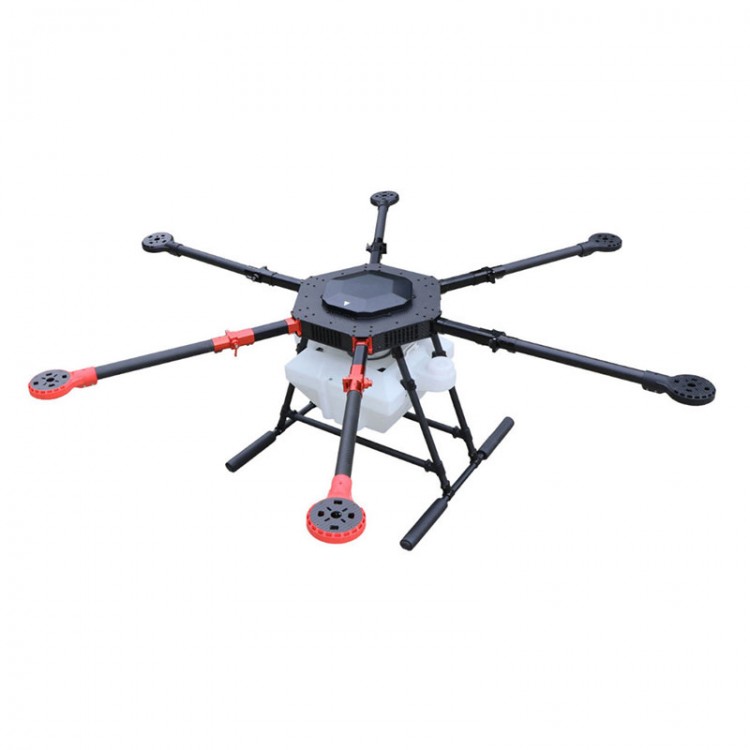

- Design: Six-Axles Electronic UAV for Farming
- Carbon fiber plate thickness:2.5mm
- Arm tube spec:30x27mm
- Landing gear tube:20x17mm
- Folding size:990x970x550mm
- Wheelbase:1550mm
- Drone weight::6.5kg
- Max takeoff weight:35kg
- Max carry weight:15kg
- volume:15L
- Power battery:22000mAh
- Hovering Time：
- 25 min（22000 mAh & 13.4 kg takeoff weight）
- 12 min（22000 mAh & 35 kg takeoff weight）
- Operating speed：3～8m/s
- Operating height：2～5m（decided by the crop）
- Sprinkle range：3～6m
- Sprinkler quantity：4
- Sprinkle volume：1～1.5L/min
- Operating efficiency：≥33000㎡/h
- Wind resistance rate：≤level 6
- Working environment：Max Service Ceiling Above Sea Level 2000m
-
Application range：Plant protection，include pesticide application,
fertilization, pollination，emergency fire fighting and so on，mainly in
Agriculture.
- Extra Use：By promoting technical module and lading other equipment，it can be used to wire-patrol and wire-erected ,etc.
- Flight mode:Altitude,GPS, A-B
- FPV mode:real-time data transmission,to improve working efficiency and saving man-made cost
- Recommended Operating Temperature:0 ℃ to 40 ℃
Package list as following,if you need power system,please contact us
