15W High Precision Low Noise and Low Internal Resistance Stabilized Linear Power Supply with Transformer for TALEMA
Description:

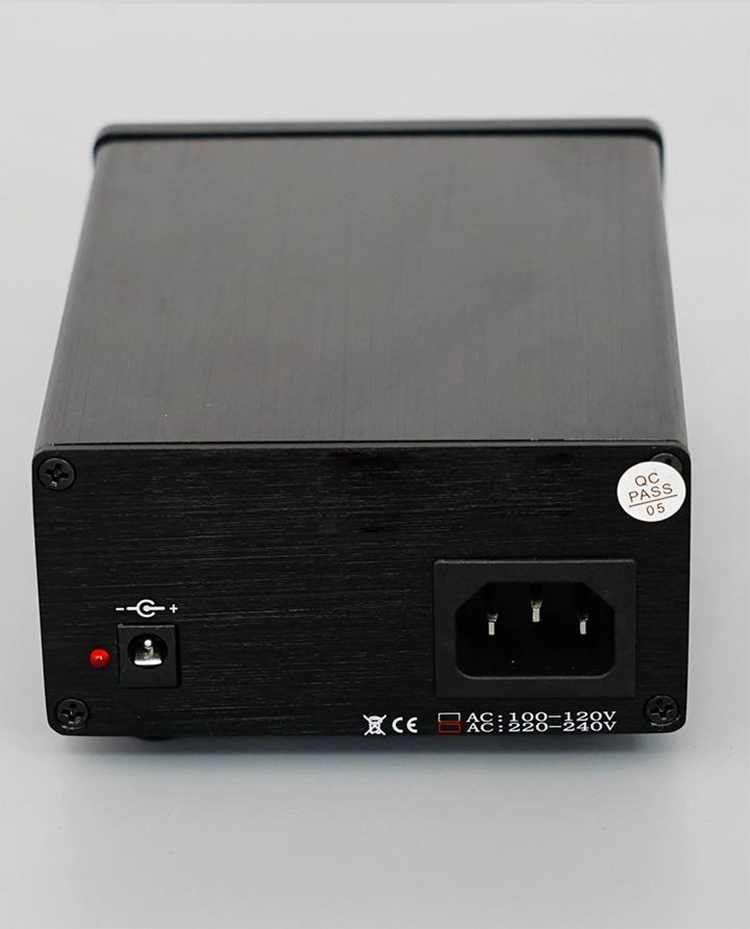

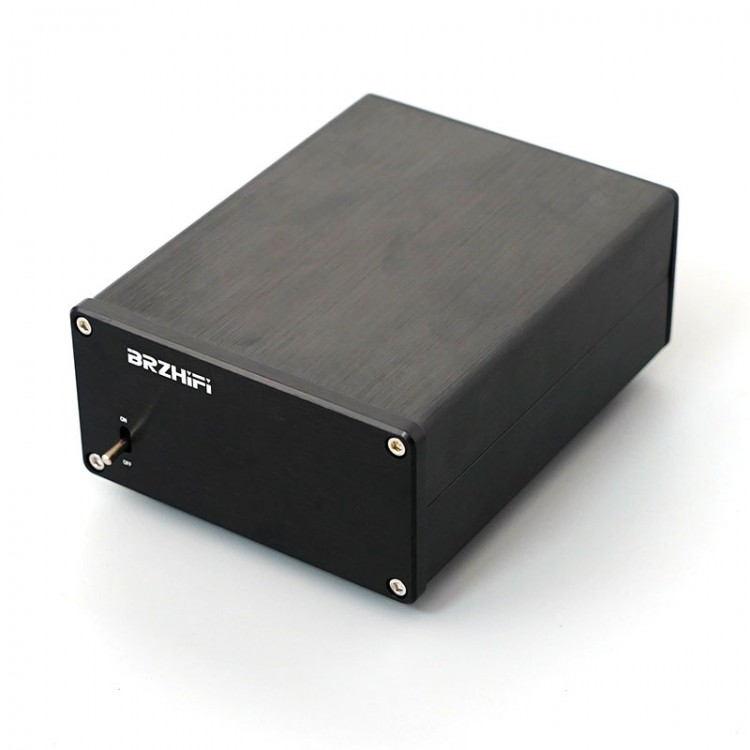

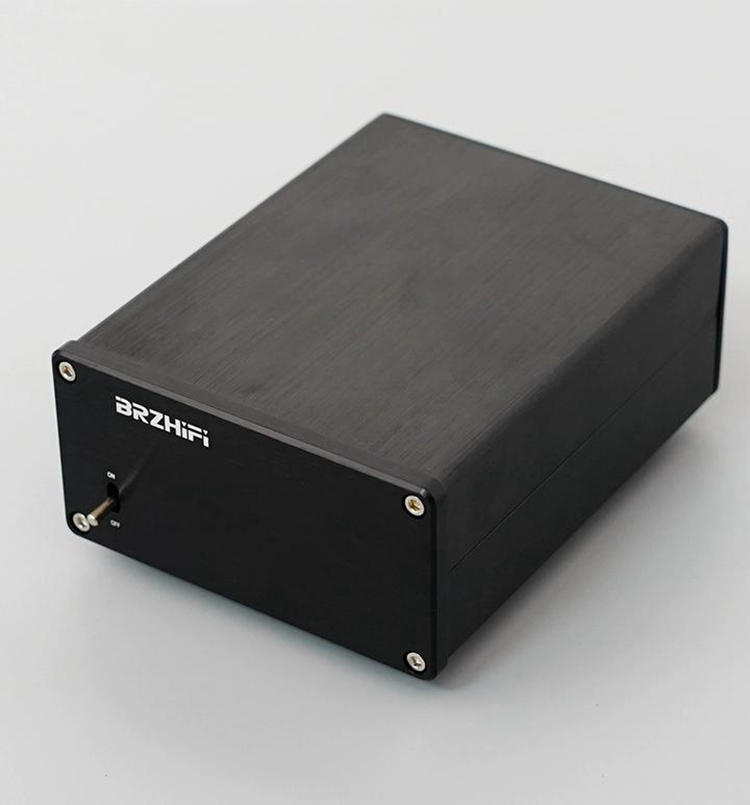

- This product is an all aluminum alloy machine, with an output port of 5.5MM power interface and an inner diameter of 2.1MM. Different voltage outputs can be customized according to customer requirements, such as 5V, 9V, 12V, etc.
- The circuit is based on the power supply circuit for STUDER of Swiss, with a low noise and high performance linear power supply. With excellent wiring and a good combination of linear components, it has high output accuracy and low ripple, whose actual listening experience is better than most Class A power supplies. The maximum current reaches 1500MA.
- It can provide high-precision, low-noise constant power supply for turntables, precision instruments, decoding DACs, headphone amplifiers, etc., and it is equipped with short-circuit overload protection.
- The architecture of this circuit is much better than the typical power supply for KAMEDA, the three terminal regulated LM317 LT1083 LT1085 series, and even more advanced than the power supply for WJ.

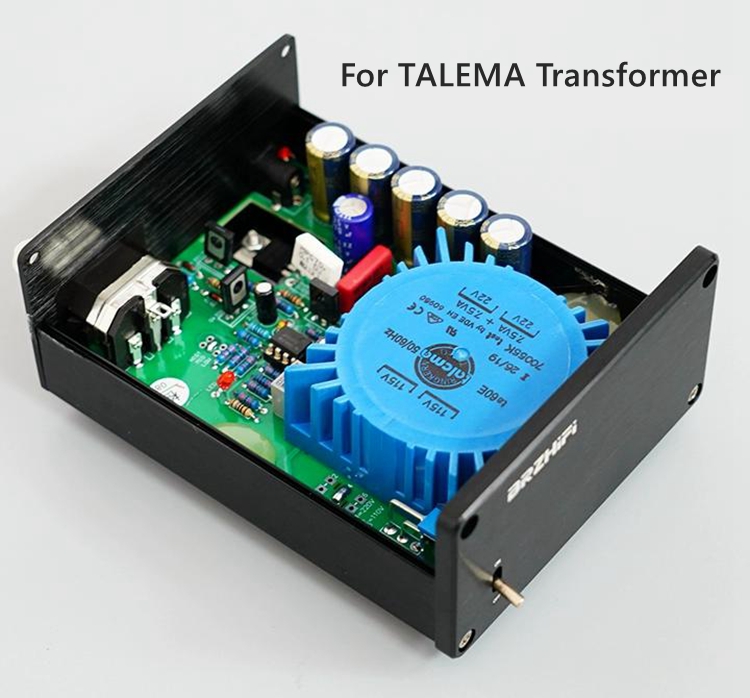

- The materials used are very excellent. The rectifier tube is a 5A rectifier for Schottky, gold mounted capacitor for Panasonic, an output tube for ON 15034, and the adjustable resistance for BI of America. The board reference voltage regulation uses a dual operational amplifier TL072.
Specification:

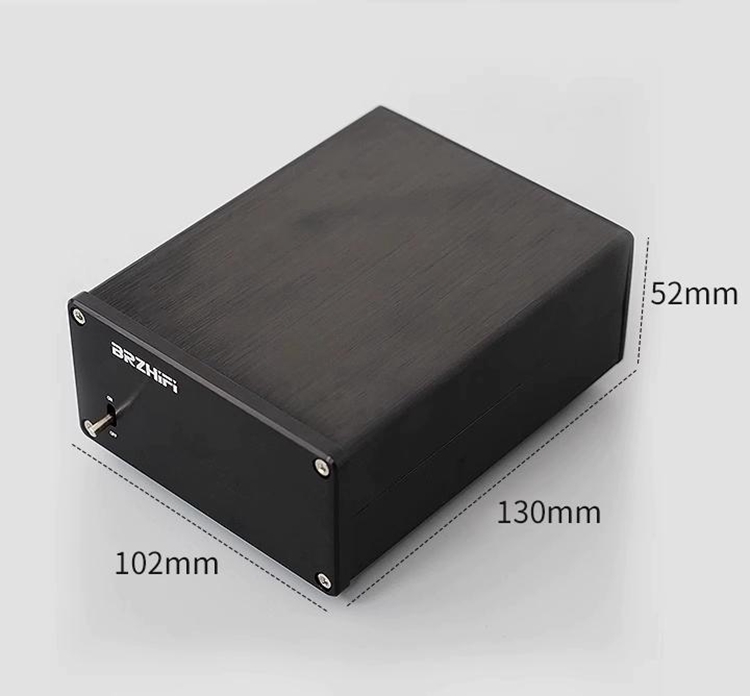

- Size: 130 x 52 x 102mm
Package Included:
- 1 x Linear Power Supply
