15W Mini Laser Engraver Metal Steel Iron Stone Engraving Machine Image Printer

15W Mini Laser Engraver Metal Steel Iron Stone Engraving Machine Image Printer

http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=f2d90b3c09&auto_play=0

http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=c91cd93cbf&auto_play=0

http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=c4ea7591de&auto_play=0

http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=4d4b6cfd62&auto_play=0

http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=aebbf61b55&auto_play=0

http://yuntv.letv.com/bcloud.html?uu=7ddc155d09&vu=7c15380d48&auto_play=0

Product Description: Upgrade version of the new model of laser tube,V-type black aluminum,V-type dual-bearing pulley,to increase thicker heat aluminum,thicker fan,copper core,the most important is the new laser tube power are the same,Beam quality is better,the lines will be more black and thin.

Specifications:
- Name:Engraving machine
- Model: ac140m
- Material: Aluminum Alloy + acrylic
- Drive system: stepper motor(step accuracy: 0.00625mm)
- Max. Engraving Area:14 x 20cm
- Engraving speed: 0.02-0.2 seconds/pixel
- Laser power: 15W(100ns duty 10W 50%) average 6-6.5W
- No limit on object's size,the machine can be set and worked on the object,eg,
- Interface: USB

Functions:
- Software 255 adjustable laser power,low-light positioning,positioning freedom,gray,shortest path algorithm
- Power supply: input AC 100V-240V,47Hz-66Hz
- Power adapter:DC 12V 4A
- Machine Dimensions: 28x32x23cm
- Machine weight: 2.4KG
- Software:Our ac master software,support Chinese,English,Russian languages.Simple & easy to use.
- Support Windows 7/8/10
- Super-reduced instruction, 1 byte of instruction accounted for more than 40%
- The explanation rate is 30 times faster than Arduino+grbl,and instantly be able to complete the task of
interpretation active instruction; shortest path algorithm can shorten the time.
- Carving materials: stainless steel,iron,aluminum,ceramics,stone,wood,bamboo,leather,plastics,etc.

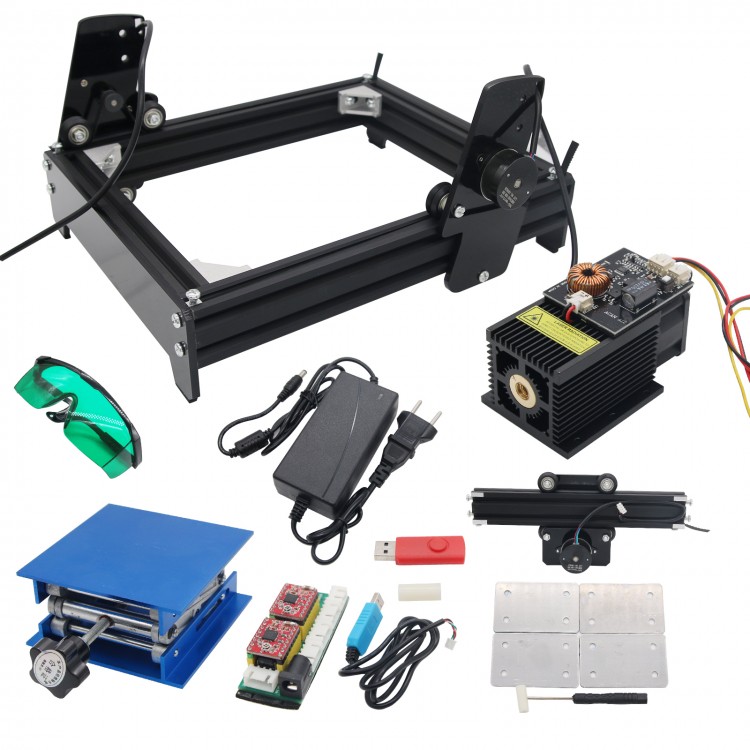

Package List:
- 1 x 15W Engraving machine
- 1 x AC power adapter（According to the delivery countries distribute adapter.）
- 1 x Laser protective glasses
- 1 x Test the steel sheet
- 1 x Metal sheet(color,quantity,shape random)
- 1 x Lifting platform
- 1 x USB cable
- 3 x Focusing columns
- 1 x U- Disk(Contain Software)
