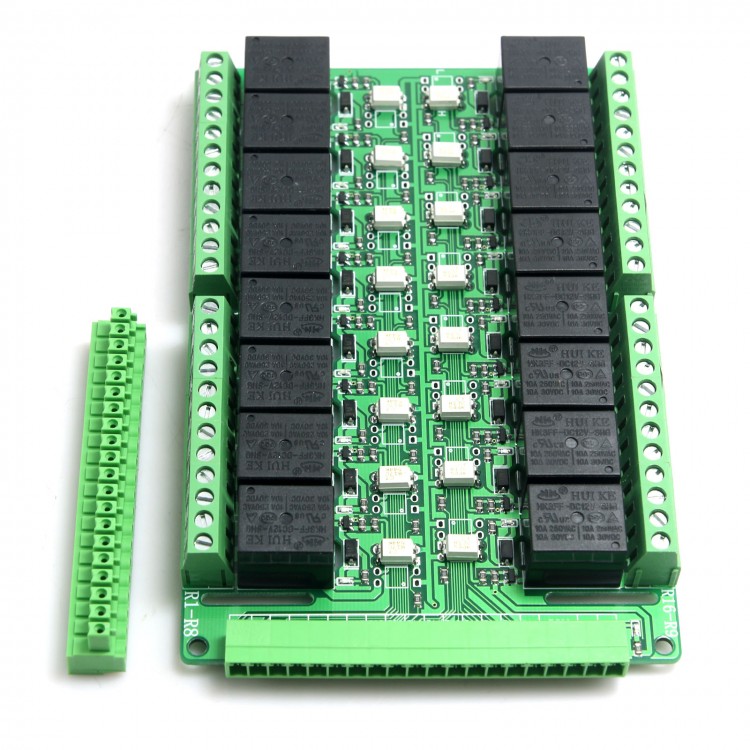

16 Channel Relay Module Control Shield Controller 5V 12V 24V PLC Driver Board
Description:
- Can be used as a SCM, PLC output driver board, amplifier board, can controlled by key
- Trigger signal voltage: 3.3V, 5V, 12V, 24V (optional, please note the one you need)
- Relay coil voltage: 5V, 12V, 24V (optional, please note the one you need)
- LED power indicator, anti reverse power
- Photoelectric isolation, anti-interference, high current
- Relay load: 10A/250VAC, 10A/30VDC
- Size: 148*98*18mm (length * width * height)
- Trigger signal current: <5mA (single channel)
- Trigger mode: low level drive or high level drive (optional, please note the one you need)
Package included:
- 1 x 16 Channel Relay Module
