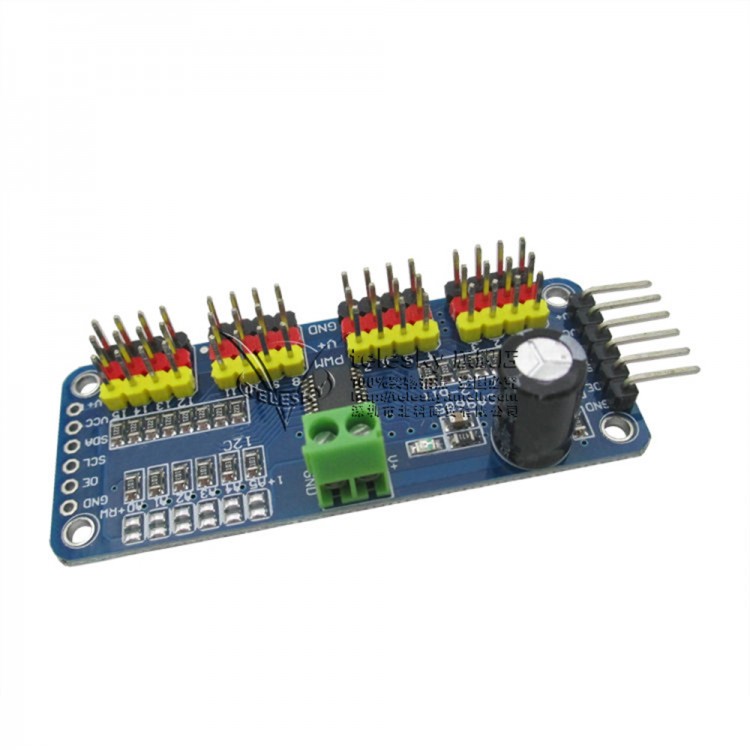

16 Channels PWM Servo Driver Board Controller IIC Interface Module for Robot DIY
Description:
PCA9685 16 channels servo is the one adopts I2C communication, built-in PWM driver and a clock.
Compatible with 5V. That means, you can control with 3.3V SCM and drive 6V output. About 1.6KHz PWM output .
Features:
- PCA9685 chip
- Power input terminal
- Green power light indicator
- Can plug into a 16*servo motors in the 4 groups 3 pin connector
- Reverse polarity Protection
- Cascade design
- 220Ohm resistor on all PWM output line, and easy to drive LED
- 10V 1000uf capacitor on the V+ line
Specification:
- Size: 25*61mm
- Weight: 11g
- Voltage: DC5-10V
- Communication: IIC
- 16 channel servo control
Package included:
- 1 x Servo Driver Board
