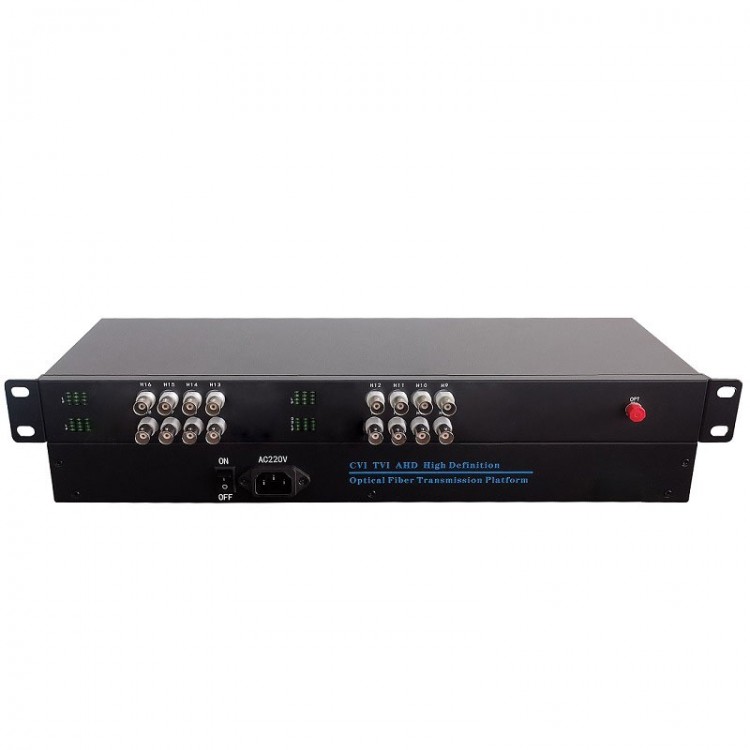

16-Way HD Video Converter CVI TVI AHD Optical Fiber Transmission for 2MP 1080P Coaxial HD Cameras

16-Way HD Video Converter CVI TVI AHD Optical Fiber Transmission for 2MP 1080P Coaxial HD Cameras

Description:
It supports coaxial HD CVI, TVI and AHD and supports most 2MP 1080P coaxial HD cameras on the market.

Specifications:
Basic parameters:
- Optical interface: FC interface, single-mode fiber
- Transmission distance: 0-10km
- Input/output wavelength: Sending end: 1310nm sending and 1550nm reception. Receiving end: 1550nm sending and 1310nm receiving

Technical indicators:
- Video: 720p 25/30/50/60fps and 1080p 25/30fps
- Input level: >500mVp-p
- Output level: 1Vp-p
- Automatic cable equalization: 1080p: 75-5 300m/984.3ft coaxial cable is supported. 720p: 75-5 500m/1640.4ft coaxial cable is supported
- Input and output impedance 75 ohms
- Physical interface: BNC interface
- Video input: 16
- Video/Output: 16
- Video sampling: 100MHz
- Sampling bandwidth: 8bit

Other specifications:
- Indicator lights: optic link, power supply, data and video source indicators
- Dimensions: 485 x 185 x 45mm/19.1 x 7.3 x 1.8"
- Power supply: DC5V 5A
- Power consumption: < 25W for 16-channel transmitter and < 25W for 16-channel receiver
- Operating humidity: 10%-90%
- Working temperature: -20°C to 70°C
- Installation method: 19-inch 1U rack

Package Included:
- 1 x HD Video Converter
- 1 x Power Adapter

Note:
- 2 sets of video converters should be used at the same time.
