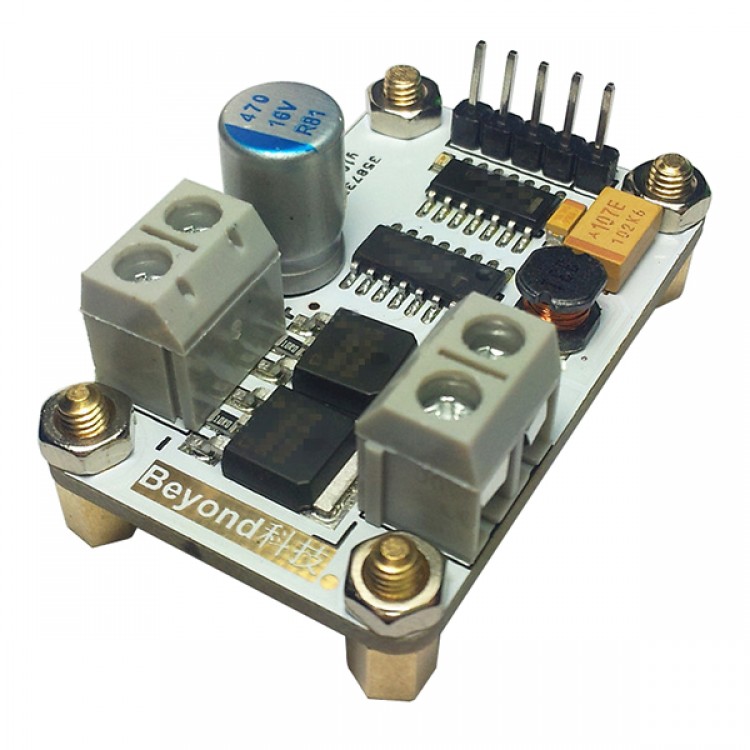

160A 5V H Bridge MOS High-power Motor Driver Module for Smart Car Chassis

160A 5V H Bridge MOS High-power Motor Driver Module for Smart Car Chassis

Description:
- The full bridge drive chip can achieve 1 MHZ operating frequency, is a good way to solve MC33886 and VNH3SP30 make motor noise and hot problems, driving ability had the obvious enhancement at the same time, the response speed the drive performance of L298, IR2104 MC338
- MOSFET using high-power current shock resistance, resistance to 0.003 euro, can quickly open the mosfets channel, improve the speed of the motor of curvature, at the same time also can rapid for motor brake, this can make the car can jump-start can also stop quickly

Features:
- Onboard full bridge drive chip + 4 ultra-low resistance NMOS tube
- DC - DC booster module, more outstanding performance
- no need heatsink
- 5V Power supply,support 3.3V
- size:4.2cmX2.7cm
- Max support 160A ,sugguest not over 120A
- Control is simple, just can make all the way and two way control signals
- Zedoary technology on PCB, not easily get oxidation

Note:
- PWM1, PWM2 output control signals for the single chip microcomputer, by setting the PWM1, PWM2 can realize positive &negative and brake motor assumptions when PWM1 for normal PWM wave, PWM2 for low electric motor is at ordinary times; So PWM1 as low level, with normal PWM2 PWM
- sugguest frequency:10K-20KHz
