| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $27.83 | $27.26 | $26.41 | $25.28 | Contact US |
250mm Black Version Stainless Steel American Standard Solid Cathode Lock Support NO/NC Adjustment
$28.40
124mm Silvery Version Stainless Steel American Standard Solid Cathode Lock Support NO/NC Adjustment
$28.40
124mm Black Version Stainless Steel American Standard Solid Cathode Lock Support NO/NC Adjustment
$28.40

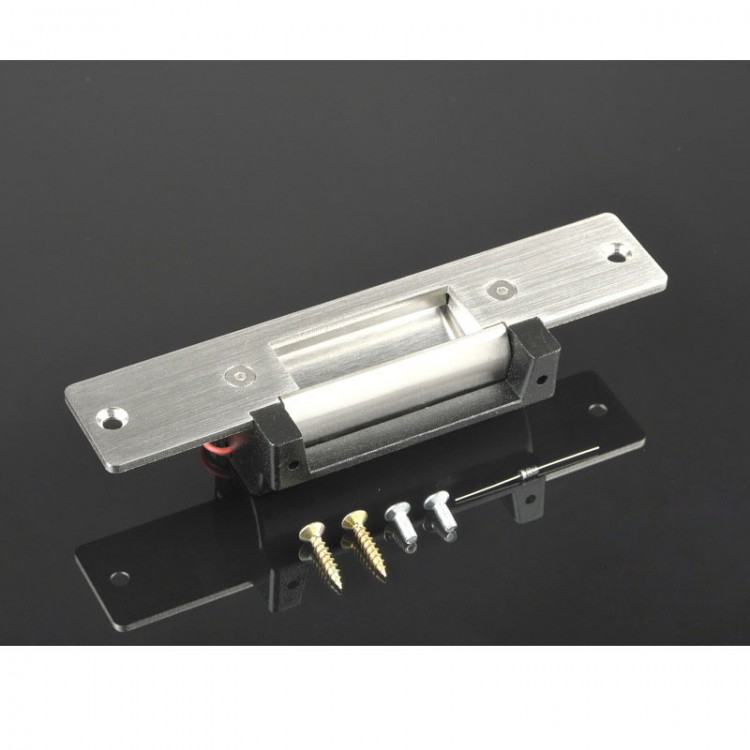

165mm Black Version Stainless Steel American Standard Solid Cathode Lock Support NO/NC Adjustment
Features:
- The NO/NC state can be freely adjusted.
- Adopting 3mm thickened stainless steel panel, zinc alloy integrated lock body and baking finish process.
- The shaft is finely crafted from stainless steel, with high hardness and wear resistance, flexible unlocking without jamming, zinc alloy lock tongue, and electroplated white nickel treatment.
- Adopting all copper coils, it has low power consumption, low heat generation, durability and stability.
Specification:
- Input voltage: DC12V
- Working current: 240mA
- Withstand thrust: 1000kg
- Material: stainless steel + zinc alloy
- Product size: 165 x 43 x 32mm
- Opening direction: regardless of direction
- Opening method: 90° opening
- Applicable environment: -10 ~ +55℃ (14 - 131F)
- Application: all scenarios used in conjunction with mechanical lock tongues
- Net weight: 0.4kg
Package Included:
- 1 x American Standard Solid Cathode Lock
