16S Smart BMS Lifepo4 Battery Protection Board Continuous 200A Peak 600A with 2CH RS485 + 1CH CAN

16S Smart BMS Lifepo4 Battery Protection Board Continuous 200A Peak 600A with 2CH RS485 + 1CH CAN

Features:
- Family energy storage protection board, battery balancer

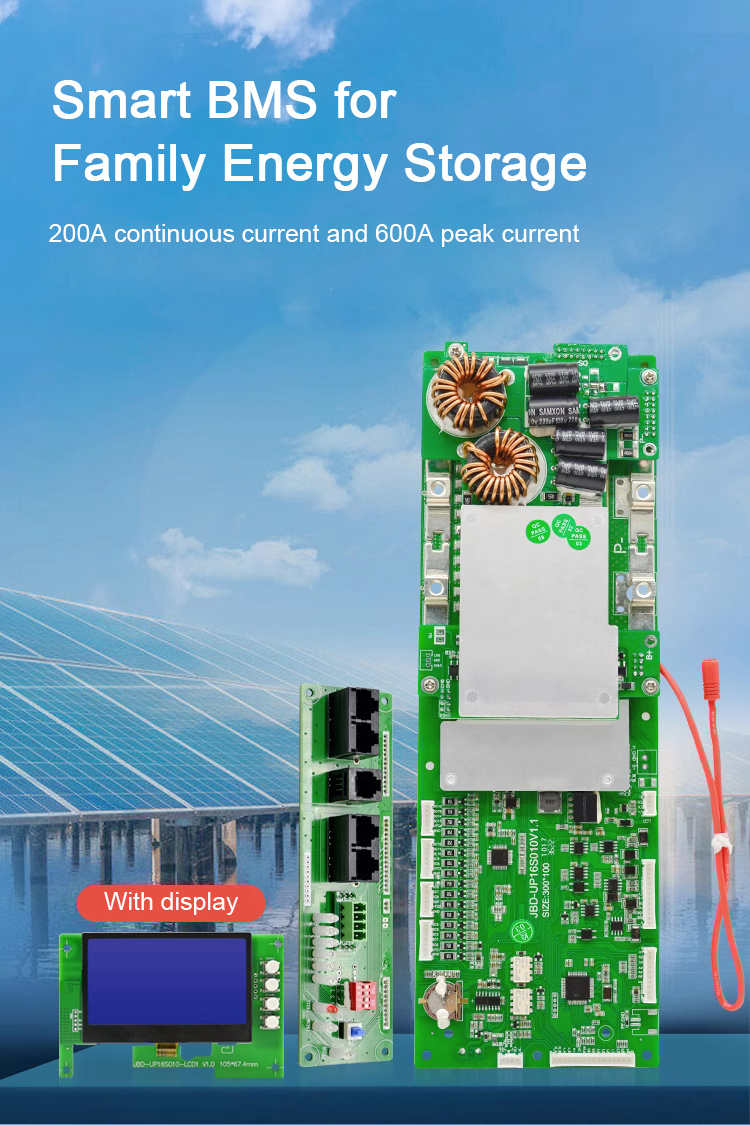

- 16S Lifepo4 BMS board with 200A continuous current and 600A peak current
- Charging and discharging at the same port

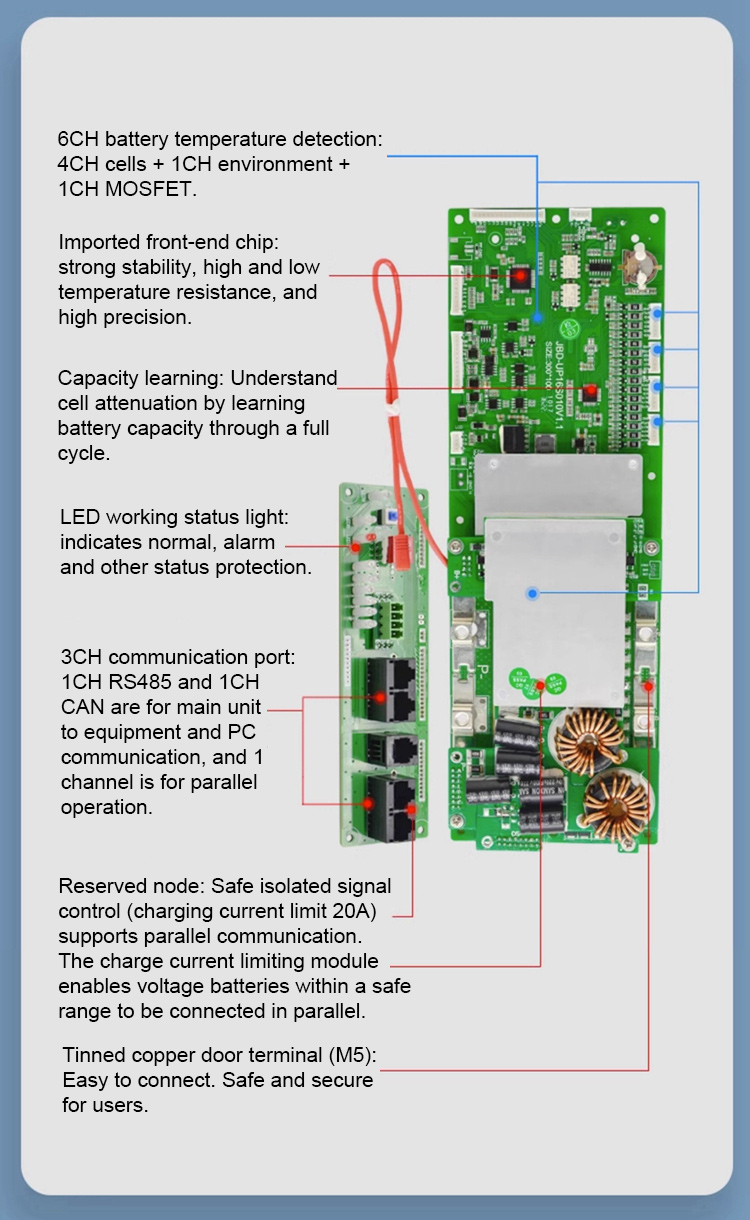

- Six-way temperature control: After or before a battery pack is wired, plug in NTC, and check the battery temperature on the APP interface
- Charging current limiting module (20A current limiting)
- 3-way communication: 2CH RS485 + 1CH CAN
- Historical battery data storage and record query
- Compatible with major inverter protocols in the market
- Highly integrated/ultra-high-precision real-time monitoring

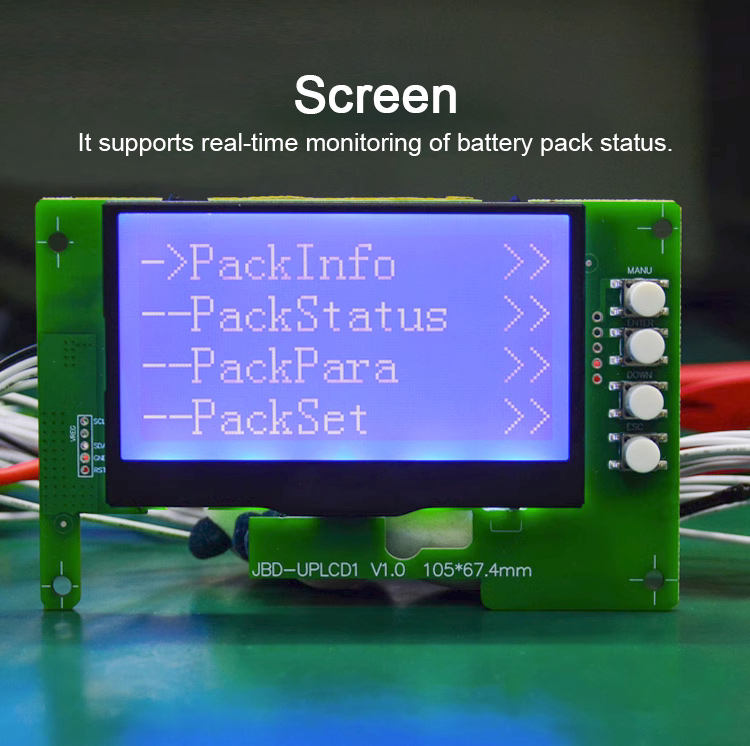

- With a display for real-time monitoring of battery pack status
- 12 layers of protection, with reliable performance, ensure the safety of battery cell: Overcharge protection, over-discharge protection, over-current protection, short-circuit protection, temperature protection, pre-discharge function, alarm prompt, historical storage, parallel connection, buzzer, multi-channel communication and balanced protection
- Continuously upgraded protection: The protection board is equipped with current limiting, so that batteries of any voltage within the safety range can be connected in parallel. Real-time detection of battery pack status, with storage, recording and query functions. It records battery data. It has alarm prompts such as voltage, current, temperature and SOC. The current battery status is indicated by audible and visual alarms
- Double protection: Designed for home energy storage. Ultra-high power two-way TVS, resistant to high currents and reverse voltage impulse. All of these make lithium batteries safer to use

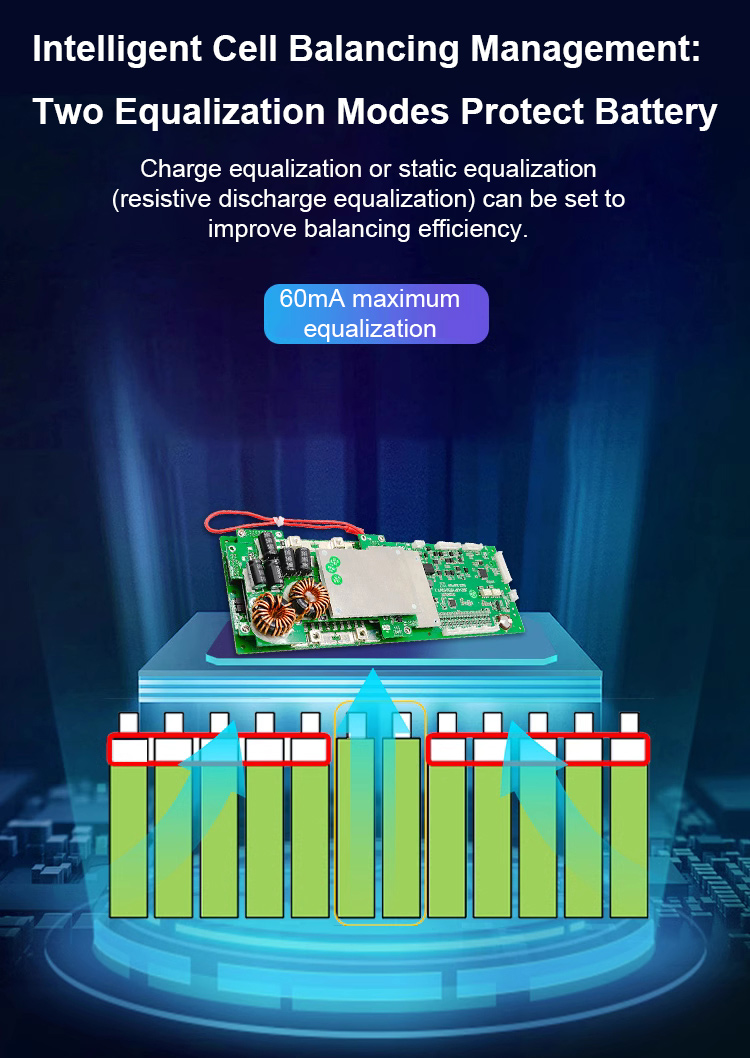

- Intelligent cell balancing management: Two equalization modes take good care of your battery. Charge equalization or static equalization (resistive discharge equalization) can be set to improve balancing efficiency. The maximum equalization is 60mA
- The switch goes into shutdown mode for ultra-low standby power consumption
- Double-sided aluminum alloy heat sink for safety protection (reserved positioning hole)
- Components are brushed with conformal coating - UV glue. Dustproof, moisture-proof, leakage-proof
- Accurate real-time clock: Records charge, discharge and protection information
- Compatible with major brands: It can be used for Goodwe, Pylontech, Deye, Must, Victorl, TBB Power, Victron Energy, etc. It can be used directly for inverter communication
- Applications: Power lithium battery, energy storage lithium battery, etc. Home energy storage, inverters and industrial equipment backup
- Host computer monitors the usage status of battery: Support Simplified Chinese/Traditional Chinese/English. If you want to adjust the parameters of the protection board, read the parameters inside the protection board before changing the parameters. When the parameters are changed, click Writing

Adjustable Parameters:
Conventional parameters of lithium iron phosphate battery (modifiable):
Overcharge Protection:
- Detection voltage: 3.65V±0.03V
- Detection delay: 2000ms
- Cancellation: 3.380V±0.01V

Over-discharge Protection:
- Detection voltage: 2.70V±0.1V
- Detection delay: 2000ms
- Cancellation: 2.95V±0.01V

Over-current Protection:
- Detection delay: 500ms
- Cancellation condition: Disconnect load/charge activation

Voltage Equalization:
- Detection voltage: 3.50V
- Equalization current: 60mA

Short Circuit Protection:
- Trigger condition: Short circuit of external load
- Detection delay: 300us
- Lifting Condition: Disconnect load/charge activation

Temperature Control Protection:
- Discharge over-temperature protection: 65°C±3°C
- Cancellation: 55°C

Self-consumption:
- Operating power consumption: ≤40mA
- Sleep power consumption: ≤0.4mmA

Product Information:
- Model: JBD-UP16S010
- Item name: Lithium battery protection board
- Dimensions: 300 x 100 x 35mm/11.8 x 3.9 x 1.4"
- Applicable products: Ternary or lithium iron battery
- Cell voltage: 3.2/3.7V
- Features: Good heat dissipation and cost effective

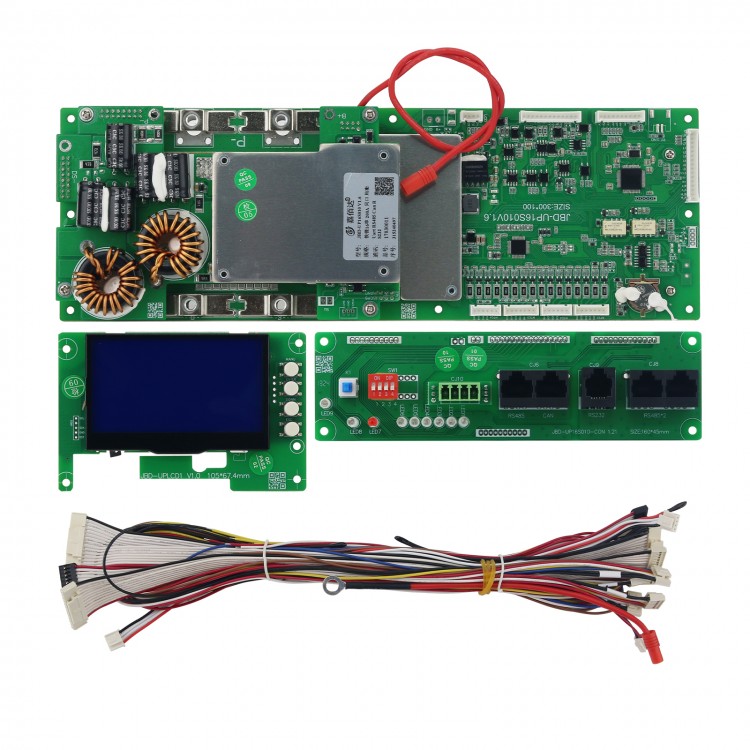

Package Included:
- 1 x Battery protection board
- 1 x Adapter board
- 1 x Screen

Note:
- Battery is not included.

Packaging Details:
- G.W.: 0.9kg
