16W Twinkle Fiber Optic Light 12V Starry Car Roof Light LED RGBW Ceiling Lamp with 450pcs 3M Cable
Specification:
Remote control: 28-button remote control
Working temperature: -20℃ to 50℃
LED lamp life: 50000 hours
Shell material: aluminum
Warranty: 2 years
Host size: length: 110mm; width: 110mm; height: 83mm
Light engine weight: 0.84kg
Coupling head aperture: 20mm (can mount 560pcs 0.75mm fibers, or 314pcs 1.0mm fibers, or 139pcs 1.5mm fibers)
Color effect: 14 static colors, 6 jump modes, can adjust the brightness of static light, whether to turn the color wheel dial to control the speed of the color wheel dial
Features:
1. The built-in irregular round hole turntable makes the light received by the optical fiber uneven, part of the fiber is bright and part of the fiber is dark, and the light is flickered in turn, which is closer to the effect of the night sky.
2. RGBW four lamp beads, high brightness, low energy consumption/eco-friendly, different from RGB lamp beads, especially with pure white light and mixed white light two colors, the color is richer.
3. The built-in large area radiator design has stronger heat dissipation effect and prolongs the service life of parts.
4. The all-glass fiber circuit board has the advantages of resistance, heat resistance, and no harmful asbestos components. It is safer and more reliable, and the cost is higher (general LED light sources generally use half-glass fiber board circuit boards or cardboard circuit boards).
5. The large area lamp bead circuit board dissipates heat faster and safer, extending the life of the lamp bead.
Installation Steps:
1. Remove the car roof
2. Draw points and drill holes
3. Insert optical fiber cable
4. Fix the fiber cable
5. Straighten the fiber cable
6. Stick sponge or isolation iron sheet
7. Trim the fiber cable
8. Electrify power and install the car roof

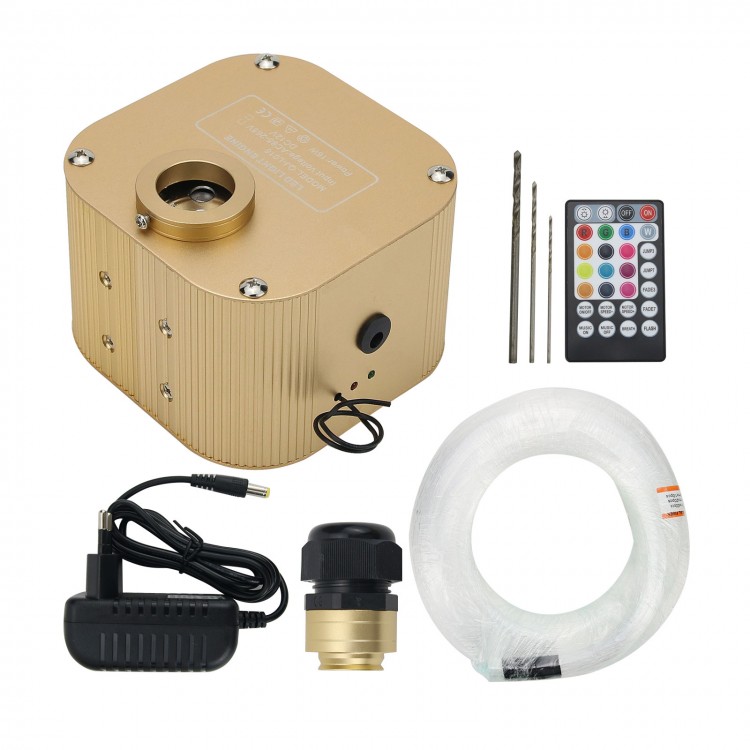

Package List:
-1 x 16W Light Source Engine
-1 x 28-Button Remote Control
-420 x 0.75mm*3mm Fiber Cable
-20 x 1mm*3mm Fiber Cable
-10 x 1.5mm*3mm Fiber Cable
Note:
-The LED light source engine is DC 12V.
-It is forbidden to directly use 220V power supply to test whether the machine is available.
