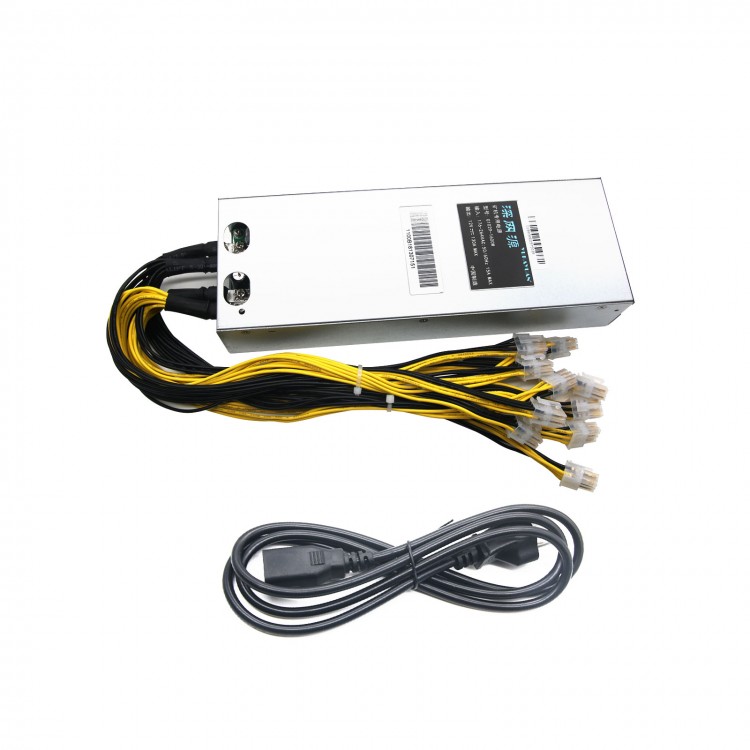

Specifications:
1. Output:
- DC Voltage: 12V
- Current: 130A
- Rated Power: 1600W
- Load Regulation rate: <=2%
- Linear Regulation rate: <=1%
- Power off Protection Trip Time: >=10mS
- Output ripple and noise: <=180mVp-p (Limit bandwidth of 20MHz)
- On/Off machine overshoot: <=-+5%
- Rising time: <=100ms
- Starting time: <=3S
- Output load dynamic response: over adjustment<-+5%;
- Dynamic response time: <200us.(REF)
2. Input:
- Voltage Range: 176-264V
- Frequency: 50/60Hz
- Max. Current: 15A
3. Protection:
- Input Low-voltage protection point: <180V
- Input Low-voltage recovering point: <185V
- Output Short Circuit: Yes
- Output Overcurrent: Yes(130-160A)
- Input Overtemperature Protection: Yes
4. Environment Conditions:
- Operating Temperature: -40~50 ºC
- Storage Temperature: -40~85ºC
- Operating Humidity: 5%~95% relative humidity (non-condensing)
- Storage Humidity: 0~95% (non-condensing)
- Altitude: <=5000m
- Cooling: Forced-air cooling
5. Others: With 5 pairs of 6-pin PCI-E power connectors, 10 in total.
